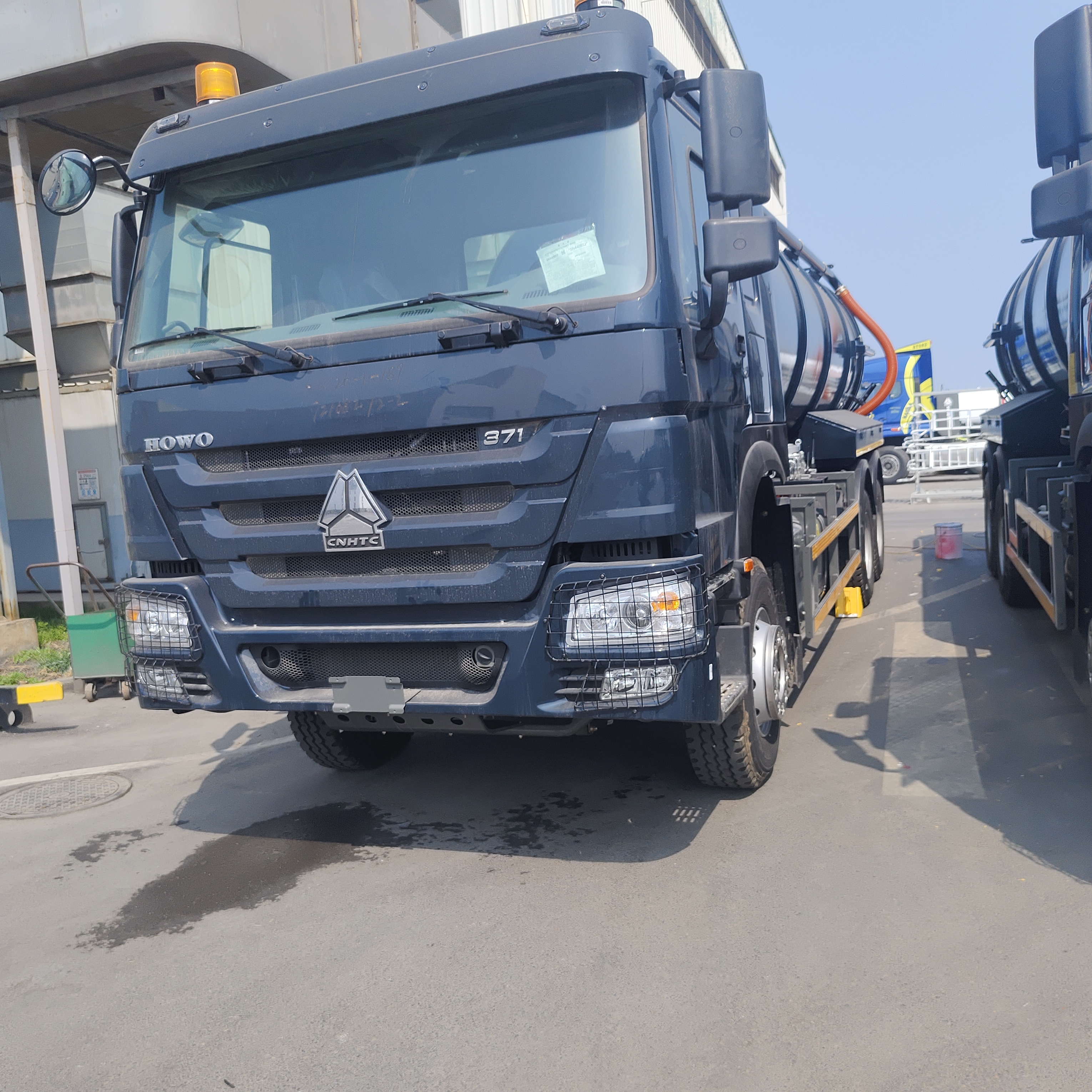

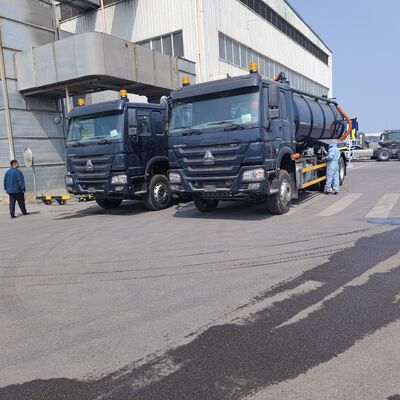

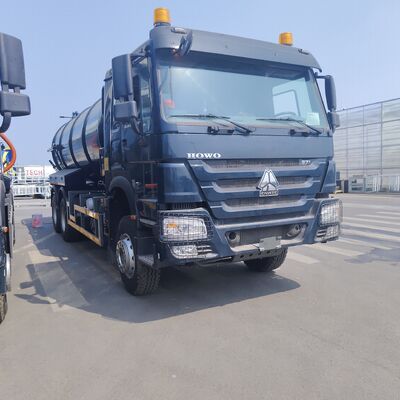

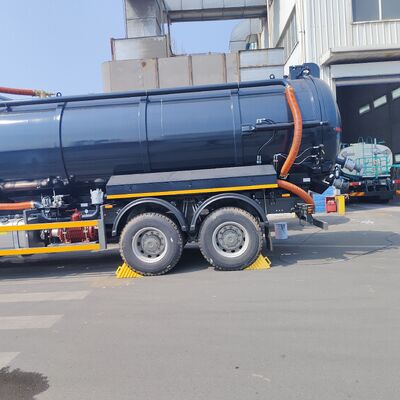

HOWO 15CBM Vacuum Sewage Suction Truck with 371hp Horsepower and 6×4 Drive Wheel for Industrial Waste Cleaning

Product Name: HOWO 15CBM Vacuum Sewage Suction Truck

Vehicle Type: Vacuum Suction Truck / Septic Tank Cleaner

Application Scope:

• Municipal sewage cleaning
• Septic tank emptying
• Construction site sludge removal
• Industrial liquid waste suction
• Drainage and pipeline maintenance

• Brand: SINOTRUK HOWO
• Drive Type: 4×2 / 6×4
• Cabin: HW76 cab, single sleeper, with air conditioner
• Engine Model: WD615 / WP10
• Horsepower: 266HP / 290HP / 336HP
• Fuel Tank Capacity: 300L
• Gearbox: HW19710, 10 forward + 2 reverse
• Max Speed: 90 km/h
• Braking System: Air brake + exhaust brake
• Electrical System: 24V standard system

• Volume: 15CBM (15,000 liters)
• Tank Material: Q235 carbon steel
• Thickness: Tank body: 6mm, Tank head: 8mm
• Tank Design: Cylindrical with internal reinforcement rings
• Welding Technology: Automatic submerged arc welding
• Anti-Corrosion: Internal anti-rust coating, optional epoxy anti-corrosion layer
• Rear Door: Hydraulic full-opening design
• Sealing System: Double-layer sealing to prevent leakage

• Pump Type: Water circulation vacuum pump
• Optional Pump: Italian brand high-performance pump
• Max Vacuum Degree: ≥ -0.09 MPa
• Air Flow Capacity: ≥ 300 m³/h
• Suction Depth: ≥ 7 meters
• Full Tank Time: ≤ 5 minutes
• Drive Method: PTO (Power Take-Off) driven
• Cooling Method: Water circulation cooling system

• Suction Pipe Diameter: 100-150 mm
• Standard Hose Length: 6-8 meters
• Pipe Material: Wear-resistant rubber hose
• Primary Filter: Prevents large debris entering tank
• Secondary Filter: Protects vacuum pump
• Oil-Gas Separator: Reduces oil contamination
• Water-Gas Separator: Protects internal system

• Discharge Methods: Hydraulic lifting discharge, Pressure discharge via pump
• Hydraulic System: Independent hydraulic circuit
• Control Method: Manual lever + pneumatic control
• Operation Position: Side + rear control panels
• Dumping Angle: ≥ 45°

• Anti-overflow protection device (automatic stop when full)
• Explosion-proof valve (optional)
• Vacuum pressure safety valve
• Emergency stop function
• Anti-backflow design
• Tank pressure monitoring system

• Stainless steel tank (for corrosive chemical waste)
• High-pressure water jet system (combined suction + cleaning)
• Remote control operation system
• Hose reel (manual or hydraulic)
• Double vacuum pump system (heavy-duty projects)
• Flow meter system (for project billing)
• Rear camera system
• Imported sealing system (longer service life)

• Delivery Time: 25-35 working days
• Transport Method: RORO / Bulk cargo / Container (disassembled)
• Port of Loading: China main ports
