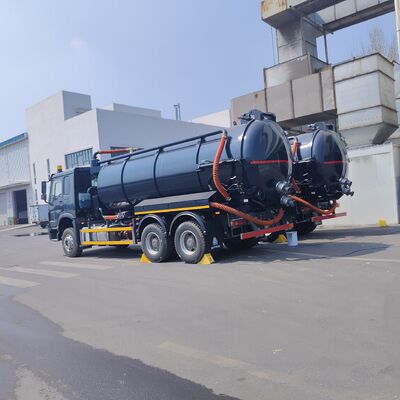

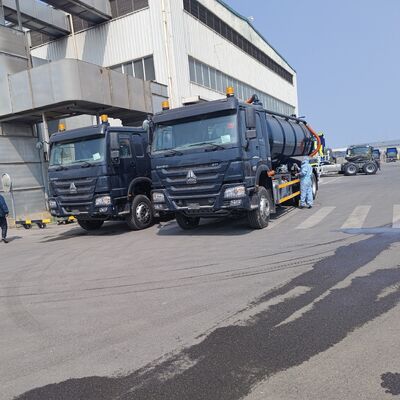

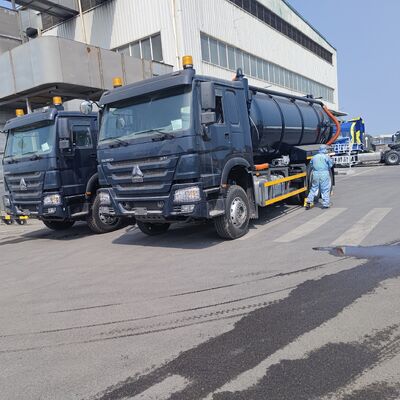

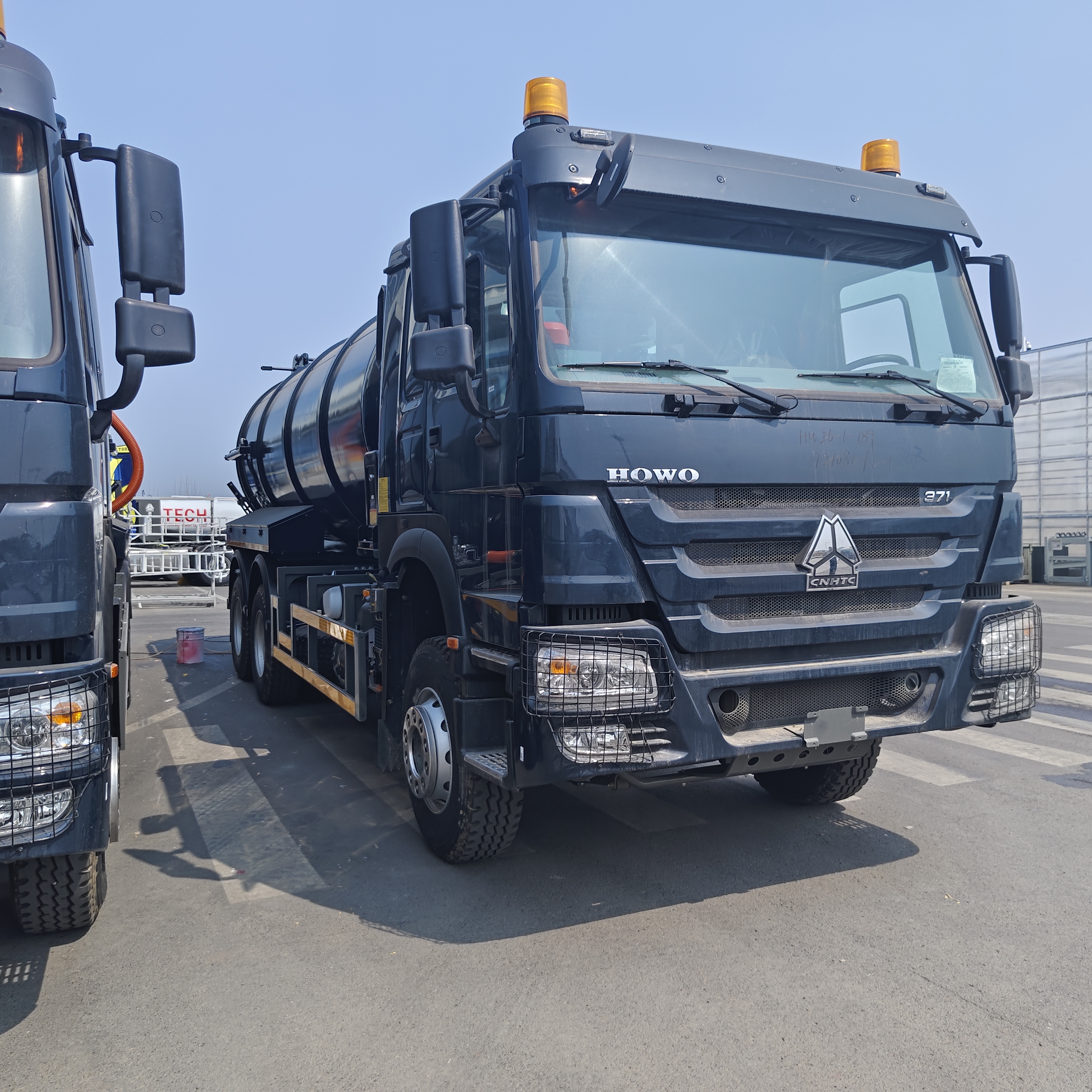

HOWO 15CBM Vacuum Sewage Suction Truck with 6*4 Drive Wheel and Diesel Fuel for Septic Tank Cleaning and Sludge Transport

HOWO 15CBM Vacuum Sewage Suction Truck with 6*4 Drive Wheel and Diesel Fuel for Septic Tank Cleaning and Sludge Transport

  • HOWO 15CBM Vacuum Sewage Suction Truck with 6*4 Drive Wheel and Diesel Fuel for Septic Tank Cleaning and Sludge Transport
  • HOWO 15CBM Vacuum Sewage Suction Truck with 6*4 Drive Wheel and Diesel Fuel for Septic Tank Cleaning and Sludge Transport
  • HOWO 15CBM Vacuum Sewage Suction Truck with 6*4 Drive Wheel and Diesel Fuel for Septic Tank Cleaning and Sludge Transport
  • HOWO 15CBM Vacuum Sewage Suction Truck with 6*4 Drive Wheel and Diesel Fuel for Septic Tank Cleaning and Sludge Transport
HOWO 15CBM Vacuum Sewage Suction Truck with 6*4 Drive Wheel and Diesel Fuel for Septic Tank Cleaning and Sludge Transport
Product Details:
Place of Origin: CHINA
Brand Name: HOWO
Certification: ISO
Model Number: HOWO-7
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiate
Packaging Details: nude
Delivery Time: 40 worker days
Payment Terms: L/C,T/T
Supply Ability: 300 units/mouth
Contact Now
Detailed Product Description
Product Name: 6*4 HOWO 15CBM Sewage Suction Truck Fuel: Diesel
Tank Volume: 15000L Drive Wheel: 6*4
Hoesrpower: 251-350hp Condition: New
Specification: 10010*2500*3150mm Trademark: Evangel

HOWO 15CBM Vacuum Sewage Suction Truck for Ghana Septic Tank Cleaning Drainage and Sludge Transport
Product Attributes
  • Product Name: HOWO 15CBM Vacuum Sewage Suction Truck
  • Vehicle Type: Vacuum Tanker / Septic Tank Cleaner
  • Application: Septic tank cleaning, drainage maintenance, sludge suction, industrial liquid waste transport
Chassis Specifications
  • Brand: SINOTRUK HOWO
  • Drive Type: 4×2 / 6×4
  • Cabin: HW76 with air conditioner
  • Engine Model: WD615 / WP10
  • Horsepower: 266HP / 290HP / 336HP
  • Fuel Type: Diesel
  • Emission Standard: Euro II
  • Gearbox: 10 forward + 2 reverse
  • Fuel Tank Capacity: 300L
Dimensions & Capacity
  • Overall Dimension: approx. 8500 × 2500 × 3200 mm
  • Wheelbase: 4600 / 5600 mm
  • Tank Capacity: 15CBM (15,000 liters)
  • GVW: 18,000 - 25,000 kg
  • Payload: 12,000 - 15,000 kg
Tank System
  • Material: Q235 carbon steel
  • Thickness: 6mm (body) + 8mm (head)
  • Structure: Cylindrical with reinforcement rings
  • Rear Door: Hydraulic full-opening
  • Sealing: Double leak-proof sealing system
  • Anti-Corrosion: Internal coating, epoxy optional
Vacuum System
  • Pump Type: Water circulation vacuum pump
  • Optional Pump: Italian brand
  • Max Vacuum Degree: ≥ -0.09 MPa
  • Air Flow Capacity: ≥ 300 m³/h
  • Suction Depth: ≥ 7 meters
  • Full Tank Time: ≤ 5 minutes
  • Drive Mode: PTO driven
Pipeline & Filtration
  • Suction Hose Diameter: 100-150 mm
  • Hose Length: 6-8 meters (extendable)
  • Filtration: Double filter system
  • Separator: Oil-gas + water-gas separator
  • Design: Anti-blocking pipeline system
Discharge System
  • Hydraulic tipping discharge
  • Pressure discharge via vacuum pump
  • Dumping Angle: ≥ 45°
Hydraulic & PTO System
  • Hydraulic Pressure: 16-20 MPa
  • Hydraulic Oil Tank: 120-150 L
  • Lifting Time: ≤ 60 seconds
  • PTO Type: Gearbox mounted
Axle & Suspension
  • Front Axle: 7-9 tons
  • Rear Axle: 13-16 tons
  • Suspension: Reinforced leaf spring
  • Chassis: Heavy-duty frame
Tyres
  • Size: 12.00R20 / 315/80R22.5
  • Quantity: 6+1 (4×2) / 10+1 (6×4)
Performance
  • Working Time: ≥ 8 hours/day
  • Suction Efficiency: ≥ 95%
  • Daily Capacity: 8-12 tanks
  • Fuel Consumption: 18-25L/100km
Safety System
  • Anti-overflow protection
  • Pressure safety valve
  • Emergency pressure release
  • Anti-backflow system
Adaptability (Ghana Market)
  • Suitable for high temperature environment
  • Compatible with local diesel quality
  • Suitable for urban and construction roads
  • Easy maintenance with local workshops
  • Spare parts widely available
Optional Configurations
  • Italian vacuum pump
  • Stainless steel tank
  • Hose reel system
  • Remote control operation
  • Double pump system
  • High-pressure jetting system (combined truck)
Packaging & Delivery
  • Delivery Time: 25-35 working days
  • Shipping Method: RORO / Bulk / Container
  • Destination Port: Tema Port, Ghana
