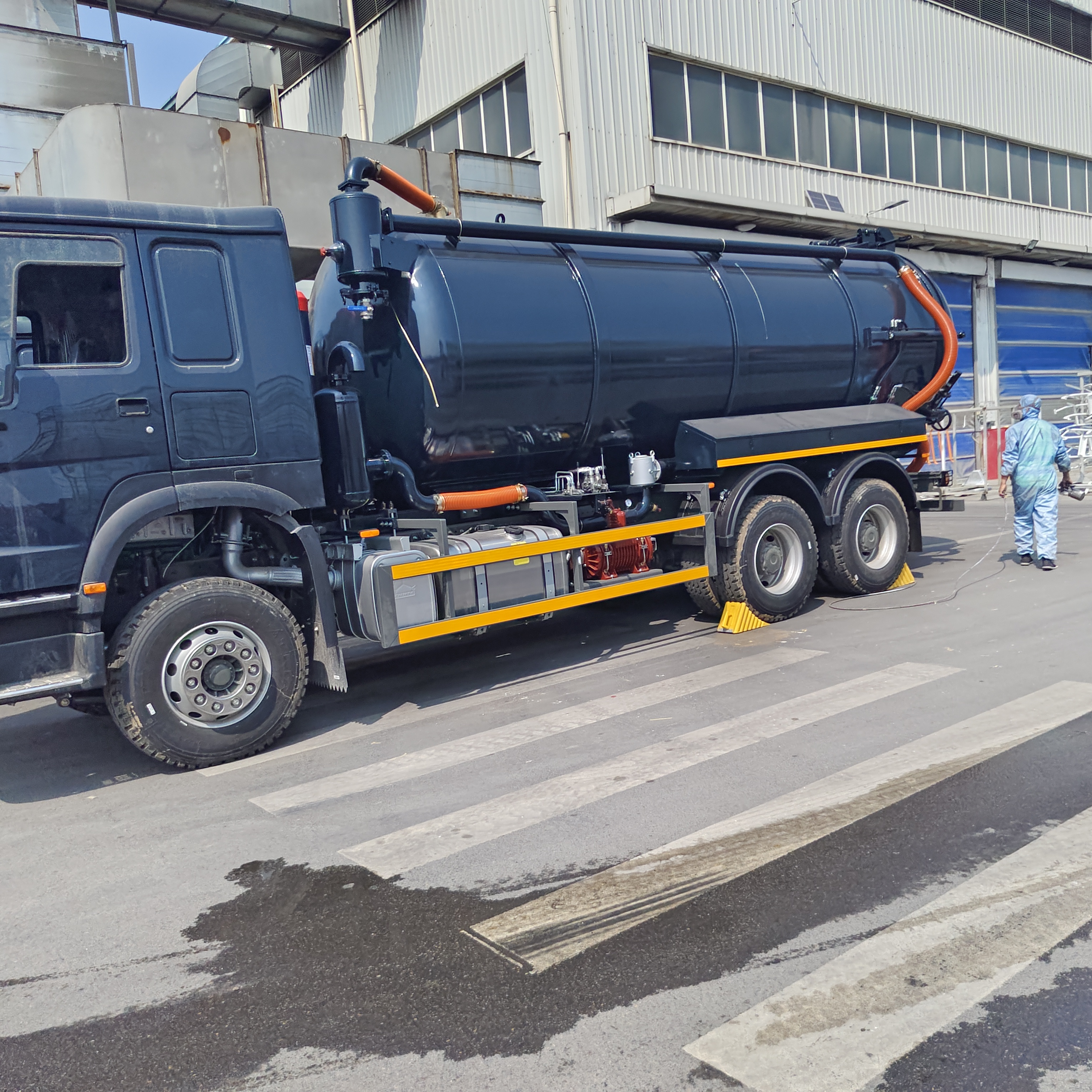

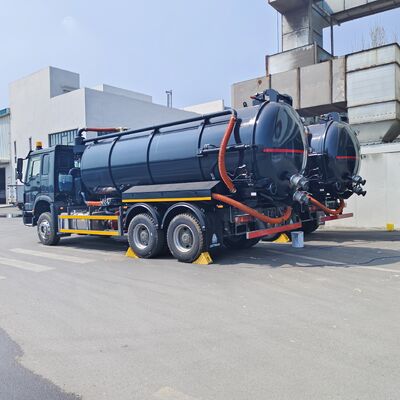

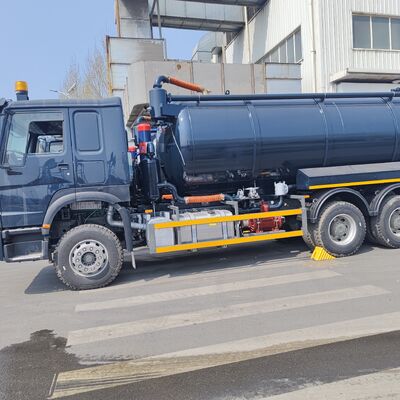

HOWO 15CBM Vacuum Sewage Suction Truck with 6*4 Drive Wheel and Hydraulic Tipping Discharge for Septic Tank Cleaning

Professional vacuum sewage suction truck designed for septic tank emptying, municipal sewage cleaning, drainage maintenance, construction sludge suction, and industrial liquid waste transport operations.

• Brand: SINOTRUK HOWO
• Drive Type: 4×2 / 6×4
• Cabin: HW76 with air conditioner
• Engine Model: WD615 / WP10 series
• Horsepower: 266HP / 290HP / 336HP
• Fuel Type: Diesel
• Emission Standard: Euro II (suitable for Ghana fuel condition)
• Gearbox: HW19710, 10 forward + 2 reverse
• Fuel Tank Capacity: 300L
• Steering: Hydraulic power steering

• Overall Dimension: approx. 8500 × 2500 × 3200 mm
• Wheelbase: 4600 / 5600 mm
• Tank Capacity: 15CBM (15,000 liters)
• GVW: 18,000 - 25,000 kg
• Payload Capacity: 12,000 - 15,000 kg

• Material: Q235 carbon steel
• Thickness: 6mm (tank body) + 8mm (head)
• Structure: Cylindrical tank with internal reinforcement rings
• Manufacturing Process: Automatic welding technology
• Rear Door: Hydraulic full-opening type
• Sealing: High-density rubber double sealing system
• Anti-Corrosion Treatment: Internal anti-rust coating (optional epoxy lining)

• Pump Type: Water circulation vacuum pump
• Optional Pump: Italian brand vacuum pump
• Max Vacuum Degree: ≥ -0.09 MPa
• Air Flow Capacity: ≥ 300 m³/h
• Suction Depth: ≥ 7 meters
• Working Efficiency: High suction efficiency for sludge and liquid waste
• Drive Method: PTO driven

• Suction Hose Diameter: 100-150 mm
• Hose Length: 6-8 meters (extendable optional)
• Pipeline Material: Wear-resistant rubber hose
• Filtration System: Double filtration (primary + secondary)
• Separator System: Oil-gas separator + water-gas separator
• Anti-clogging design for sludge and sand mixture

• Working Time: ≥ 8 hours continuous operation
• Suction Efficiency: ≥ 95%
• Daily Working Capacity: 8-12 tanks
• Fuel Consumption: 18-25L/100km (depending on load and road condition)

• Anti-overflow automatic protection system
• Vacuum pressure safety valve
• Emergency pressure release system
• Anti-backflow protection system
• Real-time pressure monitoring gauge

• Suitable for high temperature and humid environment
• Compatible with local diesel quality
• Suitable for urban roads and construction sites
• Easy maintenance with local workshop support
• Widely available HOWO spare parts in Ghana market

• Italian vacuum pump upgrade
• Stainless steel tank for corrosive waste
• Hose reel system (manual or hydraulic)
• Remote control operation system
• Double vacuum pump system
• High-pressure jetting system (combined suction + cleaning)

• Production Time: 25-35 working days
• Shipping Method: RORO / Bulk / Container (CKD optional)
• Destination Port: Tema Port, Ghana
