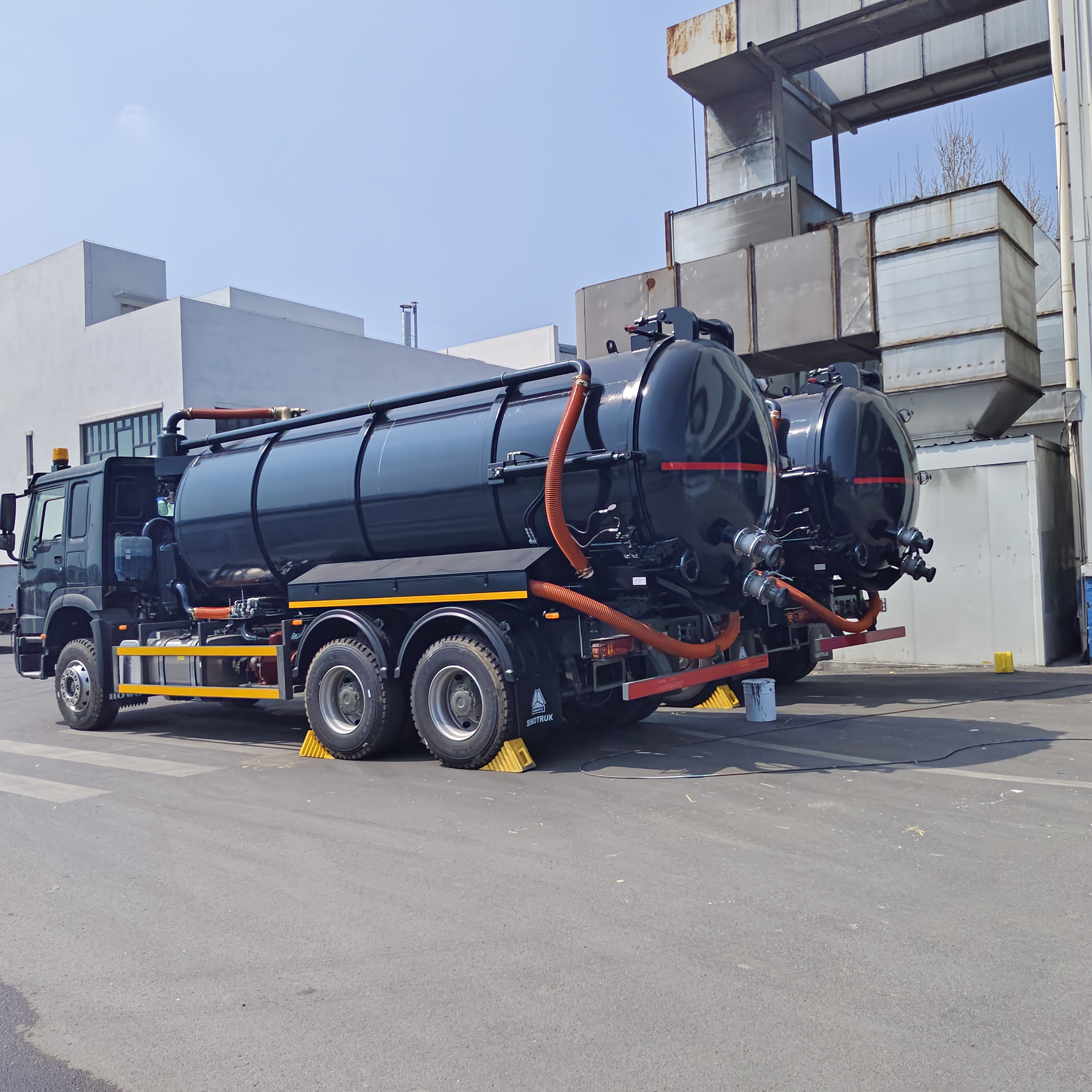

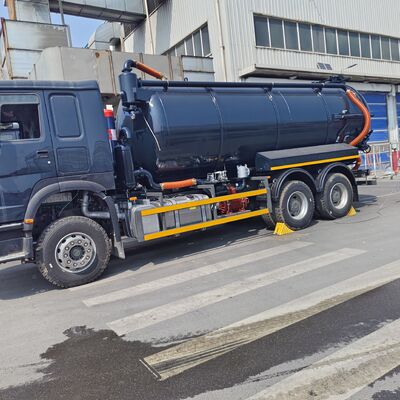

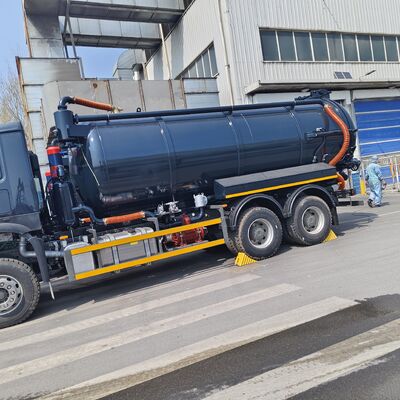

HOWO 15CBM Vacuum Sewage Suction Truck with 6*4 Drive Wheel and Diesel Fuel for Septic Tank Cleaning and Sludge Transport

HOWO 15CBM Vacuum Sewage Suction Truck with 6*4 Drive Wheel and Diesel Fuel for Septic Tank Cleaning and Sludge Transport

  • HOWO 15CBM Vacuum Sewage Suction Truck with 6*4 Drive Wheel and Diesel Fuel for Septic Tank Cleaning and Sludge Transport
  • HOWO 15CBM Vacuum Sewage Suction Truck with 6*4 Drive Wheel and Diesel Fuel for Septic Tank Cleaning and Sludge Transport
  • HOWO 15CBM Vacuum Sewage Suction Truck with 6*4 Drive Wheel and Diesel Fuel for Septic Tank Cleaning and Sludge Transport
  • HOWO 15CBM Vacuum Sewage Suction Truck with 6*4 Drive Wheel and Diesel Fuel for Septic Tank Cleaning and Sludge Transport
HOWO 15CBM Vacuum Sewage Suction Truck with 6*4 Drive Wheel and Diesel Fuel for Septic Tank Cleaning and Sludge Transport
Product Details:
Place of Origin: CHINA
Brand Name: HOWO
Certification: ISO
Model Number: HOWO-7
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiate
Packaging Details: nude
Delivery Time: 40 worker days
Payment Terms: L/C,T/T
Supply Ability: 300 units/mouth
Contact Now
Detailed Product Description
Product Name: 6*4 HOWO 15CBM Sewage Suction Truck Fuel: Diesel
Tank Volume: 15000L Drive Wheel: 6*4
Hoesrpower: 251-350hp Condition: New
Specification: 10010*2500*3150mm Trademark: Evangel

HOWO 15CBM Vacuum Sewage Suction Truck for Guinea Septic Tank Cleaning Drainage and Sludge Transport Operations
Product Attributes

Product Name: HOWO 15CBM Vacuum Sewage Suction Truck

Vehicle Type: Vacuum Sewage Truck / Septic Tank Cleaner

Application: Septic tank emptying, municipal sewage cleaning, urban drainage maintenance, construction sludge suction, industrial liquid waste transport

Chassis Specifications
  • Brand: SINOTRUK HOWO
  • Drive Type: 4×2 / 6×4
  • Cabin: HW76 with air conditioner
  • Engine Model: WD615 / WP10 series
  • Horsepower: 266HP / 290HP / 336HP
  • Fuel Type: Diesel
  • Emission Standard: Euro II (suitable for Africa fuel conditions)
  • Gearbox: HW19710, 10 forward + 2 reverse
  • Fuel Tank Capacity: 300L
  • Steering: Hydraulic power steering
Dimensions & Capacity
  • Overall Dimension: approx. 8500 × 2500 × 3200 mm
  • Wheelbase: 4600 / 5600 mm
  • Tank Capacity: 15CBM (15,000 liters)
  • GVW: 18,000 - 25,000 kg
  • Payload Capacity: 12,000 - 15,000 kg
Tank System
  • Material: Q235 carbon steel
  • Thickness: 6mm body + 8mm head
  • Structure: Cylindrical tank with reinforcement rings
  • Manufacturing: Automatic welding process
  • Rear Door: Hydraulic full-opening type
  • Sealing System: Double-layer rubber sealing for leak prevention
  • Anti-Corrosion: Internal anti-rust coating (epoxy optional for harsh waste)
Vacuum System
  • Pump Type: Water circulation vacuum pump
  • Optional Pump: Italian high-efficiency vacuum pump
  • Max Vacuum Degree: ≥ -0.09 MPa
  • Air Flow Capacity: ≥ 300 m³/h
  • Suction Depth: ≥ 7 meters
  • Drive Mode: PTO driven system
  • Performance: Strong suction for sludge, sewage, and mixed waste
Pipeline System
  • Suction Hose Diameter: 100-150 mm
  • Hose Length: 6-8 meters (extendable optional)
  • Pipeline Material: Heavy-duty wear-resistant rubber hose
  • Filtration System: Double-stage filtration protection
  • Separator System: Oil-gas separator + water-gas separator
  • Anti-blocking design for sand, mud, and solid waste mixture
Discharge System
  • Discharge Type: Hydraulic tipping + pressure discharge
  • Dumping Angle: ≥ 45°
  • Rear Door: Hydraulic automatic opening
  • Operation: Fast unloading for high working efficiency
Hydraulic System
  • Working Pressure: 16-20 MPa
  • Hydraulic Oil Tank Capacity: 120-150 L
  • Lifting Time: ≤ 60 seconds
  • System Type: Independent hydraulic control system
PTO System
  • Type: Gearbox mounted PTO
  • Control: Mechanical / pneumatic operation
  • Feature: Stable power output for continuous vacuum working
Axle & Suspension
  • Front Axle: 7-9 tons
  • Rear Axle: 13-16 tons
  • Suspension: Heavy-duty reinforced leaf spring
  • Frame: Double-layer strengthened chassis frame
Tyres
  • Size: 12.00R20 / 315/80R22.5
  • Configuration: 6+1 spare (4×2) / 10+1 spare (6×4)
Performance
  • Working Time: ≥ 8 hours continuous operation
  • Suction Efficiency: ≥ 95%
  • Daily Capacity: 8-12 tanks
  • Fuel Consumption: 18-25L/100km
Safety System
  • Anti-overflow automatic protection system
  • Vacuum pressure relief valve
  • Emergency pressure release system
  • Anti-backflow protection system
  • Real-time pressure monitoring gauge
Adaptability (Guinea Market)
  • Suitable for tropical climate with high humidity and rainfall
  • Reliable performance on muddy, unpaved and mining roads
  • Compatible with local diesel quality
  • Easy maintenance with simple mechanical structure
  • Widely available HOWO spare parts in West Africa
Optional Configurations
  • Italian vacuum pump upgrade
  • Stainless steel tank for corrosive waste
  • Hose reel system
  • Remote control operation system
  • Double pump system for heavy-duty projects
  • High-pressure jetting system (combined suction + cleaning)
Packaging & Delivery
  • Production Time: 25-35 working days
  • Shipping Method: RORO / Bulk / Container (CKD optional)
  • Destination Port: Conakry Port, Guinea
HOWO 15CBM Vacuum Sewage Suction Truck with 6*4 Drive Wheel and Diesel Fuel for Septic Tank Cleaning and Sludge Transport 0
