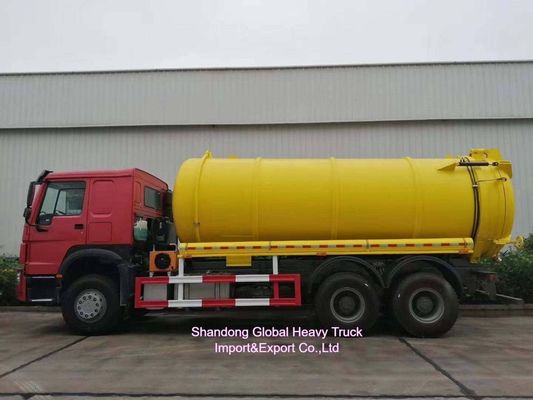

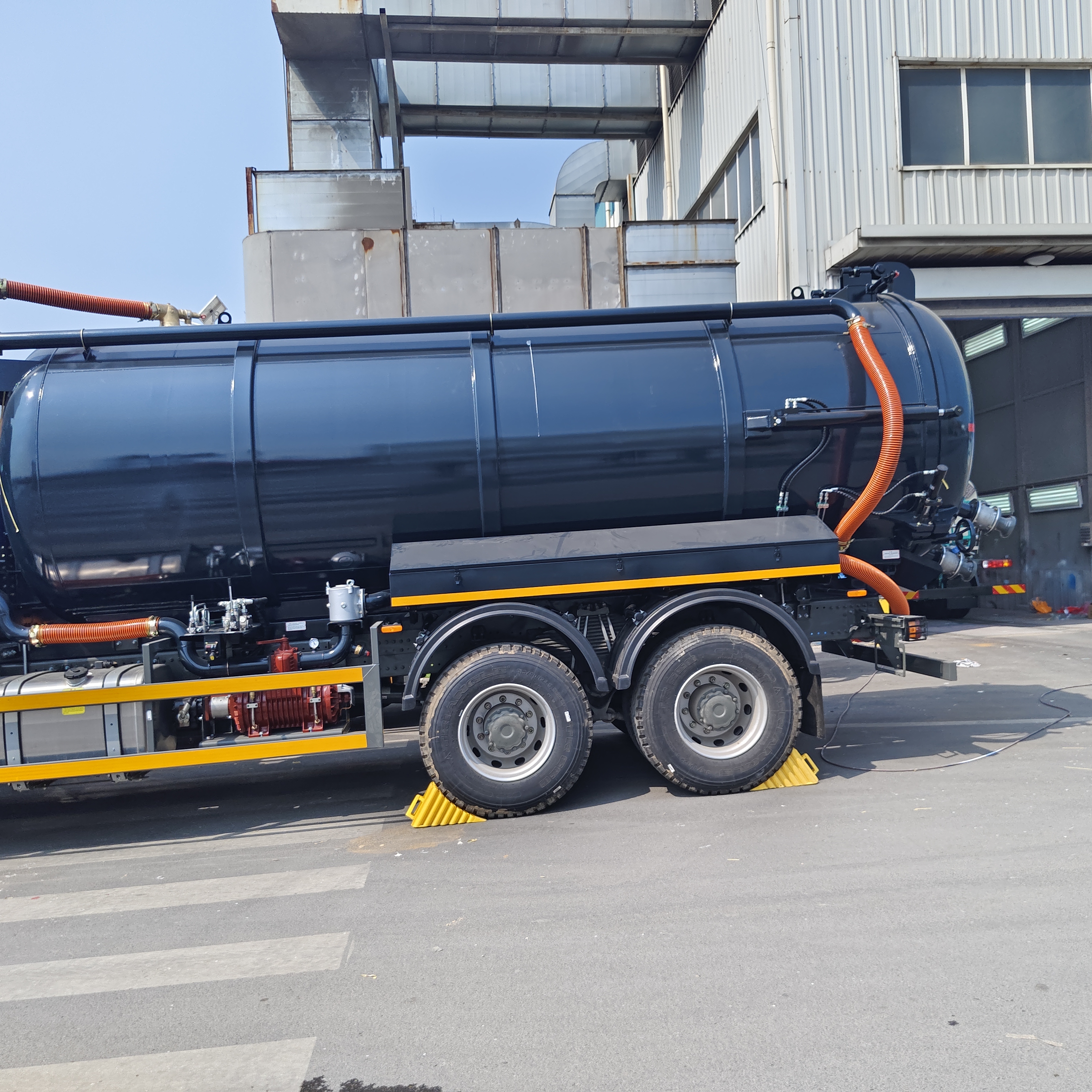

HOWO 15CBM Vacuum Sewage Suction Truck with 6×4 Drive Type and Hydraulic Tipping Discharge for Septic Tank Cleaning

HOWO 15CBM Vacuum Sewage Suction Truck with 6×4 Drive Type and Hydraulic Tipping Discharge for Septic Tank Cleaning

  • HOWO 15CBM Vacuum Sewage Suction Truck with 6×4 Drive Type and Hydraulic Tipping Discharge for Septic Tank Cleaning
  • HOWO 15CBM Vacuum Sewage Suction Truck with 6×4 Drive Type and Hydraulic Tipping Discharge for Septic Tank Cleaning
  • HOWO 15CBM Vacuum Sewage Suction Truck with 6×4 Drive Type and Hydraulic Tipping Discharge for Septic Tank Cleaning
  • HOWO 15CBM Vacuum Sewage Suction Truck with 6×4 Drive Type and Hydraulic Tipping Discharge for Septic Tank Cleaning
HOWO 15CBM Vacuum Sewage Suction Truck with 6×4 Drive Type and Hydraulic Tipping Discharge for Septic Tank Cleaning
Product Details:
Place of Origin: CHINA
Brand Name: HOWO
Certification: ISO
Model Number: HOWO-7
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiate
Packaging Details: nude
Delivery Time: 40 worker days
Payment Terms: L/C,T/T
Supply Ability: 300 units/mouth
Contact Now
Detailed Product Description
Product Name: 6*4 HOWO 15CBM Sewage Suction Truck Fuel: Diesel
Tank Volume: 15000L Drive Wheel: 6*4
Hoesrpower: 251-350hp Condition: New
Specification: 10010*2500*3150mm Trademark: Evangel

HOWO 15CBM Vacuum Sewage Suction Truck for Saudi Arabia Septic Tank Cleaning Municipal Drainage and Industrial Waste Management
Product Overview
Product Name
HOWO 15CBM Vacuum Sewage Suction Truck
Vehicle Type
Vacuum Sewage Truck / Septic Tank Cleaner
Application
Septic tank emptying, municipal sewage collection, urban drainage maintenance, industrial liquid waste suction and transport
Chassis Specifications
  • Brand: SINOTRUK HOWO
  • Drive Type: 4×2 / 6×4
  • Cabin: HW76 with air conditioner
  • Engine Model: WD615 / WP10 series
  • Horsepower: 266HP / 290HP / 336HP
  • Fuel Type: Diesel
  • Emission Standard: Euro III / Euro IV optional
  • Gearbox: HW19710, 10 forward + 2 reverse
  • Fuel Tank Capacity: 300L
  • Steering: Hydraulic power steering
Dimensions & Capacity
  • Overall Dimension: approx. 8500 × 2500 × 3200 mm
  • Wheelbase: 4600 / 5600 mm
  • Tank Capacity: 15CBM (15,000 liters)
  • GVW: 18,000 - 25,000 kg
  • Payload Capacity: 12,000 - 15,000 kg
Tank System
  • Material: Q235 carbon steel
  • Thickness: 6mm body + 8mm head
  • Structure: Cylindrical tank with reinforcement rings
  • Manufacturing: Automatic welding process
  • Rear Door: Hydraulic full-opening type
  • Sealing System: High-strength double rubber sealing
  • Anti-Corrosion: Internal anti-rust coating, epoxy optional for chemical waste
Vacuum System
  • Pump Type: Water circulation vacuum pump
  • Optional Pump: Italian high-performance vacuum pump
  • Max Vacuum Degree: ≥ -0.09 MPa
  • Air Flow Capacity: ≥ 300 m³/h
  • Suction Depth: ≥ 7 meters
  • Drive Mode: PTO driven
  • Performance: High efficiency for sludge, sewage and mixed liquid waste
Pipeline System
  • Suction Hose Diameter: 100-150 mm
  • Hose Length: 6-8 meters (extendable optional)
  • Pipeline Material: Heavy-duty wear-resistant rubber hose
  • Filtration System: Double filtration (primary + secondary protection)
  • Separator System: Oil-gas separator + water-gas separator
  • Anti-blocking design for sand and solid waste mixture
Discharge System
  • Discharge Type: Hydraulic tipping + pressure discharge
  • Dumping Angle: ≥ 45°
  • Rear Door: Hydraulic automatic opening system
  • Operation: Fast unloading for high-efficiency work cycles
Hydraulic System
  • Working Pressure: 16-20 MPa
  • Hydraulic Oil Tank Capacity: 120-150 L
  • Lifting Time: ≤ 60 seconds
  • System Type: Independent hydraulic control system
Performance & Safety
  • Working Time: ≥ 8 hours continuous operation
  • Suction Efficiency: ≥ 95%
  • Daily Capacity: 8-12 tanks
  • Fuel Consumption: 18-25L/100km
  • Anti-overflow automatic protection system
  • Vacuum pressure relief valve
  • Emergency pressure release system
  • Anti-backflow protection system
  • Real-time pressure monitoring gauge
Saudi Arabia Market Adaptability
  • Suitable for extreme hot desert climate conditions
  • Reliable operation under high temperature and sand environments
  • Compatible with local diesel fuel quality
  • Strong cooling system performance for long working hours
  • Suitable for municipal, construction, and oil-field related projects
  • Easy maintenance with simple mechanical structure
Optional Configurations
  • Italian vacuum pump upgrade
  • Stainless steel tank for corrosive or industrial waste
  • Hose reel system
  • Remote control operation system
  • Double pump system for heavy-duty applications
  • High-pressure jetting system (combined suction + cleaning truck)
Packaging & Delivery
  • Production Time: 25-35 working days
  • Shipping Method: RORO / Bulk / Container (CKD optional)
  • Destination Port: Jeddah / Dammam / Riyadh logistics entry points
HOWO 15CBM Vacuum Sewage Suction Truck with 6×4 Drive Type and Hydraulic Tipping Discharge for Septic Tank Cleaning 0 HOWO 15CBM Vacuum Sewage Suction Truck with 6×4 Drive Type and Hydraulic Tipping Discharge for Septic Tank Cleaning 1
