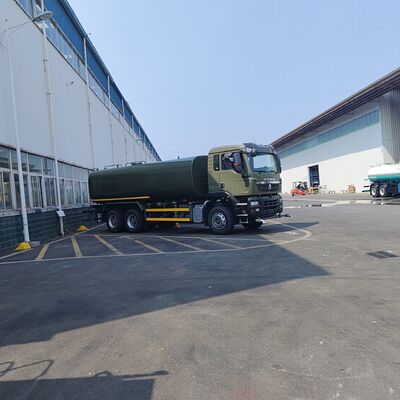

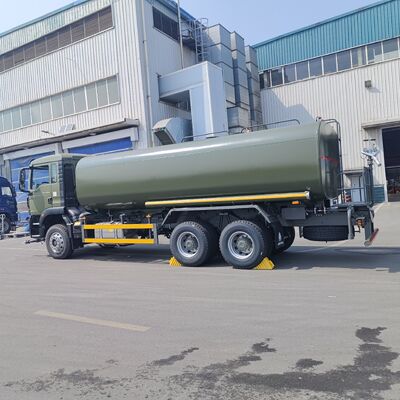

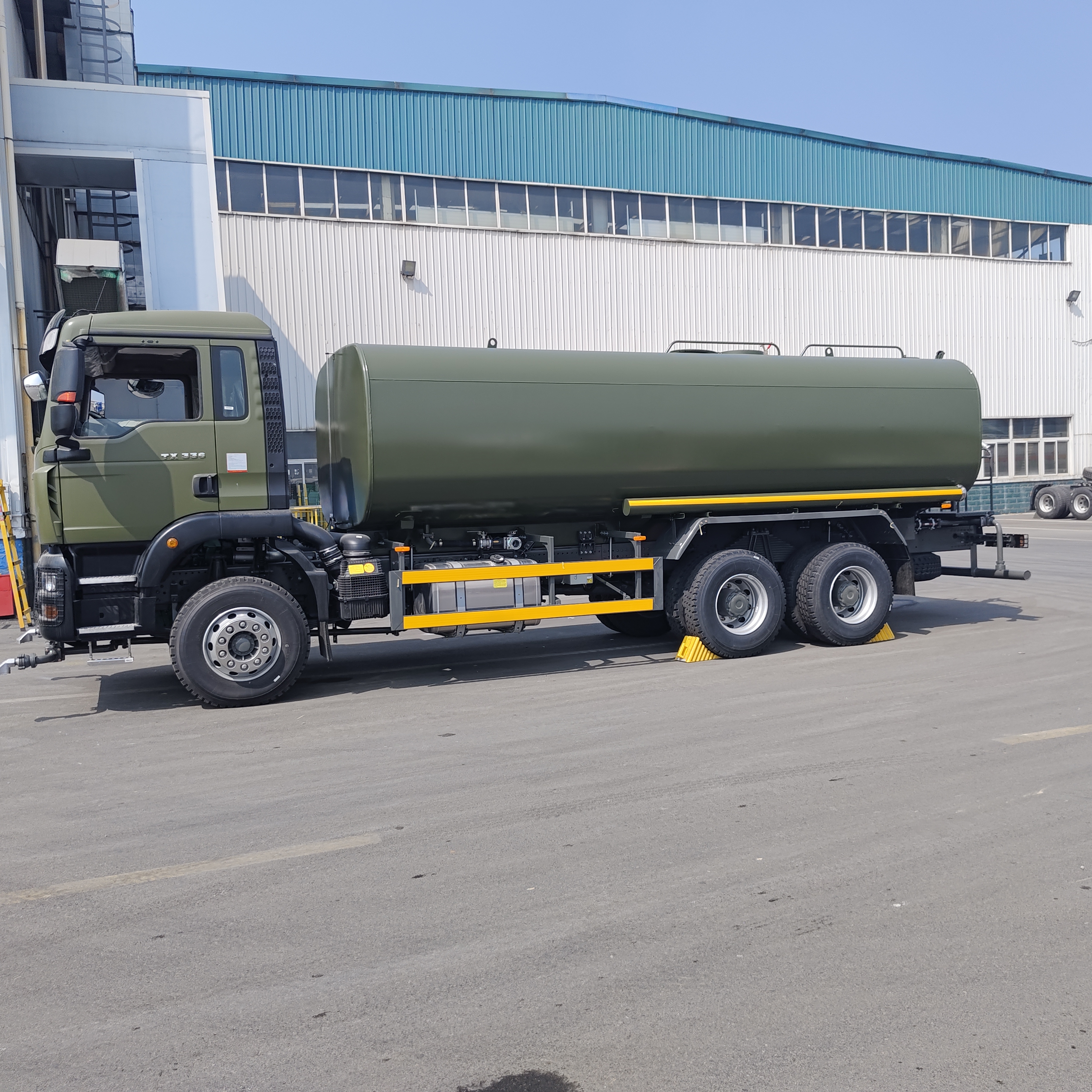

HOWO TX 6×4 Water Tank Truck with 15-20 CBM Capacity High-Pressure Centrifugal Water Pump and Reinforced Tank Body for Dust Suppression and Municipal Cleaning

HOWO TX 6×4 Water Tank Truck with 15-20 CBM Capacity High-Pressure Centrifugal Water Pump and Reinforced Tank Body for Dust Suppression and Municipal Cleaning

  • HOWO TX 6×4 Water Tank Truck with 15-20 CBM Capacity High-Pressure Centrifugal Water Pump and Reinforced Tank Body for Dust Suppression and Municipal Cleaning
  • HOWO TX 6×4 Water Tank Truck with 15-20 CBM Capacity High-Pressure Centrifugal Water Pump and Reinforced Tank Body for Dust Suppression and Municipal Cleaning
  • HOWO TX 6×4 Water Tank Truck with 15-20 CBM Capacity High-Pressure Centrifugal Water Pump and Reinforced Tank Body for Dust Suppression and Municipal Cleaning
  • HOWO TX 6×4 Water Tank Truck with 15-20 CBM Capacity High-Pressure Centrifugal Water Pump and Reinforced Tank Body for Dust Suppression and Municipal Cleaning
HOWO TX 6×4 Water Tank Truck with 15-20 CBM Capacity High-Pressure Centrifugal Water Pump and Reinforced Tank Body for Dust Suppression and Municipal Cleaning
Product Details:
Place of Origin: China
Brand Name: HOWO
Certification: ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
Model Number: HOWO TX
Payment & Shipping Terms:
Minimum Order Quantity: 1UNIT
Price: NEGOTIABLE
Packaging Details: Nude
Delivery Time: 40 worker days
Payment Terms: L/C,T/T
Supply Ability: 300 units/month
Contact Now
Detailed Product Description
Product Name: HOWO TX 15cbm Water Tanker Truck Emission Standard: Euro 2
Sprinkling Area: ＞16m Transmission Type: Manual
Payload: 20T Fuel: Diesel
Drive Wheel: 6×4 Steering Type: Left Hand Drive

HOWO TX 6×4 Water Tank Truck for Guinea Road Spraying Dust Suppression Irrigation Municipal Cleaning and Construction Use
Product Overview
Product Name: HOWO TX 6×4 Water Tank Truck
Vehicle Type: Water Tank Truck / Water Sprayer Truck
Application: Road dust suppression, construction site watering, municipal cleaning, landscaping irrigation, emergency water supply
Chassis Specifications
  • Brand: SINOTRUK HOWO TX
  • Drive Type: 6×4
  • Cabin: HOWO TX cab with air conditioner
  • Engine Model: Weichai WP10 / WP12 series
  • Horsepower: 340HP / 380HP / 420HP
  • Fuel Type: Diesel
  • Emission Standard: Euro II / Euro III (Africa specification)
  • Transmission: HW19710 / HW19712 manual gearbox
  • Steering: Hydraulic power steering
  • Fuel Tank Capacity: 400-600L aluminum alloy
Dimensions & Capacity
  • Overall Dimension: approx. 9000 × 2500 × 3300 mm
  • Wheelbase: 3800 + 1350 mm
  • Tank Capacity: 15-20 CBM (15,000-20,000 liters)
  • GVW: 25,000 - 31,000 kg
  • Payload: 15-20 tons
Tank System
  • Material: Q235 carbon steel / stainless steel optional
  • Thickness: 4-6 mm
  • Structure: Reinforced tank body with internal support
  • Anti-Corrosion: Internal anti-rust coating
  • Anti-wave plates: Installed for stability on rough roads
  • Manhole: Top-mounted with safety cover
  • Outlet: Bottom discharge valve system
Water Pump & Spraying System
  • Pump Type: High-pressure centrifugal water pump
  • Drive Mode: PTO driven
  • Front Spray: Road washing nozzles
  • Rear Spray: Wide-area sprinkler system
  • Side Spray: Dual-side nozzles
  • Water Cannon: Adjustable high-pressure spray (range ≥30m)
  • Control System: In-cabin + manual rear control
Pipeline System
  • Pipeline Material: Corrosion-resistant steel
  • Water Filling System: Fast inlet connection
  • Filtration System: Built-in filter for pump protection
  • Drain System: Quick discharge design
Chassis & Frame
  • Frame Type: Double-layer reinforced high-strength steel
  • Suspension: Heavy-duty leaf spring suspension
  • Front Axle: 7-9 tons
  • Rear Axle: 13-16 tons ×2
  • Structure: Suitable for rough, muddy and mining road conditions
Tyres
  • Tyre Size: 12.00R20 / 315/80R22.5
  • Configuration: 10+1 spare tyre
  • Type: Tubeless or tube optional
Performance
  • Spraying Modes: Front / rear / side / water cannon
  • Continuous Working Time: ≥ 8 hours/day
  • Water Flow Control: Adjustable according to operation needs
  • Working Efficiency: High coverage and stable spraying performance
Safety System
  • Anti-overflow protection system
  • Pressure relief valve
  • Emergency shut-off system
  • Tank anti-sway design
  • Safe and simple operation control system
Adaptability (Guinea Market)
  • Suitable for tropical climate with heavy rain and humidity
  • Reliable performance on muddy, unpaved, and mining roads
  • Ideal for construction, mining, and municipal projects
  • Compatible with local diesel fuel quality
  • Easy maintenance with HOWO spare parts available in West Africa
Optional Configurations
  • Stainless steel water tank
  • Fire-fighting water cannon upgrade
  • Rear LED warning system
  • Hose reel system
  • Additional spray nozzles
  • GPS tracking system
Packaging & Delivery
  • Production Time: 25-35 working days
  • Shipping Method: RORO / Container / CKD
  • Destination Port: Conakry Port, Guinea

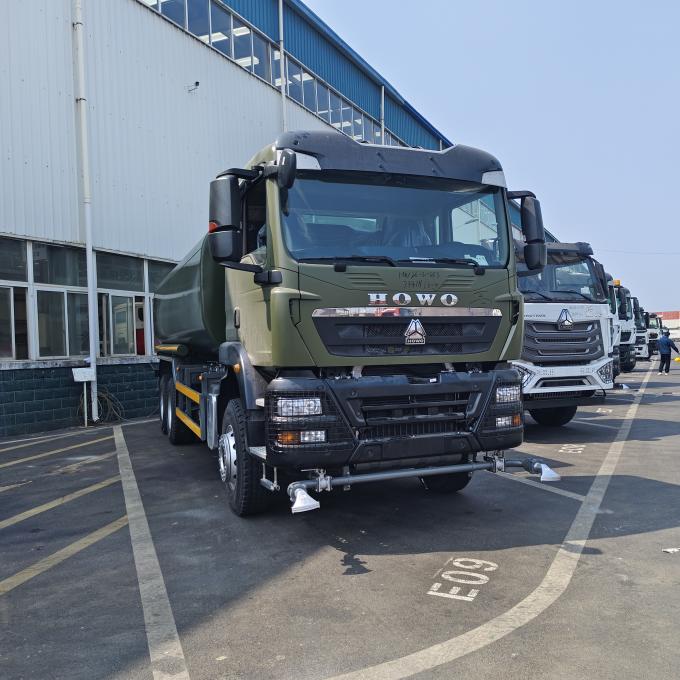

HOWO TX 6×4 Water Tank Truck for dust suppression and irrigation applications
