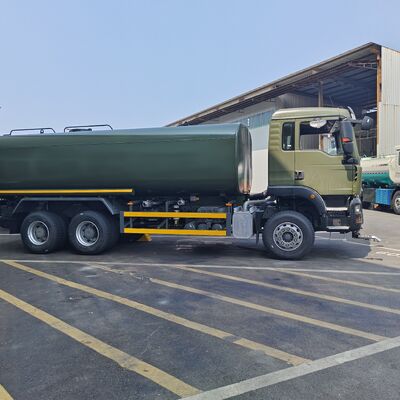

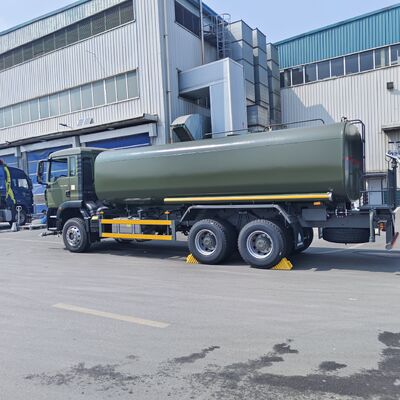

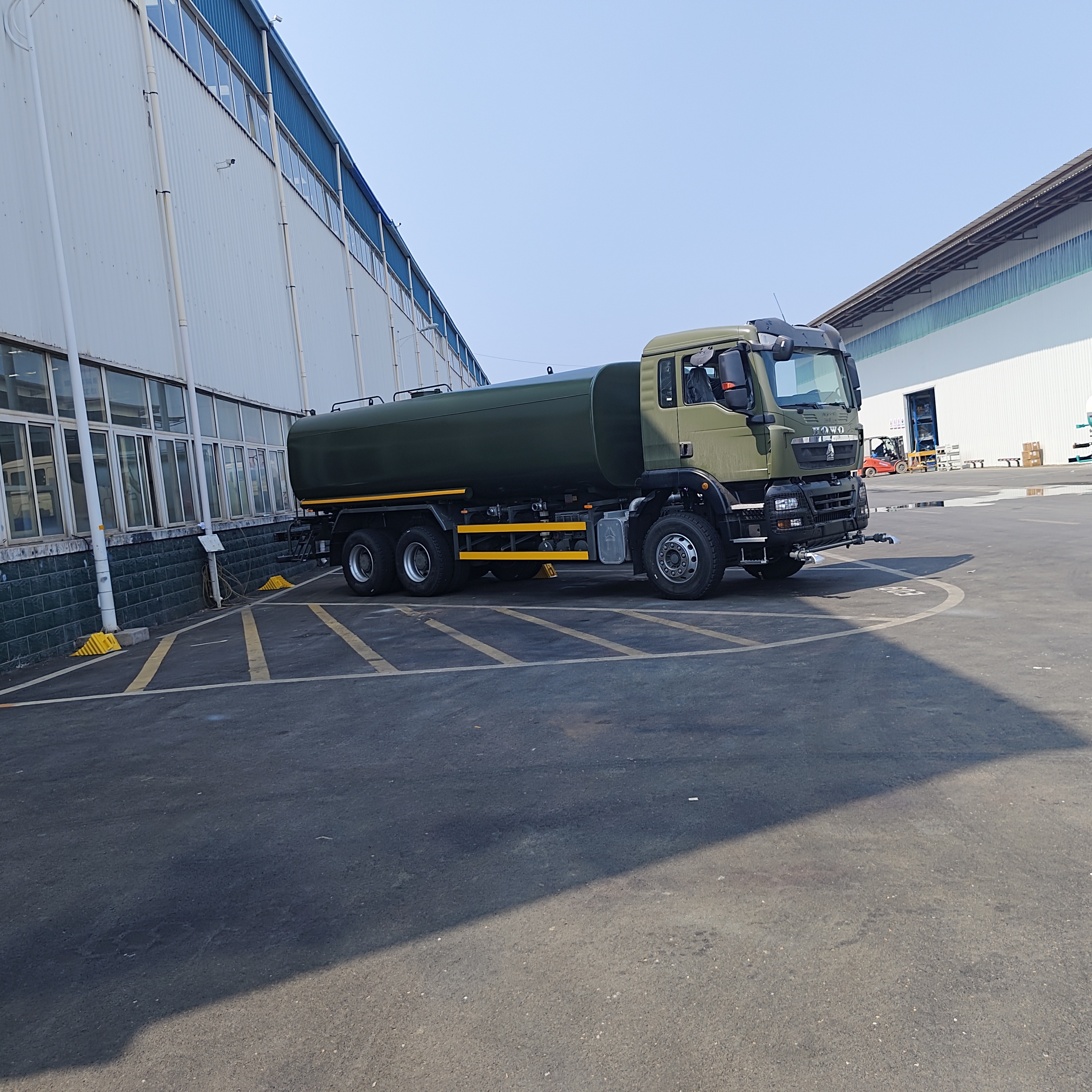

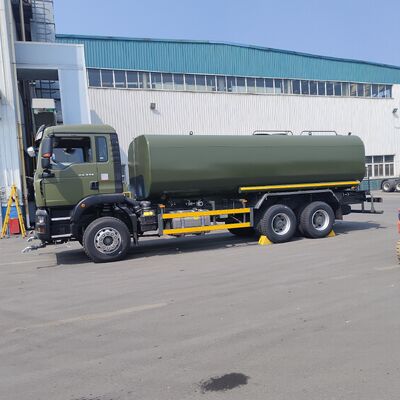

HOWO TX 6×4 Water Tank Truck with 20T Payload and Euro 2 Emission Standard for Road Cleaning and Dust Control

Heavy-duty water tank truck designed for multiple applications including road cleaning, dust suppression, construction watering, landscaping irrigation, and emergency water delivery.

• Brand: SINOTRUK HOWO TX
• Drive Type: 6×4
• Cabin: HOWO TX cab with air conditioner and optional sleeper
• Engine Model: Weichai WP10 / WP12 series
• Horsepower: 340HP / 380HP / 420HP
• Fuel Type: Diesel
• Emission Standard: Euro II / Euro III
• Transmission: HW19710 / HW19712 manual gearbox
• Steering: Hydraulic power steering
• Fuel Tank Capacity: 400-600L aluminum alloy

• Overall Dimension: approx. 9000 × 2500 × 3300 mm
• Wheelbase: 3800 + 1350 mm
• Tank Capacity: 15-20 CBM (15,000-20,000 liters)
• GVW: 25,000 - 31,000 kg
• Payload: 15-20 tons

• Material: Q235 carbon steel / optional stainless steel
• Thickness: 4-6 mm
• Structure: Reinforced tank with internal support and anti-wave plates
• Anti-Corrosion: Internal anti-rust treatment
• Manhole: Top access with safety cover
• Outlet: Bottom valve controlled discharge system

• Pump Type: High-pressure centrifugal pump
• Drive System: PTO driven
• Front Spray: Road washing nozzles
• Rear Spray: Wide coverage sprinkler
• Side Spray: Dual-side spraying nozzles
• Water Cannon: Adjustable high-pressure gun (range ≥30m)
• Control: Cabin control + rear manual control

• Pipe Material: Corrosion-resistant steel
• Water Filling: Quick inlet connection
• Filter System: Built-in filter for pump protection
• Drain System: Fast discharge design

• Frame Type: Double-layer reinforced steel frame
• Suspension: Heavy-duty leaf spring suspension
• Front Axle: 7-9 tons
• Rear Axle: 13-16 tons ×2
• Structure: Suitable for rough and muddy road conditions

• Size: 12.00R20 / 315/80R22.5
• Quantity: 10+1 spare tyre
• Type: Tubeless or tube optional

• Spraying Modes: Front / rear / side / water cannon
• Continuous Working Time: ≥ 8 hours/day
• Flow Control: Adjustable water output
• Working Efficiency: High spraying coverage and stable operation

• Anti-overflow protection
• Pressure relief valve
• Emergency shut-off system
• Anti-sway tank structure
• Safe and simple control system

• Suitable for tropical climate and high rainfall environment
• Reliable performance on muddy and unpaved roads
• Ideal for construction, mining, and municipal use
• Compatible with local diesel fuel
• Easy maintenance with HOWO spare parts available in West Africa

• Stainless steel tank
• Fire-fighting water cannon upgrade
• Rear LED warning lights
• Hose reel system
• Additional spray system
• GPS tracking system

• Production Time: 25-35 working days
• Shipping Method: RORO / Container / CKD
• Destination Port: Conakry Port, Guinea
