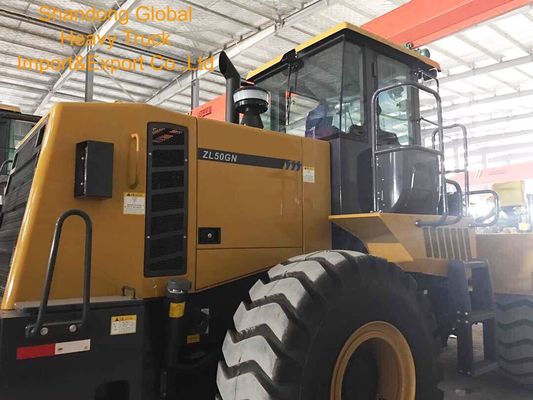

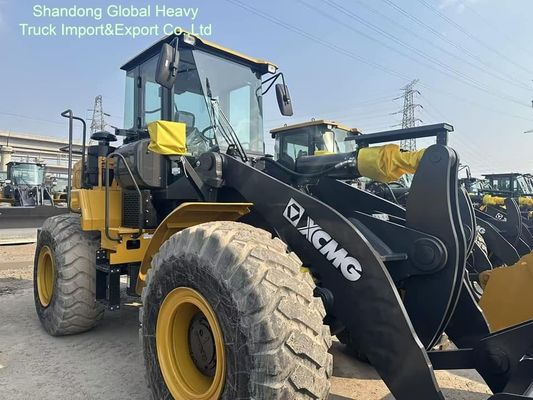

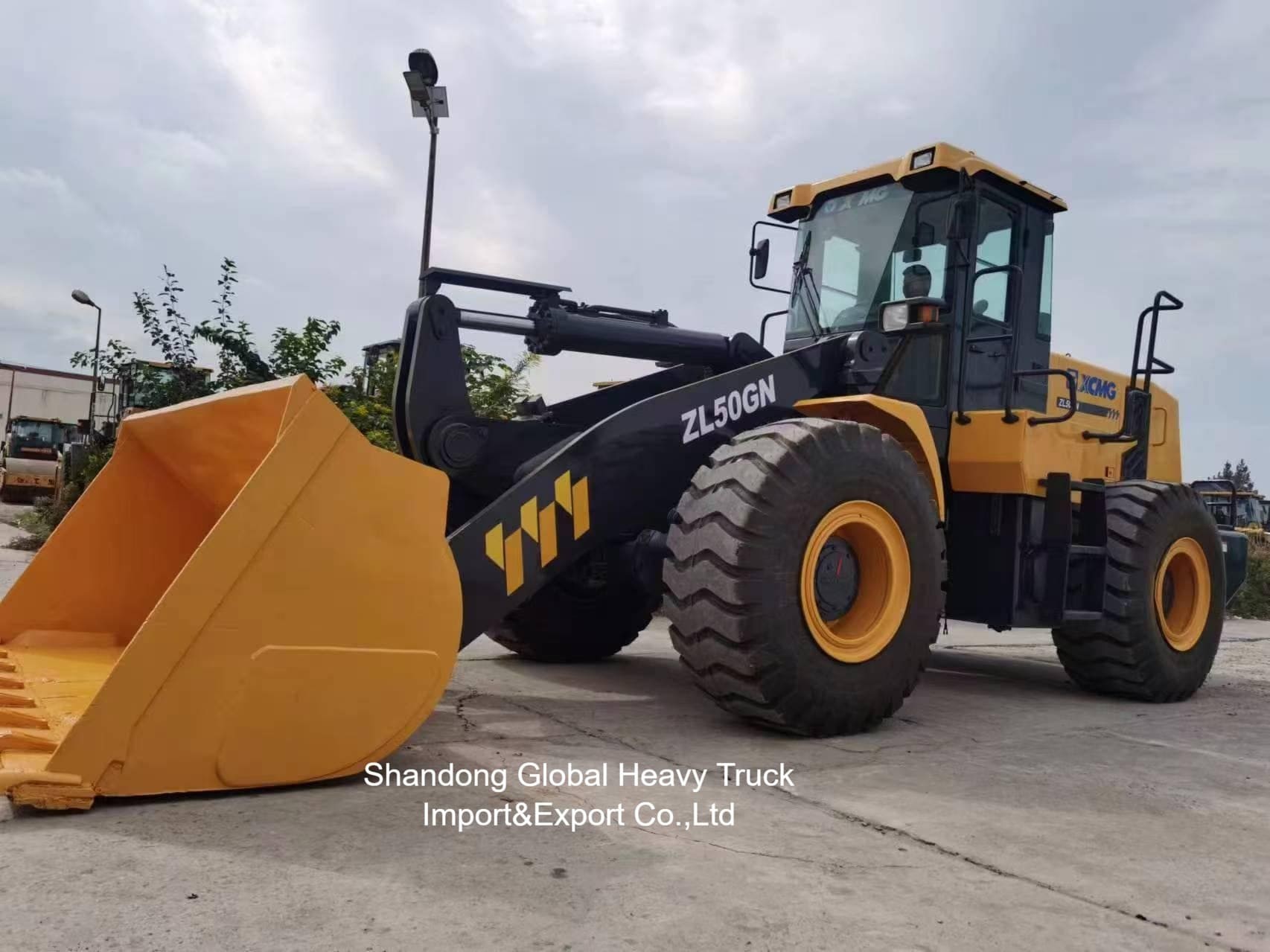

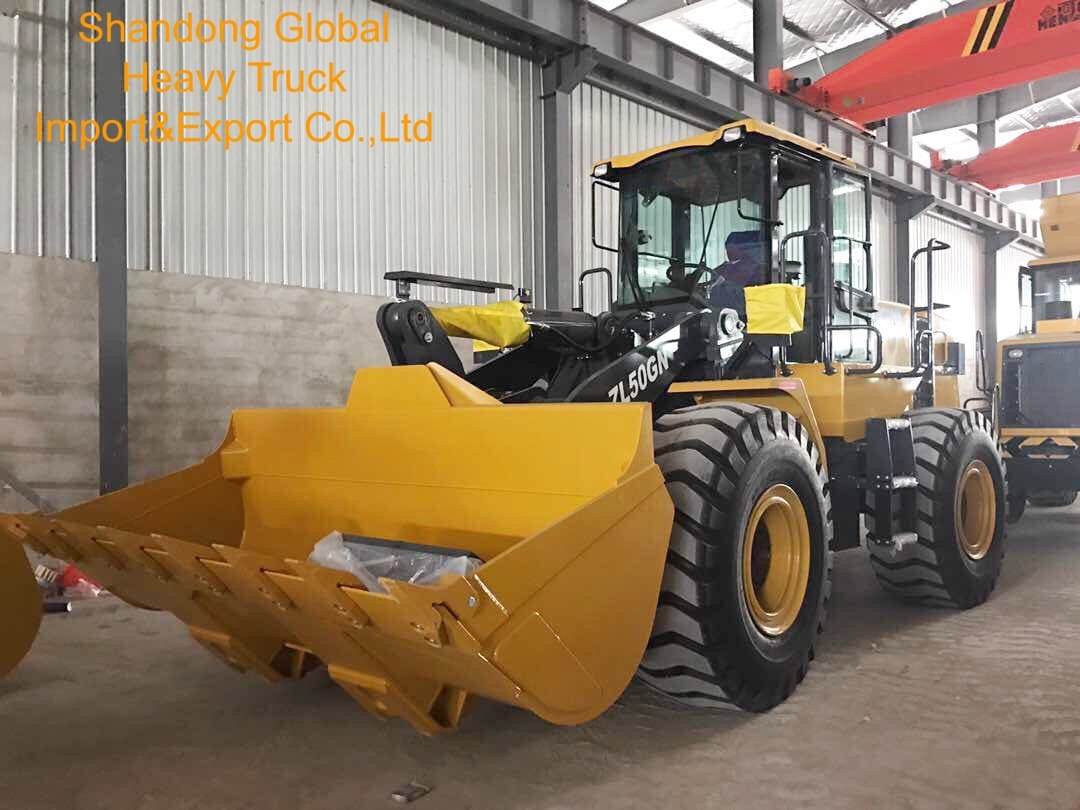

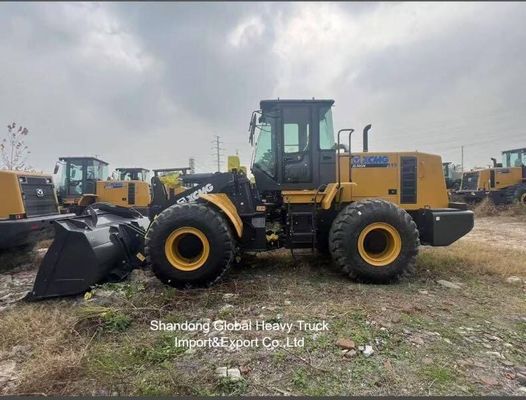

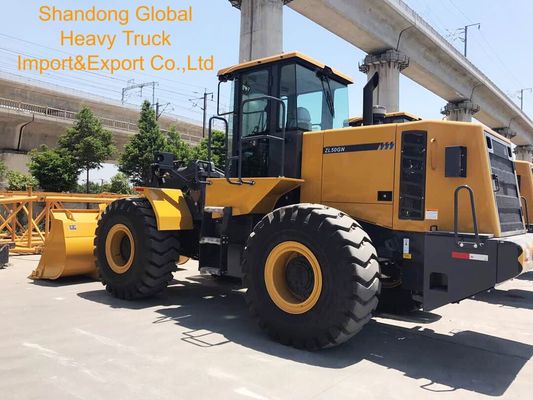

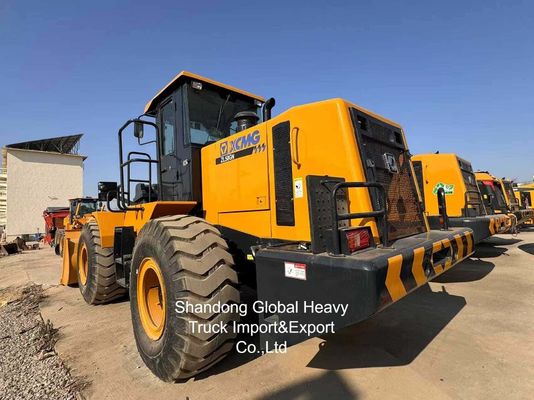

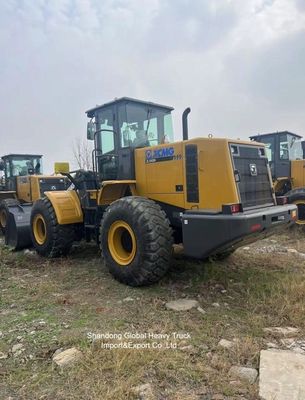

XCMG ZL50GN 5 Ton Wheel Loader 3.0m3 Bucket for Construction and Mining
The XCMG ZL50GN wheel loader is a reliable and heavy-duty machine designed for construction, mining, sand yard, stone yard, and material handling work. With a rated load of 5000 kg and a 3.0 m3 bucket capacity, this loader is suitable for loading, transferring, and short-distance transportation of bulk materials such as sand, gravel, soil, and crushed stone.
This wheel loader is designed to provide stable working performance, high breakout force, and good operating efficiency. The machine has a strong structure, flexible steering performance, and a spacious working configuration, which makes it a practical choice for many kinds of job sites. It can help improve loading efficiency and reduce labor cost in daily operation.
The ZL50GN is widely used in infrastructure construction, road projects, mining areas, port yards, and building material handling. With a dumping clearance of 3090 mm and dumping reach of 1130 mm, the machine can meet common loading requirements in different working conditions.
Main Features
- 5000 kg rated load for heavy-duty material handling
- 3.0 m3 bucket capacity for efficient loading
- 170 kN max. breakout force for strong digging ability
- 145 kN max. drawing force for reliable traction
- 11 s total cycling time for improved work efficiency
- 35° articulation angle for flexible steering
- Suitable for construction, mining, quarry, and aggregate applications
Technical Parameters
|
|
Specification |
| Model |
ZL50GN |
| Bucket Capacity |
3.0 m³ |
| Rated Load |
5000 kg |
| Rated Time |
6 s |
| Total Cycling Time |
11 s |
| Max. Drawing Force |
145 kN |
| Max. Breakout Force |
170 kN |
| Articulation Angle |
35° |
| Min. Turn Radius |
6400 mm |
| Climb Ability |
28 |
| Wheel Base |
3300 mm |
| Tread |
2200 mm |
| Dumping Clearance |
3090 mm |
| Dumping Reach |
1130 mm |
| Overall Dimensions (L×W×H) |
8110 × 3000 × 3508 mm |
| Operating Weight |
18 t |
This XCMG wheel loader is a practical solution for customers who need dependable loading equipment for demanding working conditions. If you are looking for a 5 ton wheel loader with strong performance and stable operation, the ZL50GN is a good choice.
Why Choose Our XCMG ZL50GN Wheel Loader?
With a 5000 kg rated load, 3.0 m³ bucket capacity, and 170 kN maximum breakout force, the XCMG ZL50GN is a practical choice for construction, mining, and material handling projects.
Contact us for detailed specifications, available configurations, and a quotation.
