Home ProductsHeavy Duty Dump Truck

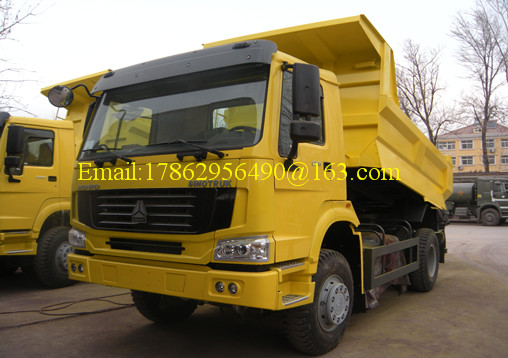

U Type 336 HP 4x2 Heavy Duty Dump Truck 25 Ton Loading Weight 3800mm Wheel Base

U Type 336 HP 4x2 Heavy Duty Dump Truck 25 Ton Loading Weight 3800mm Wheel Base

    • U Type 336 HP 4x2 Heavy Duty Dump Truck 25 Ton Loading Weight 3800mm Wheel Base
    • U Type 336 HP 4x2 Heavy Duty Dump Truck 25 Ton Loading Weight 3800mm Wheel Base
  • U Type 336 HP 4x2 Heavy Duty Dump Truck 25 Ton Loading Weight 3800mm Wheel Base

    Product Details:

    Place of Origin: JINAN SHANDONG
    Brand Name: HOWO
    Certification: ISO/CCC
    Model Number: ZZ3167N3811

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 UNIT
    Price: Negotiable
    Packaging Details: Nude
    Delivery Time: 30-45 work days
    Payment Terms: L/C, T/T
    Supply Ability: 500 s/monthunit
    Contact Now
    Detailed Product Description
    Model: ZZ3167N3811 Horespower: 336 HP
    Thickness: Bottom:8mm, Side:6mm Fuel Consumption: 32L/100km
    Emission Standard: EURO II Wheel Base: 3800mm
    High Light:

    heavy duty tipper trucks

    ,

    sand dump truck

    HOWO 4x2 U-type 336 HP DUMP TRUCK With German ZF8118 steering gear box



    Description:



    HOWO 4x2 U-type Dump Truck is produced by SINOTRUK.The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner.Adopting full hydraulic transmission, it can bring the power of engine into full play amply.Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission.Rich experience and well after-sale service.



    Packing:



    Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.Rich experience and well after-sale service.



    Our advantages:



    1. Adopt HW76 Cab single bunk,new type seat,adjustable steering wheel.

    2. Warranty: one year or 10000 km

    3. Production time: within 35 working days

    4. After-sale service team:highly trained with overseas working experience

    5. Shipping:professional transport team,safety and quickly

    6. Support service:response quickly in 12 hours and provide professional technical



    Main Discription:



    Truck Model ZZ3167N3811
    Dimension 7514x2496x3386mm
    Cargo body size 5400x2300x1400mm
    Wheel base 3800mm
    Volume of cargo 18m3
    Thickness bottom:8mm, side:6mm
    Gross of weight()kg 16000
    Loading Weight(kg) 25000
    Fuel tanker capacity 400L with locking fuel cap
    Displacement 9.726L
    Fuel consumption(L/100km) 32
    Engine

    4- stroke direct injection diesel

    engine, 6 cylinders in line with water

    cooling , turbo-charging and inter cooling

    Horsepower 336HP
    Model WD615.69
    Emission standard EURO II
    Transmission HW 15710,10 forwards and 2 reverse
    Steering system ZF8118
    Front axle HF9
    Rear axle HC16
    Tire 12.00R20 ,7 pieces
    Cab HW76 cab,(single sleeping, with air-condition), all-steel forward control
    Electrics

    Operating voltage:24V,negative grounded

    24V,7.5KW.Starter:24V,7.5 Kw

    28V,1500W.Alternator:3-phase,28V,1500 W

    2x12V,165Ah.Batteries:2x12 V,165 Ah

    horn,headlamps,fog lights,brake lights,indicators and reverse light

    Clutch SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance
    Brake system

    Service brake:dual circuit compressed air brake

    Parking brake (emergency brake):spring energy,compressed air operating on rear wheels



    U Type 336 HP 4x2 Heavy Duty Dump Truck 25 Ton Loading Weight 3800mm Wheel Base 0U Type 336 HP 4x2 Heavy Duty Dump Truck 25 Ton Loading Weight 3800mm Wheel Base 1
