| Place of Origin: | JINAN CITY OF CHINA |
| Brand Name: | SINOTRUK HOWO |
| Certification: | ISO/CCC |
| Model Number: | ZZ1257N4347 |
| Minimum Order Quantity: | 1 UNIT |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 units/month |
| Model: | ZZ1257N4347 | Driving Style: | Left Hand Driving |
|---|---|---|---|
| Tank Body Volume: | 16CBM | Loading Weight(kg): | 25000 |
| Fuel Consumption(L/km): | 28L/km | Transmission: | HW19710,10 F And 2 R |
| High Light: | fuel tanker trucks,oil tanker truck |
||

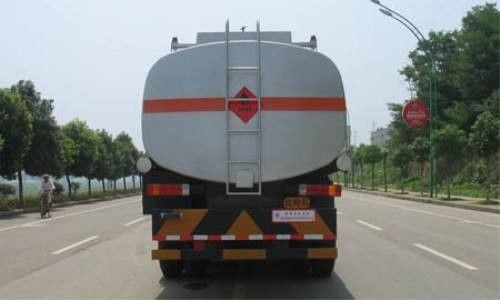

ZZ1257N4347 HOWO 6x4 16 cbm 371 HP Oil tanker truck with HW19710 Transmission
Description:
HOWO 6x4 Euro 2 16 cbm Oil tanker truck now is the best products in overseas market, the cab adopt all-steel forward control, 70° hydraulically tiltable to the front, 2-arm windscreen wiper system with 3 speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers .HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.
Packing:
Nude Pack.The packing of the commodity shall be in accordance with the export
standard packing of the manufacturer, be suitable for long distance transportation of
ocean and inland. The Seller shall be take measures against moisture,
shocks and rust according to the special needs of the commodity.
Competitive Advantage:
1. It is suitable for in normal roads and tough roads, to transport and unload transport, stone, ore, and others loose materials.
2. Warranty: one year
3. Production time: within 35 working days
4. Shipping: we have logistic team, can cargo your truck fast and safety.
5. Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
| Truck Model | ZZ1257N4347 | |||
| Truck Brand | SINOTRUK –HOWO | |||
| Driving Style | Left Hand Driving | |||
| Tank body volume | 16CBM | |||
| Approaching angle/Departure angle(°) | 19/26 | |||
| Overhang(front/rear) (mm) | 1500/1739 | |||
| Wheel base (mm) | 4350+1350(mm) | |||
| Max speed(km/h) | 75 | |||
| Maximum gradeability (%) | 40 | |||
| Minimum ground clearance(mm) | 314 | |||
| Minimum turning circle (m) | 20 | |||
| Curb weight(kg) | 12290 | |||
| Loading Weight(kg) | 25000 | |||
| Fuel tanker capacity(L) | 300 | |||
| Fuel consumption(L/km) | 28L/100 km | |||
| Clutch | Single-plate dry clutch Φ430mm | |||
|
Engine Model (Steyr technology, made in China) |
Fuel type | Diesel | ||
| Horse Power, max(kw/rpm) | 371HP,247/2200 | |||
| Emission | EURO II | |||
| Model | WD615.47 | |||
| Bore | 126mm | |||
| Stroke | 130mm | |||
| Compression ratio | 29.8hp/l | |||
| Specific fuel consumption | 195g/kwh | |||
| Transmission | Model | HW19710 | ||
|
Brake system
|
Service brake | Dual circuit compressed air brake | ||
| Parking brake |
spring energy, compressed air operating on rear wheels
|
|||
| Auxiliary brake | Engine exhaust brake | |||
|
Steering system
|
Model | ZF8098 Hydraulic Steering with power assistance. | ||
| Front axle | HF9 | |||
| Rear axle | HC16 | |||
| Color | Optional | |||
| Tyre | 12.00R20 | |||
|
Electrical system
|
Battery | 2X12V/165Ah | ||
| Alternator | 28V-1500kw | |||
| Starter | 7.5Kw/24V | |||
| Cab | HW76 single sleeper | |||
