| Place of Origin: | China |
| Brand Name: | Shantui |
| Certification: | ISO/CE |
| Model Number: | SR26M-3 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 pieces per month |
| Condition: | New | Grade Ability: | 30% |
|---|---|---|---|
| Weight: | 26000 | Dimension(L*W*H): | 6440*2432*3267 |
| Number/height Of Padfoot (mm): | 132/95 | Low Vibration Amplitude: | 0.95 |
| Rated Power(kW): | 140 | Static Linear Load (N/cm): | 572 |
| Highlight: | road work equipment,road construction vehicles |
||
SHANTUI 25 Ton Mechanism Single Drum Road Roller Vibratory With 6440*2432*3267mm
Product Description
SR26M/P-3 belongs to the super heavy machinery-driven vibratory roller. It combines the advantages of domestic large-tonnage vibratory roller. It has high configurations, superior performance and good reliability, and has a wider range of applications. Using its own weight and exciting force to compact various building and road building materials, it has reliable performance and the best function-price ratio.The machine is suitable for compacting various non-cohesive soils, such as gravel, gravel, sand-gravel mixture and various concrete.
It is suitable for the compaction of base layer, sub-base layer and fill material of various materials and non-viscous materials. It is an ideal compaction equipment for high-grade roads, high-speed railways, airports, ports, dams and industrial construction sites.
Product Parameter
|
SR26M-3 Mechanical Single-Drum Vibratory Road Roller
|
|||
|
Product name
|
Mechanical Single-Drum Vibratory Road Roller
|
||
|
SR26M
|
|||
|
Quality (kg)
|
Total mass
|
26000
|
|
|
Front wheel
|
13000
|
||
|
rear wheel
|
/
|
||
|
Dimensions (mm)
|
full length
|
6440
|
|
|
Full width
|
2432
|
||
|
Full height
|
3267
|
||
|
Theoretical climbing ability (%)
|
30
|
||
|
Vibration wheel (mm)
|
width
|
2170
|
|
|
diameter
|
1600
|
||
|
Static line load (n/cm)
|
574
|
||
|
Amplitude (mm)
|
high
|
2.0
|
|
|
low
|
1.0
|
||
|
Vibration frequency (Hz)
|
high
|
33
|
|
|
low
|
30
|
||
|
Excitation force (kN)
|
High amplitude
|
404
|
|
|
low amplitude
|
280
|
||
|
Minimum turning radius (mm)
|
6450
|
||
|
Wheelbase (mm)
|
3307
|
||
|
engine model
|
ShangchaiSC8DK190G3
|
||
|
Rated power (kW)
|
140
|
||
|
Fuel tank capacity (L)
|
300
|
||
|
Driving speed (km/h)
|
Forward I
|
2.8
|
|
|
Forward II
|
5.5
|
||
|
Forward III
|
9.0
|
||
|
Forward IV
|
/
|
||
|
Back I
|
2.8
|
||
|
Back II
|
5.5
|
||
|
Back III
|
9.0
|
||
|
Back IV
|
/
|
||

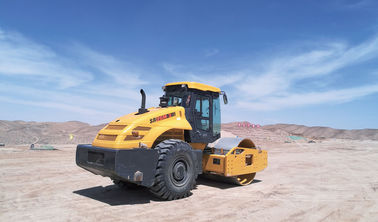

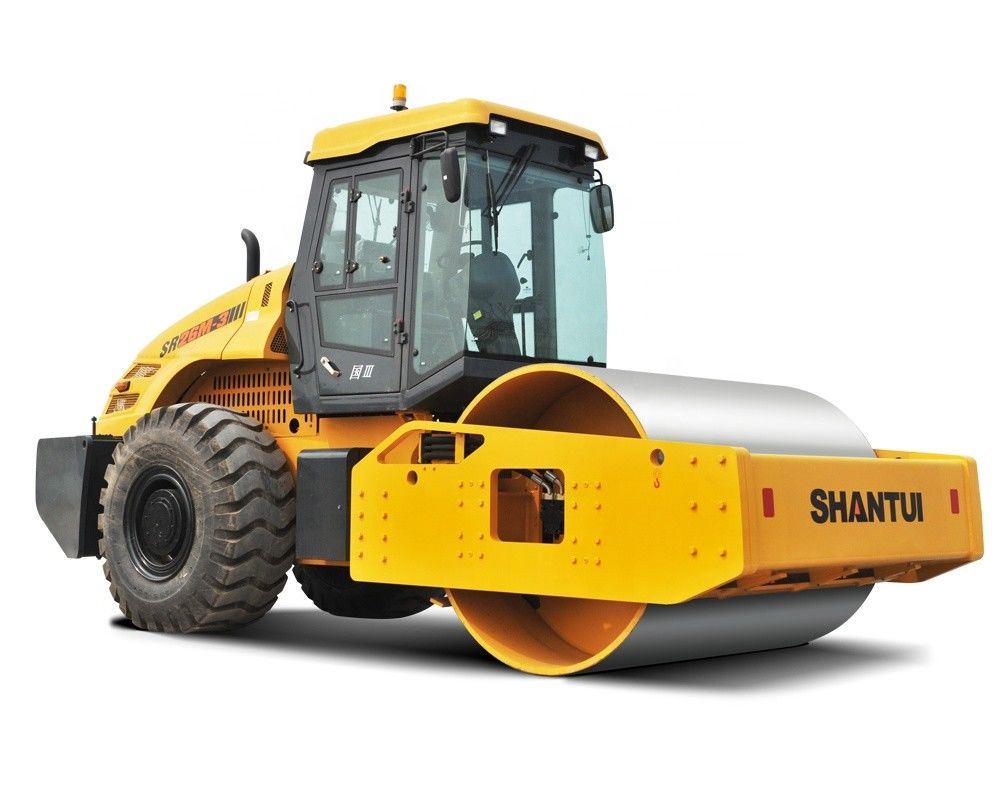

Product Picture
![]()
![]()
![]()
