| Place of Origin: | CHINA |
| Brand Name: | FAW |
| Certification: | CC |
| Model Number: | CA3121P9K2YA80 |
| Minimum Order Quantity: | 1UNIT |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 units/month |
| Drive Wheel: | 4x2 | Emission Standard: | Euro 3 |
|---|---|---|---|
| Model: | CA3121P9K2YA80 | Dimensions (L X W X H) (mm):: | 7100x2490x3000mm |
| Gross Vehicle Weight:: | 11835 | Wheel Base:: | 3750 |
| High Light: | sand dump truck,construction dump truck |
||

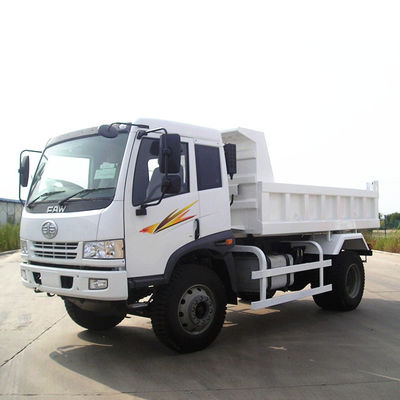

CA3121P9K2YA80 FAW 4x2 180hp Heavy Duty Dump Truck With Single Sleeper
Product Details:
1. Full-float New J5P cabin (high roof/flat roof), comfortable and control smoothly;
2. High safety ,high reliability , high comfort ,low weight ,low fuel consumption ,low maintenance cost;
3. FAWDE/WEICHAI engine ,FAW/FAST/EATON/ZF gearbox ,FAW/PX axle, high reliability;
Packing:
Competitive Advantage:
1. It is suitable for in normal roads and tough roads, to transport and unload transport, stone, ore, and others loose materials.
2. Warranty: one year
3. Excellent and high-quality control
4. Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission.
5. Rich experience and well after-sale service.
6. Long lasting working life time.
7. Shippping: we have logistic team, can cargo your truck fast and safety.
QA:
Q1. Are you factory or trading company ?
we are trading company. But we have acquired export authorization from, we are the distributor of FAW for their overseas business.
Q2. What’s the MOQ ?
Normally, If the items are in stock,there is no MOQ. The quantity is according to the clients requires.
Q3.Which payment can be acceptable ?
We could accept the payment by T/T, L/C, D/P, D/A, Cash etc.
Q4. How about your delivery time?
A: Generally, within 30 days after receiving your advance payment. Depend on the quantity.
Q5. How about your company's service, especially after-sale service?
A: kaimei has been in this field for nearly 10 years and has strong distribution capability, and after-sales service. We also have four branches in Kazakhstan, Uzbekistan, Kyrgyzstan and Russia for management, sale and maintenance.
Product Specification:
| BRAND & MODE | FAW CA3121P9K2YA80 | |
| Load Parameters | ||
| G. V. W. (kg) | 11835 | |
| Curb weight, toal (kg) | 6640 | |
| Loading capacity (kg) | 10000 | |
| Drive form | 4X2 | |
| Max. speed KM/h | 70KM/h | |
| Front axle capacity(KG) | 3245 | |
| Rear axle capacity (KG) | 8590 | |
| Leaf spring | 12/14+9,13/10+9 | |
| Appr/Dep.:(°) | 28/32 | |
| Dimension Parameters | ||
| Dimension(mm) (L*W*H) | 7100X2490X3000 | |
| Cargo box | Dimension(L*W*H) | 4000X2260X1100 |
| Wheel base(mm) | 4090 | |
| Wheel trace(mm) | 1914, 1847 | |
| Configuration Parameters | ||
| Cabin | Cabin type | Single |
| Seating capacity | 2,3 | |
| Engine | Brand&Model | CA6110/125Z1A2 |
| Max. horsepower | 170HP | |
| Max. power | 125KW | |
| Max.output torque | 650N·m | |
| Displacement(ml) | 6618 | |
| Combustion types | Diesel | |
| Gearbox | Brand&Model | CA6TB085M |
| Fuel tank capacity | 200L | |
| Emission standard | EURO 3 | |
