| Place of Origin: | China |
| Brand Name: | CLW |
| Certification: | ISO |
| Model Number: | CLW5080C9 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 300 Unit/Units per month |
| Fuel Type: | Diesel | Dimensions (L X W X H) (mm): | 7470X2350X2440mm |
|---|---|---|---|
| Capacity: | 2-8 Ton Flatbed Tow Truck | Emission Standard: | Euro 3 |
| Transmission Type: | Manual | Steering Wheel: | Both Left And Right Hand Drive |
| Color Of Wrecker Body: | As Client Requirements | Operation: | Hydraulic System Operated |
| High Light: | heavy wrecker trucks,emergency tow truck,left hand drive road wrecker truck |
||
China Right/Left Hand Drive 3 ton Wrecker Towing Truck Euro 3
Product description
Wrecker truck, full name is road wrecker truck, is also called trailer truck or road rescue wrecker truck or towing truck.
Wrecker truck basically is refitted from the loading goods second class chassis, according to the wrecker truck's structure, it can be divided into towing, loading, lifting, rescue (single arm type and arms type) wrecker truck. It has multiple functions such as lifting, pulled and lift traction. Wrecker truck is mainly used in road, city of peccancy vehicles and rescue, etc.
Product parameter
| Vehicle | DONGFENG wrecker tow truck | |
| Overall dimension | mm | 7470×2350×2440 |
| Flatbed dimension | 5550×2300 | |
| Curb weight | kg | Appro×4910 |
| Flatbed loading weight | Appro×4000 | |
| Carriage arm loading weight | Appro×3000 | |
| Wheel base | mm | 3800 |
| Front/Rear overhang | 1210/2460 | |
| Approach/departure angle | ° | 24/10 |
| Standard configuration | 1) 4 tons winch 1 set | |
| 2) Auxiliary wheel 2pcs | ||
| 3) Rear towing arm assembly 1 set | ||
| 4) Drag the fork 1set | ||
| 5) Steel wire rope 25m | ||
| 6) Bunding belt 2pcs | ||
| 7) Accessory tool 1set | ||
| Working Performance |
1. It can tow two cars. 2. Hydraulic control flatbed and carriage arm,with hydraulic operation lever. 3. Winch speed : 8m/min. 4. Flatbed working stroke: 2680mm 5. Flatbed minimum tilt angle: 10° 6. Carriage arm telescopic stroke: 1180mm 7. The max effective length of the arm: 1300mm |
|
| Chassis Parameter | ||
| Cabin | Single row cabin,air conditioner, cabin roof warning light, 2 passangers | |
| Traction system | 4×2, 2 axles | |
| Engine |
Brand : DONFGENG CHAOCHAI Model :CY4102-E3C, 120hp Type : diesel, 4 cylinder, turbocharged, intercooled. Displacement : 3856cc Emission standard : Euro III |
|
| Transmission | 5-speed, manual | |
| Tire model | 7.50R16, 6 pcs, and a spare tire | |
Packaging & Shipping
Roll on roll off (RORO) ship
It's the specialized ship to transport cars and trucks, which has power wheel, it's the best way of truck transportation.
Bulk carrier ship
It's the specialized ship to transport grain, coal, ore, salt, cement ,etc, dry and bulk goods, can also used to transport trucks,price is cheap, but the truck always be put on the deck, sea water will damage the truck painting.
Container ship
It's well-known shipping way, and also the highest cost among these three ways. Few sea port only container ship can arrive, so sometimes, we have to use container ship.

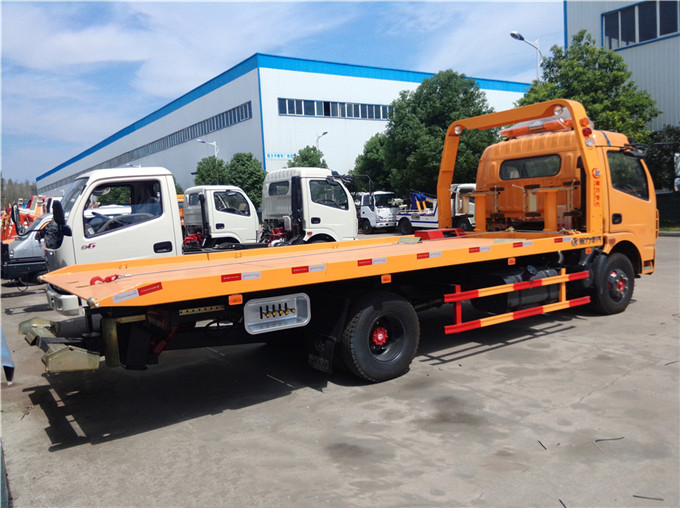

Product picture

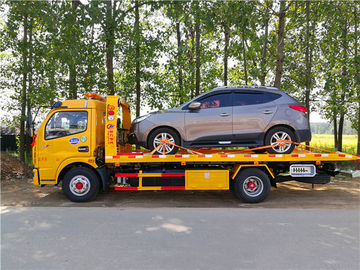

Towing wrecker truck working
