| Place of Origin: | Shandong，China |
| Brand Name: | SINOTRUK HOWO |
| Certification: | ISO9001 |
| Model Number: | ZZ3257N3447A |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packed in nude |
| Delivery Time: | 30-45days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500sets per month |
| Model: | ZZ3257N3447A HOWO Dump Truck | Emission Standard: | Euro 2 |
|---|---|---|---|
| Engine Model: | WD615.69 | Horsepower: | 336hp |
| Cabin: | HW76,Single Bunk,AC(Option:Right Hand Driving) | Transmission: | SINOTRUK HW19710 Transmission ,10 Forward And 2 Reverse |
| High Light: | sand dump truck,construction dump truck |
||

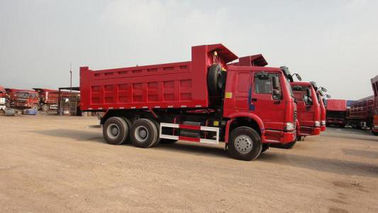

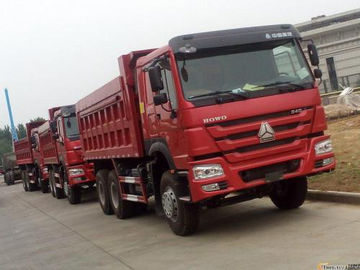

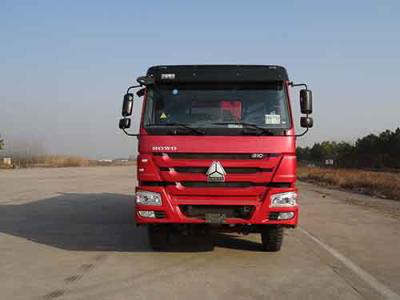

SINOTRUK HOWO 336hp 6X4 drive dump truck for sale
| SINOTRUK HOWO 6x4 DUMP TRUCK SPECIFICATIONS | |||
|
Body |
Carriage Internal Dimensions(mm) | 5200x2300x1400 | |
| Cubage (m3) | 16.75 | ||
| Steel thickness of Carriage(mm) | Floor:8mm/Side:6mm | ||
| Steel | Q235 | ||
| Hydraulic Lift of Carriage | Middle Lift | ||
|
Weight in kg |
Kerb weight (Kg) | 12270 | |
| Gross vehicle weight (Kg) | 30000 | ||
|
Dimension(mm)
|
Dimensions(mm) |
Length(mm) | 8045 |
| Width(mm) | 2550 | ||
| Height(mm) | 3450 | ||
| Wheel base (mm) | 3400+1350 | ||
|
Performance |
Maximum driving speed (km/h) | 75 | |
| Fuel consumption (1/100 km) | 38 | ||
|
Cab |
Model | SINOTRUK HW76 Lengthen cab | |
| HW76 cab, single sleeping, with air-condition), all-steel forward control, 70° hydraulically tiltable to the front, 2-arm windscreen wiper system with 3 speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers. | |||
|
Engine |
Model | WD615.69(Euro 2) | |
| Type | 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection | ||
| Horsepower | 336 | ||
| Maximum output Kw/r/min | 247/2200 | ||
| Maximum torque N.m/r/min | 1350/1300-1600 | ||
| Bore x Stroke | 126x130mm | ||
| Valve | 2 | ||
| Displacement | 9.726L | ||
| Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80℃ opening begin, Rigid fan | |||
| Transmission | SINOTRUK HW19710 transmission ,10 forward and 2 reverse | ||
|
Clutch |
SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance | ||
|
Steering |
ZF8118 Steering Gear Box ,hydraulic steering with power assistance.(Left hand driving) | ||
|
Front Axle |
SINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakes. | ||
|
Rear Axles |
SINOTRUK HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:5.73;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers. | ||
|
Brake System |
Service brake:dual circuit compressed air brake Parking brake (emergency brake):spring energy,compressed air operating on rear wheels |
||
|
Wheels & Tyres |
Rims:10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire. (Front tyre TR688 back tyre TR691 Triangle brand) |
||
|
Electrics |
Operating voltage:24V,negative grounded 24V,7.5KW.Starter:24V,7.5 Kw 28V,1500W.Alternator:3-phase,28V,1500 W 2x12V,165Ah.Batteries:2x12 V,165 Ah horn,headlamps,fog lights,brake lights,indicators and reverse light |
||
| Oil Tank | Square type-300L Aluminum alloy fuel tank | ||
(All pictures are for reference only.)
Description:
HOWO brand. now is the hot sales brand of overseas market, the popular model is with 18m³, 20m³, 30m³ dumper bucket capacity using in road project solution, mining site , and other urban construction etc.SINOTRUK HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:5.73;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.
Applications:
It is suitable for in normal roads and tough roads, to transport and unload transport, stone, ore, and others loose materials.
Competitive Advantage:
1. Warranty: one year
2. Production time: within 35 working days
3. Shipping: we have logistic team, can cargo your truck fast and safety.
4. Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
