| Place of Origin: | China |
| Brand Name: | HOWO |
| Certification: | CCC/ISO |
| Model Number: | CLW5250TFCZ |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Unit/Units per Month |
| Drive Cabin: | 3 Seats, With A Sleeper | Overall Dimension: | 10200*2500*3730mm |
|---|---|---|---|
| Gravel Hopper Volume: | 12~14 Cbm | Burner: | ITALY Import G20 |
| Engine Power: | WD615.95 336PS Euro 3 Diesel Engine | Medium: | Liquid Asphalt, Hot Asphalt, Etc |
| Wheelbase: | 4600+1350mm | Axle & Tire: | 3 Axles, 10 Wheels, 11.00R20 Tires, With A Spare Tire |
| High Light: | road work equipment,road construction vehicles |
||
Synchronous Gravel Seal Truck HOWO 10 Wheels 8m3 10m3 Asphalt Bitumen
Product description
Synchronous chip sealer truck is developed by our company on its own design, with independent intellectual property rights of the synchronous gravel sealing machine, the machine is in the same model of synchronous gravel has been improved to make it even worse Conditions of construction operations, enhance the stability of equipment operation. Reached the machine, electricity, liquid integrated operation, equipment operation process is simplified, simple operation, the whole machine has reached the advanced world level.
Product parameter
| Product Name | Synchronous chip sealer spreader |
| Chassis & Year | SINOTRUK HOWO (RHD CAB), 2019 new |
| Volume of Asphalt Tank | 8cbm |
| Volume of Gravel Hopper | 12~14cbm |
| Overall Dimension | 10200*2500*3730mm |
| Tank material | Carbon steel + stainless steel |
| Thickness of Insulation Layer | 100mm insulation layer in middle of tank body |
| Gross Weight | 25000kg |
| Curb Weight | 17370kg |
| Payload | 7500kg |
| Wheelbase | 4600+1350mm |
| Fuel Type | Diesel |
| Engine | WD615.95, 336PS, 9.726L, 4 stoke, EGR, turbocharged intercooled,water cooling |
| Transmission | HW90710, manual, 10 front gears and 2 rear gear |
| Brake | Automatically air cut-off brake |
| Axle & Tire | 3 axle, 10* 11.00R20 Linglong brand tires |
| Max speed | 80km/h |
| Bitumen Spray System Options (Please select which type you need when inquiry) | |||
| Type | Common Type | Standard Type | Smart Type |
| Volume of Asphalt Tank | 6 | 8 | 8 |
| Volume of Gravel Hopper | 10 | 14 | 14 |
| Model of asphalt pump | QGB680(680L/min) | QGB950(950L/min) | TGGP-185-125(950L/min) |
| Origin of asphalt pump | China made | China made | China made |
| Medium | Hot/Dilute/Emulsify asphalt | Hot/Dilute/Emulsify asphalt | Hot/Dilute/Emulsify asphalt |
| Hydraulic System | Shanxi YUCI | Shanxi YUCI | Shanxi YUCI |
| Proportional Valve | Taiwan EFBG-03-160-HF | Taiwan EFBG-03-160-HF | Taiwan EFBG-03-160-HF |
| Reversing Valve | √ | √ | √ |
| Relief Valve | √ | √ | √ |
| Model of Hydraulic Pump | 50-20-16 | 50-20-16 | German Rexroth |
| Model of Hydraulic Motor | 05-110-BD31 | 05-110-BD31 | 05-110-BD31 |
| Radiator | RISHENG brand | RISHENG brand | RISHENG brand |
| Control System | German Siemens CLW-32-01 | German Siemens CLW-32-01 | German Siemens CLW-32-01 |
| Control Type | Computer smart control, 1-control-1 | Computer smart control, 1-control-1 | Computer smart control, 1-control-1 |
| Operation Person Number | 1 persons | 1 persons | 1 persons |
| Asphalt Nozzle Number | 32 | 32 | 32 |
| Heating Type | Heat conducting oil automatically heating | ||
| Conducting Oil | Hebei,China | ||
| Burner | Italy import G10 | ||
| Power of Engine | 6KW | 6KW | HONDA 5.5KW |
| Spraying Capacity | 0.3~3.5L/min | 0.3~3.5L/min | 0.2~4L/min |
| Spraying Error | ±2% | ±2% | ±2% |
| Spraying Width | 4m | 4m | 4m |

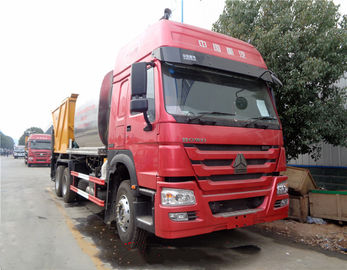

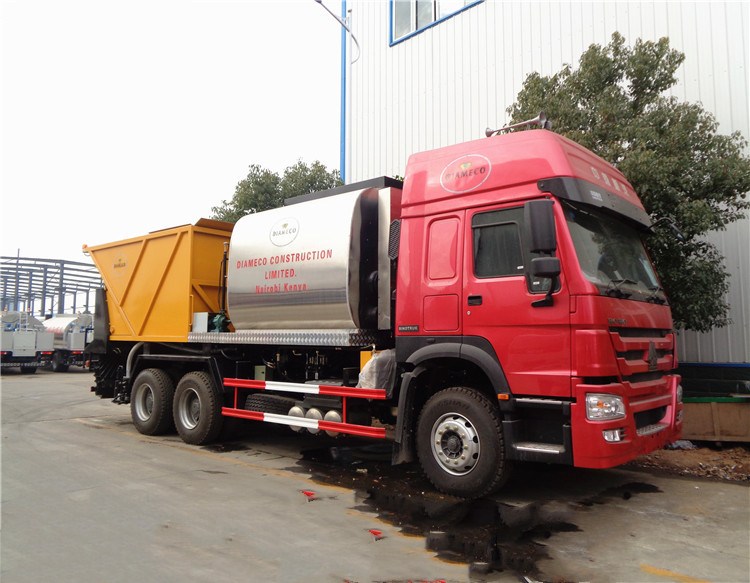

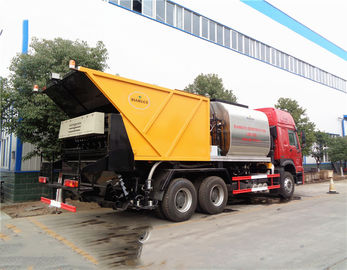

Product picture
