HOWO 6×4 20CBM Refueling Oil Tanker Vehicle 336HP 15001 - 30000L ISO9001

HOWO 6×4 20CBM Refueling Oil Tanker Vehicle 336HP 15001 - 30000L ISO9001

    • HOWO 6×4 20CBM Refueling Oil Tanker Vehicle 336HP 15001 - 30000L ISO9001
    • HOWO 6×4 20CBM Refueling Oil Tanker Vehicle 336HP 15001 - 30000L ISO9001
    • HOWO 6×4 20CBM Refueling Oil Tanker Vehicle 336HP 15001 - 30000L ISO9001
    • HOWO 6×4 20CBM Refueling Oil Tanker Vehicle 336HP 15001 - 30000L ISO9001
  • HOWO 6×4 20CBM Refueling Oil Tanker Vehicle 336HP 15001 - 30000L ISO9001

    Product Details:

    Place of Origin: China
    Brand Name: HOWO
    Certification: ISO9001
    Model Number: ZZ1257N4647D1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negotiation
    Packaging Details: Nude
    Delivery Time: 30-45 work days
    Payment Terms: L/C, T/T
    Supply Ability: 300 units per month
    Contact Now
    Detailed Product Description
    Condition: New Storage: Oil
    Drive Wheel: 6x4 Horsepower: 251 - 350hp
    Transmission Type: Manual Fuel Type: Diesel
    Tank Volume: 15001 - 30000L Engine Capacity: 9726ml
    High Light:

    fuel tanker trucks

    ,

    oil tanker truck

    HOWO 6×4 20CBM Refueling Oil Tanker Truck Optional Color 336HP 15001 - 30000L

    Product description



    Oil tanker truck is also called Fuel Tanker Truck, petrol delivery truck, diesel hauling trucks, crude oil transport trucks, oil tank trailer, fuel tanker semi trailers, mobile oil tank trucks, etc., is used to transport or refuel oil, petrol, diesel, lubricant, crude oil and some chemical liquid, etc.

    1. Oil tanker trucks mainly include truck chassis, oil tanker, piping system, manhole, vapor recovery system, manifold system, API valve, emergency valve, etc.


    2. Tank materials: Optional for carbon steel, stainless steel and aluminum alloy material. With multiple baffle plates in the tank, it has the advantages of high intensity, stability, transporting safety etc.

    3.Tank shape: Optional for round square, oval, and round;

    4. According to users' needs, the tank can be designed as single compartment or several compartments to contain different kinds of oil or chemicals.

    5.Oil pump: Users can choose centrifugal pumps, gear pump, copper gear pump, or stainless steel pump according to actual needs. It has advantage of big flow, high suction pressure and speed.



    Product parameter



    Name SINOTRUK HOWO 20M3 Oil Tank Truck
    Dimension(LxWxH) 10350×2496×3350 mm
    Total Mass 24500 Kg
    Rated Payload 15000 Kg
    Cerb Weight 11250 Kg
    Passenger 3
    Approach/Departure Angle 16/12
    The Parameters of Chassis
    Manufacture/Model HOWO/ZZ1257N4647D1
    Driving Type 6*4 left/right hand drive
    Wheel Base 4600 + 1350mm
    Front/Rear Track 2022/1830(mm)
    Tyre 12R22.5, 10+1 spare tire
    Front/Rear Suspension 1500/2900(mm)
    Leaf Spring Number 4/-,4/12,10/-,10/12
    The Paremeters of Engine
    Engine Model D10.34-40
    Rated Power 340hp
    Fuel Type Diesel oil
    Displacement/Capacity 9726ml
    Emission Standard Euro 3/4/5
    Manufacturer China Heavy Duty Group Co., Ltd.
    The Parameters of Equipment
    Color/Logo Customizable
    Material Carbon steel (optional with stainless steel, aluminum alloy)
    Function Fuel/oil/diesel Transporting and refueling, etc.
    Volume of Tank 20000L
    Thickness 5mm
    Equipment

    1. Equipped with 1 oil pump with 1 inlet valve and 1 outlet valve.

    2. Tank divided into 6 compartments, each discharge valve for each compartment.

    3. Each European standard man hole cover and each air emergency valve for each compartment.

    4. Equipped with folding barrier on top of the tank.

    5. Equipped with fire extinguisher, front ladder, grounding wire, plastic fender.

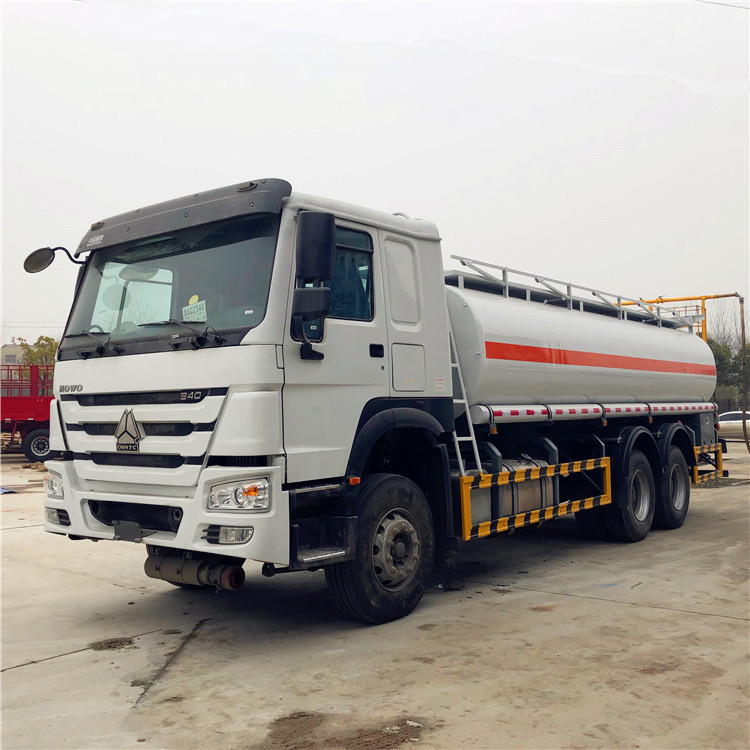

    Product picture



    HOWO 6×4 20CBM Refueling Oil Tanker Vehicle 336HP 15001 - 30000L ISO9001 0HOWO 6×4 20CBM Refueling Oil Tanker Vehicle 336HP 15001 - 30000L ISO9001 1HOWO 6×4 20CBM Refueling Oil Tanker Vehicle 336HP 15001 - 30000L ISO9001 2HOWO 6×4 20CBM Refueling Oil Tanker Vehicle 336HP 15001 - 30000L ISO9001 3
