| Place of Origin: | China |
| Brand Name: | HOWO |
| Certification: | ISO9001, CCC |
| Model Number: | ZZ1257N3647 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 300 Unit/Units per Month |
| Power(W): | 105kw | Warranty: | 12months |
|---|---|---|---|
| Emission Standard: | Euro2, Euro3, Euro4, Euro5 | Engine Model: | WD615.96;371HP |
| Tires: | 12.00-20 | Weight: | 25000 |
| Dimension(L*W*H): | 9300*2500*3940mm | Dirving Type: | 6*4; LHD Or RHD |
| High Light: | truck mounted concrete pump,mobile cement mixer trucks |
||
SINOTRUK HOWO 8 m3 10 m3 6*4 Concrete Mixer Truck With 371HP Optional Color
Product description
Concrete mixer truck is widely used to transport and mix concrete up to the construction site, such as skyscraper construction, bridge construction,high way construction and so on. Due to different size of the drum, the concrete mixer truck can be divided into different models from 2 cbm to 16cbm with different special chassis,like dongfeng, foton, dayun,jiefang and sinotruck.
Product parameter
| Main Technical Parameter | |||||
| Product Name | Cement Mixer Truck | Overall Dimension(mm) | 9300×2500×3940 | ||
| Gross Weight(Kg) | 25000 | Curb Weight(Kg) | 10945 | ||
| Axle No. | 3 | Axle Load(Kg) | 7000/18000(parallel installed) | ||
| Wheelbase(mm) | 3625+1350 | Max Speed(Km/h) | 78 | ||
| Chassis Technical Parameter | |||||
| Chassis Model | ZZ1257N3647 | Chassis Brand | SINO TRUCK | ||
| Overall Dimension(mm) | 7905×2496×3050 | Tyre No. | 10 tyre with 1 spare tyre | ||
| F/ R Suspension(mm) | 1540/1390 | Tyre Specification | 12.00-20 | ||
| Front Track(mm) | 2022 | Rear Track(mm) | 1830/1830 | ||
| Drive Type | 6x4 | App/Dep Angel (°) | 20/32 | ||
| Cab Allowed Person | 2 | Clutch | Single-dry diaphragm spring | ||
| Axle | 16T Double rear axle | Air Condition | Equipped | ||
| Steering Wheel | LHD | Gear box | 10 speed forward 2 reverse | ||
| Cabin | HOWO-A7 Flat Roof | Fuel Tank Volume(L) | 400 | ||
| Engine | |||||
| Engine Model | WD615.96E | Engine Brand | SINO TRUCK | ||
| Displacement(ml) | 9726 | Power | 371hp/276kw | ||
| Fuel Type | Diesel | Emission Standard | Euro III | ||
| Superstructure Technical Parameters | |||||
| Mixer Capacity(m3) | 10 | Material of Drum | Q345 Carbon steel | ||
| Reducer | Italy PMP brand | Hydraulic pump/motor | Italy PMP brand | ||
Packaging & Shipping
1> Packaging: Nude,but waxed before shipment in our factory.
2> Shipping: Small type can be put into 20' or 40' container, big type must be shipped by bulk carriers or ro-ro ship or according to your requirements.
Our Services
1. Factory Supply:
a. one of the biggest special using truck manufacturers in china,
b. more than 300 kinds of special truck for your needing.
2. OEM Ability: can produce according to your demand, the material, the size, the color and the logo is optional for you.
3. Good Quality:
a. has solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,
b. passed the ISO9001-2008 and the 3C (China Compulsory Certification),
c. our brand is china famous brand with good reputation in the market.
4. Good Service:24-hour hotline and email.

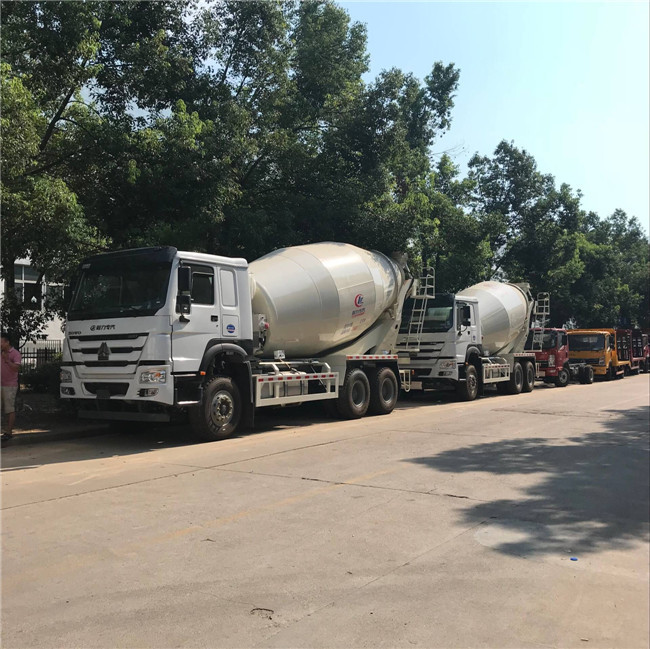

Product picture
