| Place of Origin: | China |
| Brand Name: | FAW |
| Certification: | ISO9001 / CCC |
| Model Number: | CLW5180GJYC5 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 35 day(s) after payment received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 300 units per month |
| Condition: | New | Drive Wheel: | 4x2 |
|---|---|---|---|
| Storage: | Oil | Horsepower: | 150 - 250hp |
| Transmission Type: | Manual | Fuel Type: | Diesel |
| Tank Volume: | 15001 - 30000L | Engine Capacity: | 4764 Ml |
| High Light: | fuel tanker trucks,oil tanker truck |
||
New FAW 4x2 Wheel 15000 Liters Mobile Fuel Dispenser Truck 8450x2500x3200mm
Product description
This FAW 4x2 mobile fuel tanker truck is widely used for oil transportation and refuelling oil, the tanker is made of high quality carbon steel plate, with FAW 189hp engine, we can add oil pump, fuel dispenser, flow meter, oil and gas recovery system, bottom loading system, Level gauge, European standard manhole cover and egergency valves according to your requirements.
Oil tanker truck also called fuel tank truck, fuel tanker truck, fuel oil delivery trucks, oil transport tanker truck, mobile refueling truck, oil fueling vehicles, oil bowser trucks, petrol/diesel carrying vehicles, fuel bowser truck, oil tank trailer, fuel tanker semi trailers, mobile oil tank trucks, etc.
Product parameter
|
Item |
unit |
parameter |
||
|
Vehicle model |
|
FAW Mobile Fuel Truck CLW5180GJYC5 |
||
|
Chassis model |
|
CA5180GYYP62K1L5E5 |
||
|
Overall dimensions |
mm |
8450×2500×3200 |
||
|
|
Fact cubage |
L |
15000 |
|
|
Mass in working order |
kg |
Appro×8000 |
||
|
Body internal dimensions |
mm |
5500×2350×1600 |
||
|
Wheel base |
4700 |
|||
|
F/R track base |
1890/1860 |
|||
|
Approach/departure angle |
° |
17/12 |
||
|
Exhaust/kw |
ml/kw |
4764/139 |
||
|
Max speed |
km/h |
90 |
||
|
Tire specification |
10.00R20 |
Engine type |
CA4DK1-18E51 |
|
|
Traction system |
4×2 |
transmission |
6-speed with over drive |
|
|
Number of axles |
2 |
Electric system |
24v |
|
|
Operation control system |
Electrically hydraulic control |
Allowable passengers in cab |
3 |
|
|
Equipment |
Equipped with 5mm carbon steel tanker. Equipped with pump, PTO, fuel dispenser, reel with 15m hose and oil nozzle. Equipped with fire extinguisher, ladder, grounding wire With European standard aluminum manhole cover and emergency valve. |
|||
|
Engine |
FAW Dachai diesel engine, Euro V, 189HP |
|||
|
Production cycle |
15-20 working days |
|||
|
Warranty |
12 month,from the date of supply |
|||
Function description
1> Oil tank material: carbon steel,stainless steel , aluminum alloy material tank for choose.
2> Transport medium: oil, product oil, edible oil, water, alcohol, etc.
3> With multiple baffle plates in the tank, the tank has the advantages of high intensity, stability, transporting safety etc.
4> Oil pump is installed to suck or discharge oil, with high suction pressure and speed.
5> Computer refueling machine is installed for your choice, with a 15 meter automatic return oil pipe and refueling gun, achieving mobile refueling fuction.
6> According to users’ needs, the tank can be designed as a single compartment or several compartments to contain different oils.
7> According to users’ needs, the side or the rear of the tank can be installed 1 to 3 self-flowing valves.

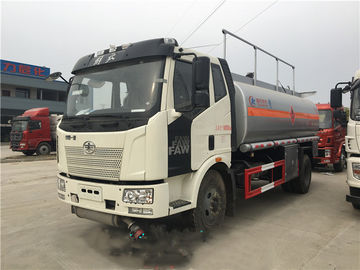

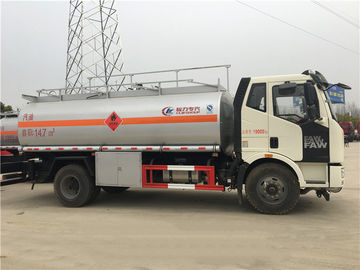

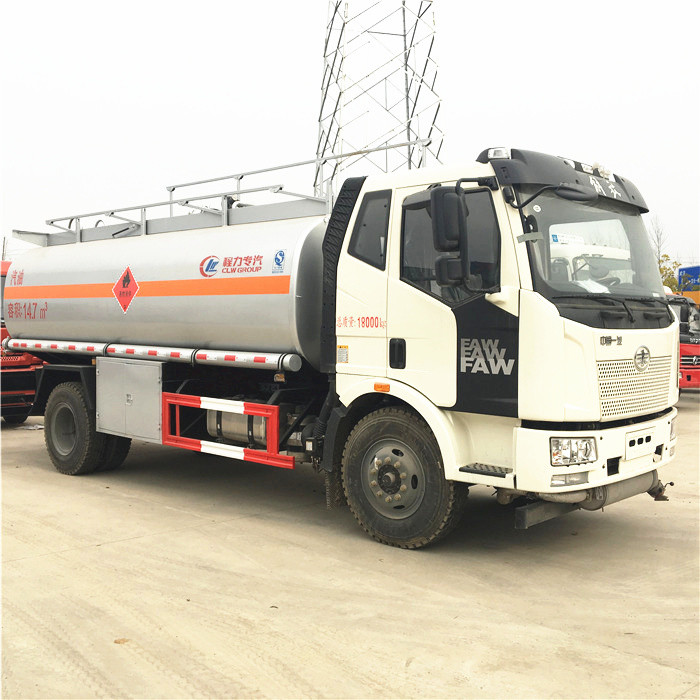

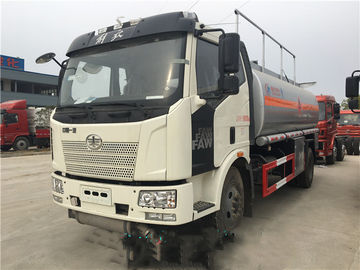

Product picture
