5610mm Span SQ16ZK4Q 16000kg HOWO 6×4 Chassis Knuckle Boom Lorry Crane With 11m

5610mm Span SQ16ZK4Q 16000kg HOWO 6×4 Chassis Knuckle Boom Lorry Crane With 11m

  • 5610mm Span SQ16ZK4Q 16000kg HOWO 6×4 Chassis  Knuckle Boom Lorry Crane With 11m
  • 5610mm Span SQ16ZK4Q 16000kg HOWO 6×4 Chassis  Knuckle Boom Lorry Crane With 11m
  • 5610mm Span SQ16ZK4Q 16000kg HOWO 6×4 Chassis  Knuckle Boom Lorry Crane With 11m
  • 5610mm Span SQ16ZK4Q 16000kg HOWO 6×4 Chassis  Knuckle Boom Lorry Crane With 11m
5610mm Span SQ16ZK4Q 16000kg HOWO 6×4 Chassis  Knuckle Boom Lorry Crane With 11m
Product Details:
Place of Origin: China
Brand Name: HOWO
Certification: ISO/CCC
Model Number: SQ16ZK4Q
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T
Supply Ability: 300 units per month
Contact Now
Detailed Product Description
Warranty: 1 Year Rated Lifting Moment: 40T.M
Slewing Angle: 360° Stabilizer Spread: 5160mm
Dead Weight: 4780kg Rated Loading Capacity: 5000kg
Span: 5610mm
High Light:

truck mounted hydraulic crane

,

telescopic boom truck mounted crane

XCMG SQ16ZK4Q 16000kg HOWO 6×4 Chassis Knuckle Boom Lorry Crane With 11m

Product description



Folding arm type truck crane product introduction

Hanging directly with a hook, generally with two luffing agencies, cargo curve movements. Generally in such a crane can be installed on a variety of accessories to achieve other special operating conditions. In my company's new technology platform to develop high-performance products, with distinctive features and cost-effective:

Safety
• Have multiple job safety protection measures
• Complies with CE, GOST and other safety requirements

Environmental protection
• Optimized structural design for lighter weight
• Optimized hydraulic system with less energy consumption

Reliable
• Multiple protection of the control system
• Strict factory test

Leading
• Advanced product design
• Increasing the level of technology
• High level of manufacturing capacity

Folding arm type truck crane operating system
On the train and get off the use of a separate operation of the valve, the use of rotary valve to select the oil, on and off interlock, effectively reducing the risk of misuse. In addition to the car to operate the seat arrangement of the turntable side, with the turntable infinite rotation, with better control of the field of vision.
On the train and get off together to use a control valve, the crane on the standing control, simple and convenient operation process, with a better vision, the operation can directly see the situation inside the container.



XCMG Truck mounted crane is a kind of hydraulic lift and telescopic system to achieve the goods up and down, rotation, lifting equipment, usually assembled on the truck. Generally by the truck chassis, cargo compartment, take power, crane composition.

1, advanced R & D and analysis means to ensure design reliability.

2, four-link mechanism, lifting capacity stronger.

3, flange telescopic arm connection structure.

4, independent research and development of the rotating body, with a strong driving force, may meet more demand conditions.

5, hexagonal boom technology, good for neutral, cross-section bending ability.

6, the unique floating three-point bridge structure design, effectively reduce the vehicle running when the chassis beam bear the additional force.



Product parameter



Model SQ16ZK4Q Unit
Max Lifting Moment 40 t.m
Max Lifting Capacity 16000 kg
Recommend Power Needed At Recommend Oil Flow 37 kw
Max Oil Flow of Hydraulic System 63 L/min
Rated Pressure Of Hydraulic System 31.5 MPa
Oil Tank Capacity 250 L
Rotation Angle (360°) All Rotation
Crane Weight 5000 kg
Installation Space 1500 mm
Choice of Chassis NXG1310D3ZEX;BJ1317VNPJJ-S5;DFL1311A3 ;
SQ16ZK4Q Lifting capability diagram
Working radius(m) 2.5 4.098 5.898 7.748 9.618 11.518
Lifting capacity(kg) 16000 9600 6600 4850 3500 2600

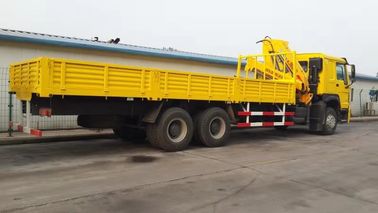

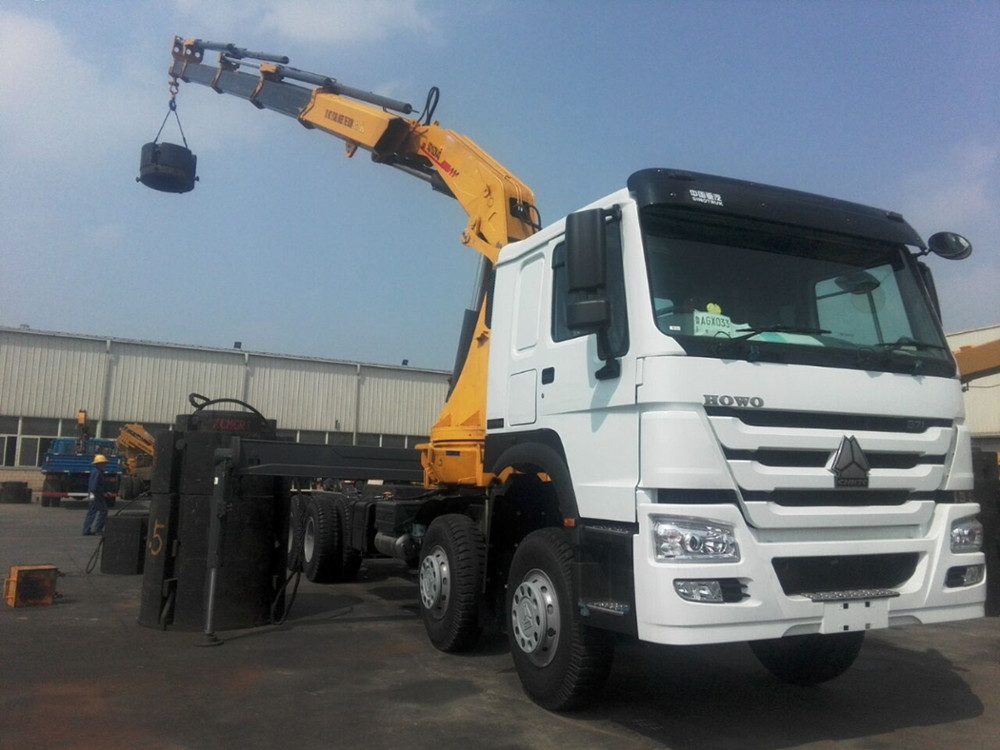

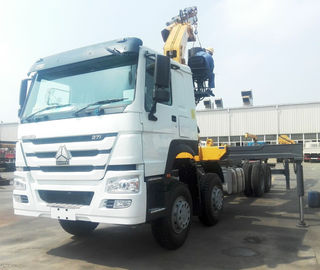

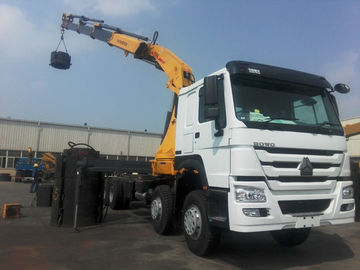

Product picture



5610mm Span SQ16ZK4Q 16000kg HOWO 6×4 Chassis  Knuckle Boom Lorry Crane With 11m 05610mm Span SQ16ZK4Q 16000kg HOWO 6×4 Chassis  Knuckle Boom Lorry Crane With 11m 15610mm Span SQ16ZK4Q 16000kg HOWO 6×4 Chassis  Knuckle Boom Lorry Crane With 11m 25610mm Span SQ16ZK4Q 16000kg HOWO 6×4 Chassis  Knuckle Boom Lorry Crane With 11m 35610mm Span SQ16ZK4Q 16000kg HOWO 6×4 Chassis  Knuckle Boom Lorry Crane With 11m 4
