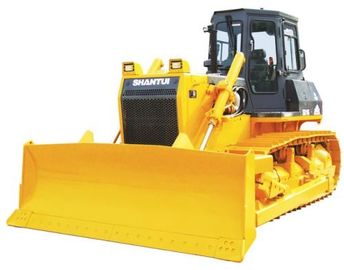

17.5 Tons SHANTUI SD16 Bulldozer Heavy Earth Moving Machinery 120KW With 3556 mm Blade Width

17.5 Tons SHANTUI SD16 Bulldozer Heavy Earth Moving Machinery 120KW With 3556 mm Blade Width

  • 17.5 Tons SHANTUI SD16 Bulldozer Heavy Earth Moving Machinery 120KW With 3556 mm Blade Width
  • 17.5 Tons SHANTUI SD16 Bulldozer Heavy Earth Moving Machinery 120KW With 3556 mm Blade Width
  • 17.5 Tons SHANTUI SD16 Bulldozer Heavy Earth Moving Machinery 120KW With 3556 mm Blade Width
  • 17.5 Tons SHANTUI SD16 Bulldozer Heavy Earth Moving Machinery 120KW With 3556 mm Blade Width
  • 17.5 Tons SHANTUI SD16 Bulldozer Heavy Earth Moving Machinery 120KW With 3556 mm Blade Width
17.5 Tons SHANTUI SD16 Bulldozer Heavy Earth Moving Machinery 120KW With 3556 mm Blade Width
Product Details:
Place of Origin: Shandong,China
Brand Name: SHANTUI
Certification: ISO9001
Model Number: SD16
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: packed in nude
Delivery Time: 30-45days
Payment Terms: L/C, T/T
Supply Ability: 500sets per month
Contact Now
Detailed Product Description
Machine Weight: 17500kg Moving Type: Crawler Bulldozer
Dimension(L*W*H): 5345X3388X3032 Mm Blade Width: 3556mm
Blade Height: 1120mm Width Of Trackshoe: 560mm
High Light:

dirt moving equipment

,

earth digging equipment

SHANTUI Bulldozer SD16 Heavy Earth Moving Machinery 120KW Power



Product Description



Shantui bulldozer series include SD13, SD16,SD2,SD23,SD32. These bulldozers adopt Shantui's patented technologies, including central lubrication, central pressure measurement, and automatic track tensioning technologies, and won the sole national golden quality award in China's bulldozer industry. With multiple working devices and cabs, this product can meet the operation demands for diversified working conditions and is an ideal high-efficiency machine for earth-moving operations and bulk material handling.





Detailed Images



1.The extended track ensures low ground pressure, high reliability and strong traction, contributing to precise operation;
2. The power shift transmission not only ensures smooth power shift, but also reaches target speeds and carries out directional transfers with a single control lever;
3. The wet steering clutch and brake can extend service life. They work interactively, ensuring quick and flexible steering operations;
4. The single control lever can control all blade actions;
5. The drift sealing in the drive wheel, track roller and carrier roller can prevent dust from entering the track system, as well as lubricant leakage, thereby ensuring a long service life;
6. The hexahedron cab features wide visibility, and the insulation materials in the cab can reduce noise and vibrations;
7. The spin type fuel filter and dust separator, the air filters and the other filtration devices can prolong work time and reduce service time;
8. The comfortable cab seat can adjust upward and downward, forward and backward, meeting any positional needs the operator may have;
9. Side engine operation and the combination of a drive/brake operation system and foot brake makes overall operation of the bulldozer more rapid and convenient.

17.5 Tons SHANTUI SD16 Bulldozer Heavy Earth Moving Machinery 120KW With 3556 mm Blade Width 0 17.5 Tons SHANTUI SD16 Bulldozer Heavy Earth Moving Machinery 120KW With 3556 mm Blade Width 1

17.5 Tons SHANTUI SD16 Bulldozer Heavy Earth Moving Machinery 120KW With 3556 mm Blade Width 2 17.5 Tons SHANTUI SD16 Bulldozer Heavy Earth Moving Machinery 120KW With 3556 mm Blade Width 3

17.5 Tons SHANTUI SD16 Bulldozer Heavy Earth Moving Machinery 120KW With 3556 mm Blade Width 4 17.5 Tons SHANTUI SD16 Bulldozer Heavy Earth Moving Machinery 120KW With 3556 mm Blade Width 5



Size Information



Size Chart of This Design

ITEM UNIT SD16F
L×W×H (Ripper not included) mm 5345×3388×3032
Operating weight (Ripper not included) t 17.5
Engine - Shangchai SC11CB184G2B1/ Weichai WD10G178E25
Rated power kW/rpm 120/1850
Gradeability ° 30
Blade type - Straight tilt blade U blade Angle blade
Blade width mm Straight tilt blade 3388×1149 U blade 3556×1120 Angle blade 3970×1040
Dozing capacity m3 Straight tilt blade 4.5 U blade 5 Angle blade 4.3
Ma× drop below ground of blade mm 540
Lift height of blade mm 1095
Ripper type - Three-shank ripper
Ripping depth of ripper mm 572
Lifting height of ripper mm 592
Number of carriers (each side) - 2
Number of track rollers (each side) - 7
Number of track shoes (each side) - 39
Width of track shoe mm 560
Track gauge mm 1880
Ground length and ground pressure mm/MPa 2635-0.062
Pitch mm 203.2
Forward speed km/h 0–3.29
0–5.82
0–9.63
Reverse speed km/h 0–4.28
0–7.59



Packing&Shipping

17.5 Tons SHANTUI SD16 Bulldozer Heavy Earth Moving Machinery 120KW With 3556 mm Blade Width 6

FAQ



Q: How long is your delivery time?

A: Generally it is 7 days if the goods are in stock. or it is 20-30 days if not in stock. If it is customized,it will be confirmed accord ing to order.

Q: What about Quality Control?

A:We have excellent tester, check every piece to ensure the quality is good, and check the quantity is correct before the shipment.

Q: What is your terms of payment?

A: T/T.L/C.Western Union etc.Pay ment<=1000USD, 100% in advance. Pay ment>=1000USD, 30% T/T in advance ,bal ance before shippment.

Q: How to order?

A:Tell us the machine model,part name, part number, quanitty for each item, and then we can send a professional quotation sheet.
