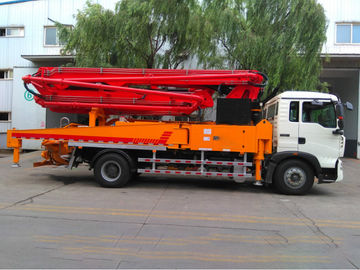

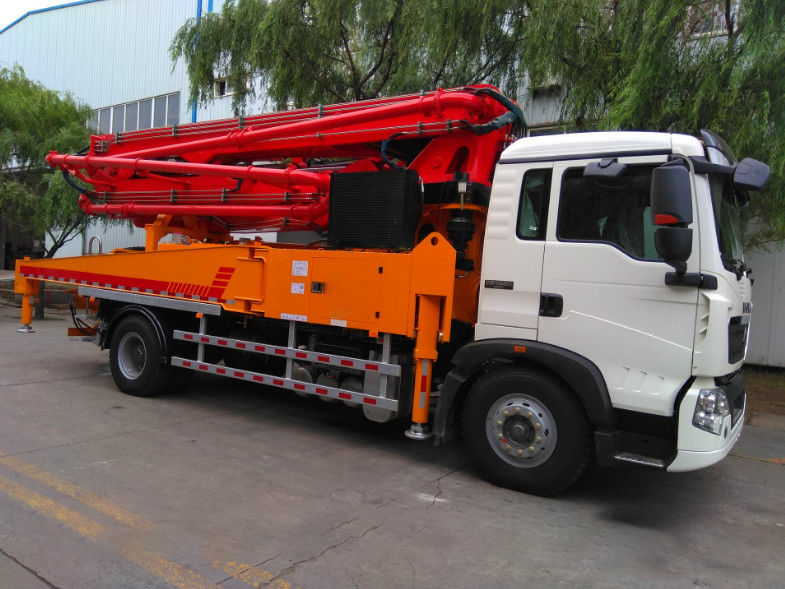

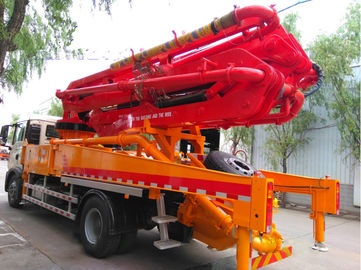

Air Cooling Euro 2 Concrete Pump Truck With 32MPa Rated Working Pressure

Air Cooling Euro 2 Concrete Pump Truck With 32MPa Rated Working Pressure

    • Air Cooling Euro 2 Concrete Pump Truck With 32MPa Rated Working Pressure
    • Air Cooling Euro 2 Concrete Pump Truck With 32MPa Rated Working Pressure
    • Air Cooling Euro 2 Concrete Pump Truck With 32MPa Rated Working Pressure
    • Air Cooling Euro 2 Concrete Pump Truck With 32MPa Rated Working Pressure
  • Air Cooling Euro 2 Concrete Pump Truck With 32MPa Rated Working Pressure

    Product Details:

    Place of Origin: JINAN SHANDONG CHINA
    Brand Name: SINOTRUK
    Certification: ISO/CCC
    Model Number: HOWO

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 UNIT
    Price: Negotiable
    Packaging Details: Nude
    Delivery Time: 30-45 work days
    Payment Terms: L/C, T/T
    Supply Ability: 1000 units/month
    Contact Now
    Detailed Product Description
    Dimension(L*W*H):: 14160X2550X4000 Rated Working Pressure:: 32MPa
    Emission Standard: Euro II Steering Machine: ZF8118
    Capacity:: 6-8m3/h Max. Theor. Output:: 66/111m3/h

    SINOTRUK 6X4 Euro2 Concrete Pump Truck With 32MPa Rated working pressure



    Description:



    Designed on the basis of accurate data from finite element analysis and dynamics simulation analysis, the boom system has a scientific structure and excellent performance. Besides, stress and strain tests are conducted by the national test center to verify the agreement between the calculation and analysis result of the boom structure and its actual working condition. The design of FOCUS Pump Truck adopts an international purchase strategy, and all its key components are world-famous brands which have the following features:



    Packing:



    The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland.The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.And we have rich packing experience and well service.



    Competitive Advantage:



    1.Adopt HW76 Cab single bunk,new type seat,adjustable steering wheel

    2.EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner.

    3.Adopting full hydraulic transmission, it can bring the power of engine into full play amply.

    4.Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission.

    5.Rich experience and well after-sale service.



    specification



    Pumping system Max. Theor. output(high/low pressure) m3/h 66/111
    Max. Theor. concrete output Pressure(high/low pressure) MPa 10/6
    Rated working pressure MPa 32
    Pumping frequency(high/low pressure) min-1 19/32
    Hopper capacity L 600
    Filling height mm 1200
    Hydraulic system type   Open loop
    Distribution valve   S valve
    Oil cylinder dia.×stroke mm φ125×1400
    Concrete cylinder dia.×stroke mm φ230×1400
    Hydraulic oil cooling   Air cooling
    Recommended concrete slump cm 12~23
    Max. aggregate dimension mm 40
    Placing boom Structure type   35-5RZ
    Placing depth m 35
    Horizontal distance m 31
    Placing depth m 26
    Slewing angle   ±270°
    Pipe diameter mm 125
    End hose length mm 3000
    Min. height of opening placing boom mm 9000
    Outriggers span (front×rear×side) mm 6140×7606×8446
    Chassis and the whole machine Chassis model   ZZ5207M521GE1
    Wheelbase mm 5200
    Engine type   MC07.28-50
    Engine power kW 206kw
    Oil tank cubage L 400
    Tail gas exhaust standard   EURO 2
    Overall dimensions mm 9900x2496x3700



    Air Cooling Euro 2 Concrete Pump Truck With 32MPa Rated Working PressureAir Cooling Euro 2 Concrete Pump Truck With 32MPa Rated Working Pressure
