| Place of Origin: | Shandong，China |
| Brand Name: | SHANTUI |
| Certification: | ISO9001 |
| Model Number: | SL50WN |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packed in nude |
| Delivery Time: | 30-45days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500sets per month |
| Condition: | New | Machine Weight: | 17100kg |
|---|---|---|---|
| Type: | Front Loder | Operating Weight: | 5T |
| Bucket Capacity: | 3CBM | Moving Type: | Wheel Loader |
| High Light: | dirt moving equipment,earth digging equipment |
||

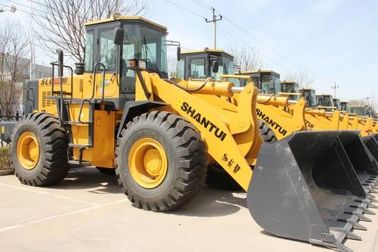

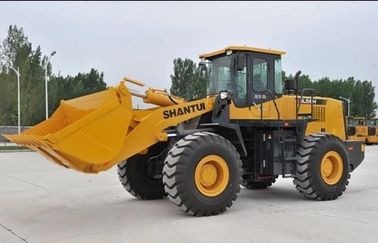

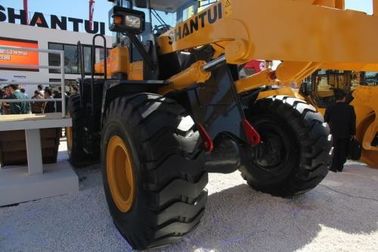

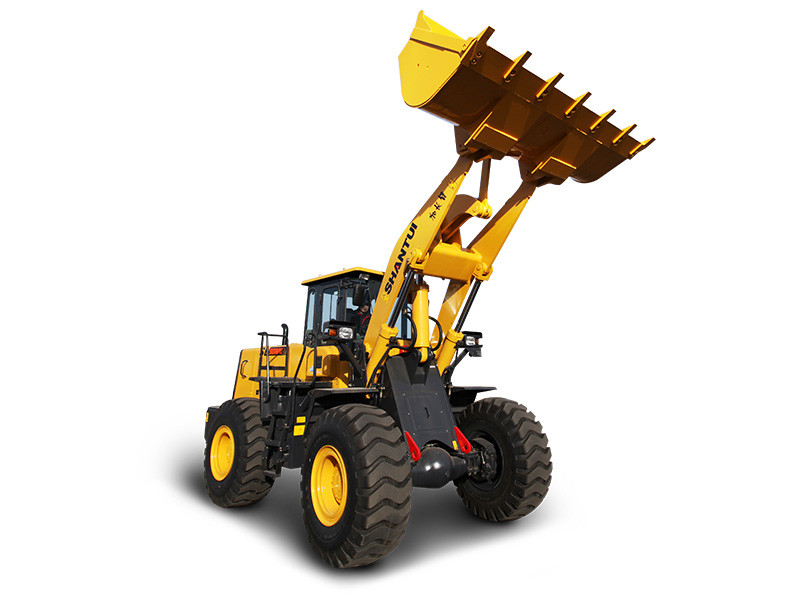

| MODEL | SL50WN |
| Operating weight (kg) | 17100 |
| Rated loading (kg) | 5000 |
| Bucket capacity (m³) | 3 |
| Travel speed (km/h) | 0-38 |
| Engine model | Weichai WD10G220E23 |
| Max. traction force (Kn) | 160 |
| Max. break-out force (Kn) | 185 |
| Overall dimension (LxWxH) | 8005x3026x3410 |
| Tire | 23.5-25 16PR |
| Rated power (kw/rpm) | 162/2000 |
| Wheelbase(mm) | 3250 |
| Dumping clearance (mm) | 3200 |
| Dumping reaching (mm) | 1230 |
| Dumping height(mm) |
Standard boom:3195 Extended boom:3200 Long boom:3700 |
| Dumping reach(mm) |
Standard boom:1155 Extended boom:1230 Long boom:1175 |
Efficient and powerful performance
(1)New generation Blue Engine II energy-saving engine can save the fuel by >10%.
(2) Shantui’s original twin-turbine torque converter, planetary transmission, and drive axle feature good power matching, high drive efficiency, strong overload capacity, high quality, and long life.
(3)The working device is design optimized to promote the lifting force of whole machine by 7%.
(4)The working hydraulic system is design optimized to reduce the total cycle time by 7.5% to 9.9s.
More reliable electric system
New digitalized instruments, high quality electric units, and upgraded and optimized harnesses
(1)The stepping motor type combination dashboard is adopted, of which the most outstanding characteristic is the modular functions.
(2)New dashboard features the instrument malfunction self-examination and system malfunction alarm functions.
(3)The wire diameters, orientations, and the lengths of the loader harnesses and the fixing mode of the frame are adjusted.
More scientific arrangement
(1)The structural arrangement of the whole machine is optimized to achieve more reasonable axle load distribution, with the fuel tank arranged on the rear.
(2)The new ladder design makes more convenient and safer to get on and off the machine.
More driving comfort
The low speed engine, new cab, and added sound insulation material for the engine hood reduce the noise to 85dB.
More convenient maintenances
The integral engine hood, the increased opening space for uplifting side doors, and the outgoing hinge lubricating pipelines make the repairs and maintenances easier.
Multiple working devices
Multiple working devices, including timber grab, bale grab, coal bucket, side dumping bucket, and quartering hammer, are at your choice to adapt to different working conditions.
