|Place of Origin:||JINAN SHANDONG|
|Minimum Order Quantity:||1 UNIT|
|Delivery Time:||30-45 work days|
|Payment Terms:||L/C, T/T|
|Supply Ability:||500 units/month|
|Engine Capacity (ml):||9726||Overall Dimension(mm):||9250X2500X3450|

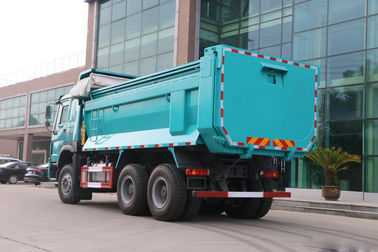

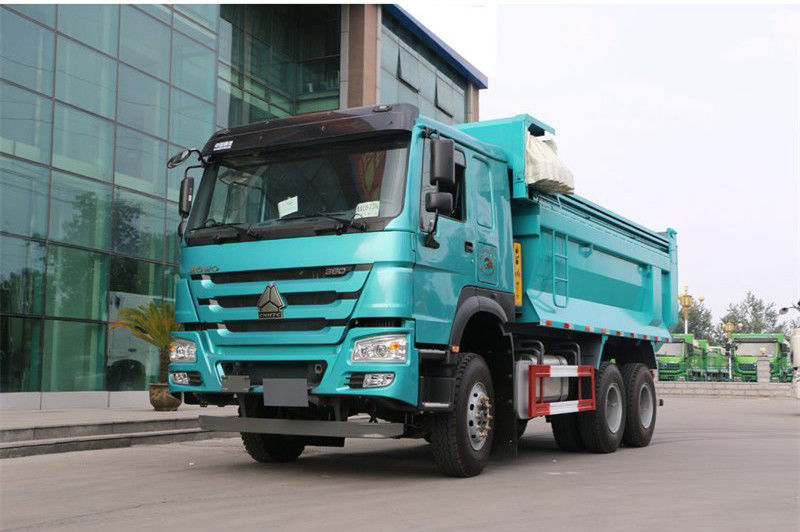

SINOTRUK HOWO ZZ3257N4347A 10 Wheeler Dump Truck With HW76 Single Sleeper Cabin
SINOTRUK HOWO urban intelligent residue dump trucks are the satisfied product with high level standard.
and the full aspect service from order to shipping.We can give customer most suitable advice when customer has special needs for your transportation or construction,the output torque automatically according to loads change.And we are specialized in this area more than 10 years,rich experience and well after-sale service.In the last,technique support and training. Customization service, as per your request, we will customize our production
The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland.The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.And we have rich packing experience and well service.
1. Adopt HW76 Cab single bunk,new type seat,adjustable steering wheel
2. EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner.
3. Adopting full hydraulic transmission, it can bring the power of engine into full play amply.
4. Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission.
5. Rich experience and well after-sale service.
|Main parameters||Gross weight (Kg)||25000|
|Curb weight (Kg)||12500|
|Cab seats||2, 3|
|Number of axles||4|
|Max speed (Km/h)||88|
|Chassis parameters||Chassis model||ZZ3257N4347A|
|Number of wheels (mm)||12|
|Tire specification||12.00R20 ,11.00R20|
|Engine capacity (ml)||9726|
|Emission standard||Euro II|
|Cab||HW76 cab, single sleeping, with air-condition), all-steel forward control, 70° hydraulically tiltable to the front, 2-arm windscreen wiper system with 3 speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers.|
|Operating Condition||long and medium journey, the national road,highway,Most of them are flat roads and road conditions are better,but there may be a poor section of the loading site|
