| Place of Origin: | Shandong，China |
| Brand Name: | SINOTRUK HOWO |
| Certification: | ISO9001 |
| Model Number: | ZZ5317GJBN3267 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packed in nude |
| Delivery Time: | 30-45days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500sets per month |
| Condition: | New | Brand Name: | SINOTRUK HOWO |
|---|---|---|---|
| Drive Type: | 8X4 | Weight: | 31000Kg |
| Dimension(L*W*H): | 10150*2496*3900 | Color: | Optional |
| High Light: | truck mounted concrete pump,mobile cement mixer trucks |
||

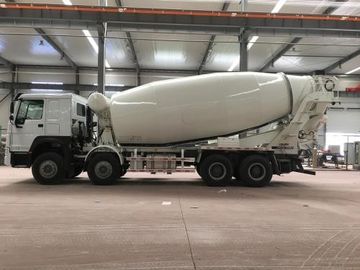

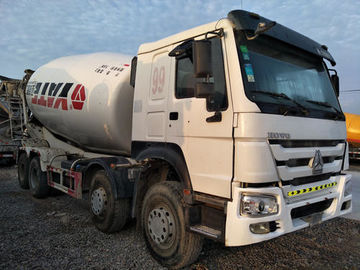

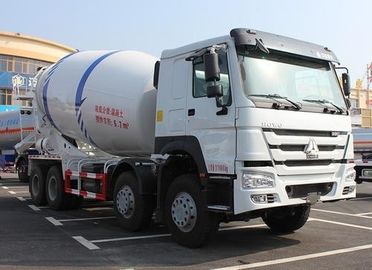

| SINOTRUK HOWO 8X4 MIXER TRUCK LHD / RHD | ||
| Model | ZZ5317GJBN3267 | Driving type: 8X4 |
| Cabin | HW70 standard cab / HW76 lengthened cab, basic equipment: no / one sleeper, new-style seat, adjustable safety steering wheel, EURO new type heating & ventilating system; with large size LCD screen, Germany VDO instrument and electric control block, four points floating air suspension(front coil spring, rear air spring) and shock absorbers for highway vehicle, four points floating air spring suspension and shock absorbers for off-highway vehicle; transverse stability installation, double locking safety belt and external sun shade for various mode. | |
| Engine | Horse power: | 336HP(247KW) /371HP(273KW) |
| Displacement: | 9.726 (L) liter | |
| Max torque: | 1350Nm / 1500Nm at 1100-1600 rpm | |
| Cylinder diameter / stoke: | 126mm/130mm | |
| WD615.69 / WD615.47 diesel engine, EURO 2 emission standard. 6 cylinder in-line with water cooling, turbo-charging & inter-cooling. 4 stroke direct injection diesel engine. Compression ratio: 17:1. Full load fuel consumption: 193g/kwh; Rated revolution: 2200RPM. Engine net weight: 850KG. | ||
| Gear box | Model: | HW13710 / HW19710 |
| Speed: | 10drive, 2reverse. Max torque:1390NM / 1900NM | |
|
HW13710 SINOTRUK 10 speed manual type transmission, the first shift gear ratio: 14.08, small ratio grade difference and big first shift ratio produce an excellent performance on start up Gear ratio:1=14.08, 2=10.47, 3=7.82, 4=5.82, 5=4.35, 6=3.24, 7=2.41, 8=1.80, 9=1.34, 10=1, R1=12.67, R2=2.91 HW19710 SINOTRUK10 speed manual type transmission, the first shift gear ratio: 14.28, small ratio grade difference and big first shift ratio produce an excellent performance on start up. Gear ratio:1=14.28, 2=10.62, 3=7.87, 4=5.88, 5=4.38, 6=3.27, 7=2.43, 8=1.80, 9=1.34, 10=1, R1=13.91, R2=3.18 |
||
| Front axle | 2 X HF9, 18 ton axle load, rigid stub axle with double T- cross section and dish brake. | |
| Rear axle | 2 X HC16, HC16 heavy casting hub reduction drive axle with super loading ability, excellent performance on start-up with heavy load and slope climbing. | |
| Steering | ZF8098 power steering, hydraulic steering with power assistance. | |
| Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance. | |
| Brake | Service brake: Dual circuit compressed air brake. | |
| Parking brake: Spring energy, storage air-break brake. | ||
| Engine brake: Engine exhausted gas brake. | ||
| Electric Equipment | Operating voltage: | 24V negative grounded |
| Battery voltage: | 12V/165Ah,cigar lighter | |
| Tire & Rim | 11.00-20; 12.00-20 | |
| Overall Dimension (mm) | 10,800 X 2,496 X 3,800 (L X W X H) | |
| Mixer Ball Drum | Capacity 12 m³; Material: 16Mn, 5mm high-quality wear-resisting manganese alloy steel | |
| Total Mass (Kg) | 31,000 | |
| Curb Weight (kg) | 15,880 | |
| Maximum Speed (km/h) | 78 | |
| Color | White, red, yellow, green, blue. | |
Chassis
There are a lot of chassis in the mixer, such as HOWO, CAMC, FOTON, Dongfeng, etc.The small square mixer adopts the driving mode of 4X2, which is the driving mode of the larger mixing vehicle, 6X4 and 8X4.
Auxiliary frame
It is mainly composed of main beam, front part and back part, which plays the role of connecting the chassis girder and supporting the mixing drum.
Cleaning system
It mainly consists of water tank, air pressure gauge, valve and pipeline.The main function is to clean the mixing drum, and the cleaning system also has a cooling effect on the hydraulic system.
Hydraulic system
he engine driven by the extractor is converted into hydraulic energy, and then the motor output is mechanical energy, and the reducer drives the mixing drum to rotate.
Mixing drum
The most important part of the vehicle, most of the mixing drum USES a light tone.The mixing drum is loaded with concrete containers. The inner wall of the cylinder is filled with spiral blades, and the concrete is inseparable from the blade in the process of stirring and moving in and out.
Row by Row
It is located at the rear of the car, which is composed of feeding hopper, hopper, main discharge chute, auxiliary discharge chute and bracket locking rod.

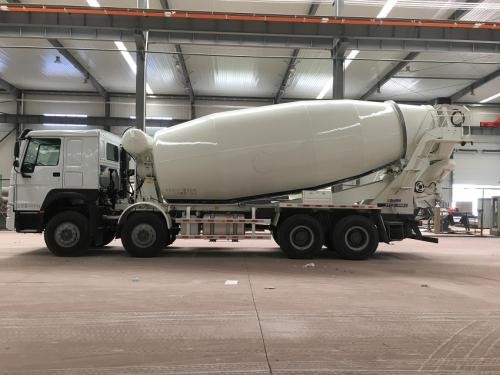

Product Details Show

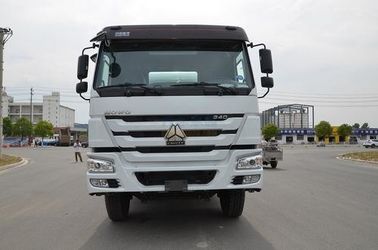

About the cab
Sound insulation,solid and safe.Luxury center console,original air conditioning,give you the most confortable experience.
About main parts
The speed reducer and hydraulic system are international brands,so the bearing capacity is strong and the failure rate is low.The tank is more stable,the discharging speed is faster and the residual rate is now!
We adopt advanced cutting technology to cut steel to reduce the error.
We have strict requirements for assembly, and we will take every screw into account.
The mixing drum is further treated, holes are dug and reassembled.
Spray paint according to customer requirement
Q:Why did I choose you?
A:Because we have rich experience in foreign trade, so we can provide timely and high-quality service to different customers. We adhere to the principle of "customer first".
Q:Is the quality of your products guaranteed?
A:You can rest assured of that.Our products have professional certification, such as ISO, CCC, IAF, etc.Besides, you can come to our factory for a visit and we will have a very good reception.
Q:How about the after-sales service?
A:We also have the general after-sales service.In addition, when you encounter problems that cannot be solved, we will have technical personnel to help you solve them in your country
Q:Do you have a discount on your price?
A:The price of a single product is determined by the product configuration you choose.If your order is large or can be cooperated for a long time, we will give you a satisfactory price.
