Euro II JBC-26 2.6 M3 Concrete Construction Equipment With Yuchai 4102 Engine

Euro II JBC-26 2.6 M3 Concrete Construction Equipment With Yuchai 4102 Engine

    • Euro II JBC-26 2.6 M3 Concrete Construction Equipment With Yuchai 4102 Engine
    • Euro II JBC-26 2.6 M3 Concrete Construction Equipment With Yuchai 4102 Engine
    • Euro II JBC-26 2.6 M3 Concrete Construction Equipment With Yuchai 4102 Engine
  • Euro II JBC-26 2.6 M3 Concrete Construction Equipment With Yuchai 4102 Engine

    Product Details:

    Place of Origin: CHINA
    Brand Name: JBC
    Certification: ISO/CCC
    Model Number: JBC-26

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 UNIT
    Price: Negotiable
    Packaging Details: Nude
    Delivery Time: 30-45 work days
    Payment Terms: L/C, T/T
    Supply Ability: 500 units/month
    Contact Now
    Detailed Product Description
    Power(W):: 78 KW Dimension(L*W*H):: 7800*2750*4100 Mm
    Emission Standard:: Euro II Max. Travel Speed:: 30 Km/h
    Engine Model:: Yuchai 4102 Weight:: 6500 KG

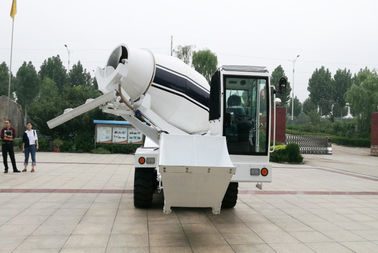

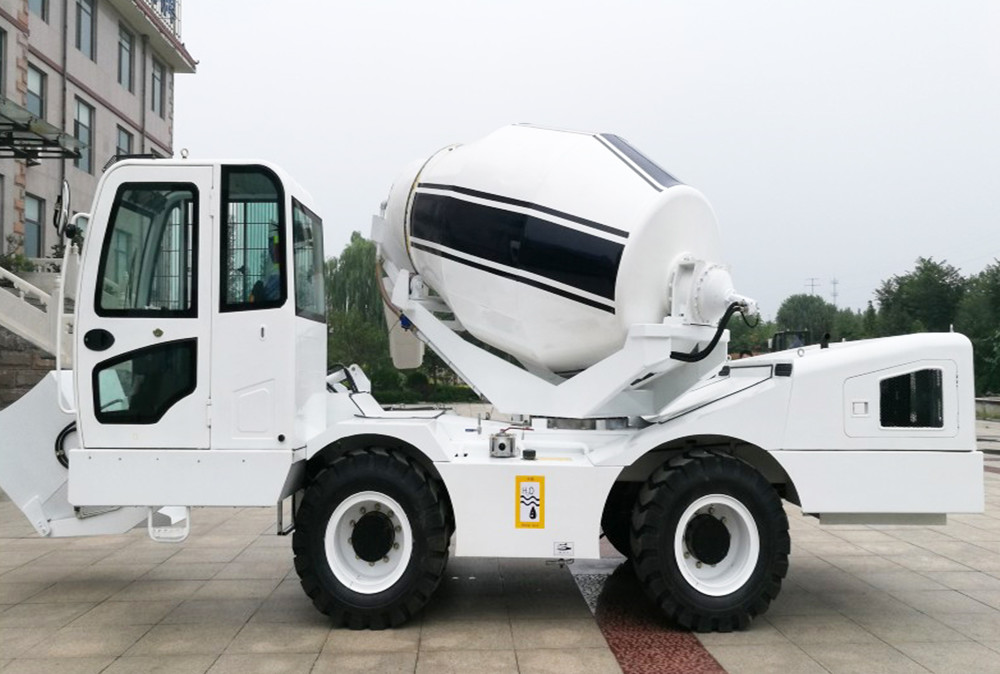

    4x4 Euro II JBC-26 2.6 M3 Self-Feedding Concrete Mixers With Yuchai 4102 Engine



    Description:


    The mixer size is small, which is suitable for limited place and widely used in new rural construction, urban construction, tunnel, airport, seaport, high-speed rail site, remote areas where there are no electric power, middle projects, farmer's houses, building, country road, irrigation, reservoir, mine, rural bridges, high-way road etc, which characterized in saving labors, high efficiency concrete output.

    1.JBC-26 Self Loading Concrete Mixer Truck is a integration of mixer and wheel loader. It can automatically load, measure, mix and discharge concrete mixture.

    2. Cab and mixer drum can be integrated , rotate 270°together, which makes forward-reverse universal. Rolling drum can also be lifted up 20°to make discharge concrete easier. Rotational speed of mixer drum is up to 20 rpm that improves working efficiency by 30%.

    3. It makes mixer truck more safe and stable by using wet brake of front axle, air brake, double brake system and double front tires.

    4. Equipped with change-over switch, the centrifugal water pump can suck water into water tank and mixer drum respectively.

    5. 16mm thick high-strength steel plate, enhances load capacity and stability of the mixer truck.



    Packing:



    Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.The main machine nude, attached parts and tools put into standard export box.Within 20 days deliver the goods to main Port.Ro-Ro ship or bulk ship or according to customer requiring.We have professional forwarding partners.


    Competitive Advantage:



    1.Full hydraulic transmission, can bring the power of engine into full play amply.

    2.Adjust the output torque automatically, can achieve continuously variable transmission.
    3. Small turning radius,convenient to work in confined places.

    4. Single-line air-assisted brake system,safe and reliable.1.The best quality standard guaranteed
    2.Product upgrading and expansion of species
    3.Good quality with competitive prices.

    5. The price is competitive.

    6.Excellent and high-quality control
    7.Long lasting working life time.



    Model

    JBC-26

    Mixing Drum

    Mixing Capacity

    2.6 m³

    Geometrical Capacity

    3.6 m³

    Concrete Output

    2.6m³/batch, 10.4m³/h

    Drum Rotating Speed

    13 rpm

    Drum Rotating Angle

    270°

    Engine

    Model

    YUCHAI 4102

    Type

    In-line, 4-Cylinder, 4-Stroke, Turbo Charged, Water Cooled

    Rated Power

    78 KW (106HP) @ 2400 rpm

    Emission Standard

    Euro II

    Loading Bucket & Discharge Chute

    Loading Bucket Capacity

    0.6 m³

    Loading Times to Full Drum

    5 Times

    Discharge chute

    2 Sets



    With Extender



    Rotation angle range 90°, manual shank

    Water System

    Max. Water suction Volume

    250 L/min. (Self-priming electronic water pump)

    Water tank Volume

    2x250 L

    Mixer

    Max. Travel Speed

    30 km/h

    Gradeability

    40°

    Min. Turning Radius

    5300 mm

    Operating Weight

    6500 kg

    Max. Load

    6200 kg

    Max. Gross Weight

    12700 kg

    Overall Dimension (L×W×H)

    7800*2750*4100 mm

    Fuel Tank Volume

    75 L

    Total Hydraulic System Capacity

    75 L

    Oil Tank Volume

    16 L





















    Euro II JBC-26 2.6 M3 Concrete Construction Equipment With Yuchai 4102 EngineEuro II JBC-26 2.6 M3 Concrete Construction Equipment With Yuchai 4102 Engine
