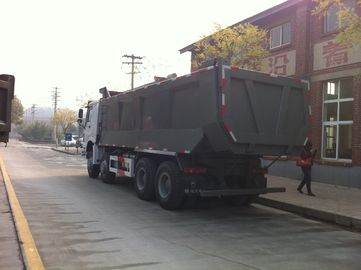

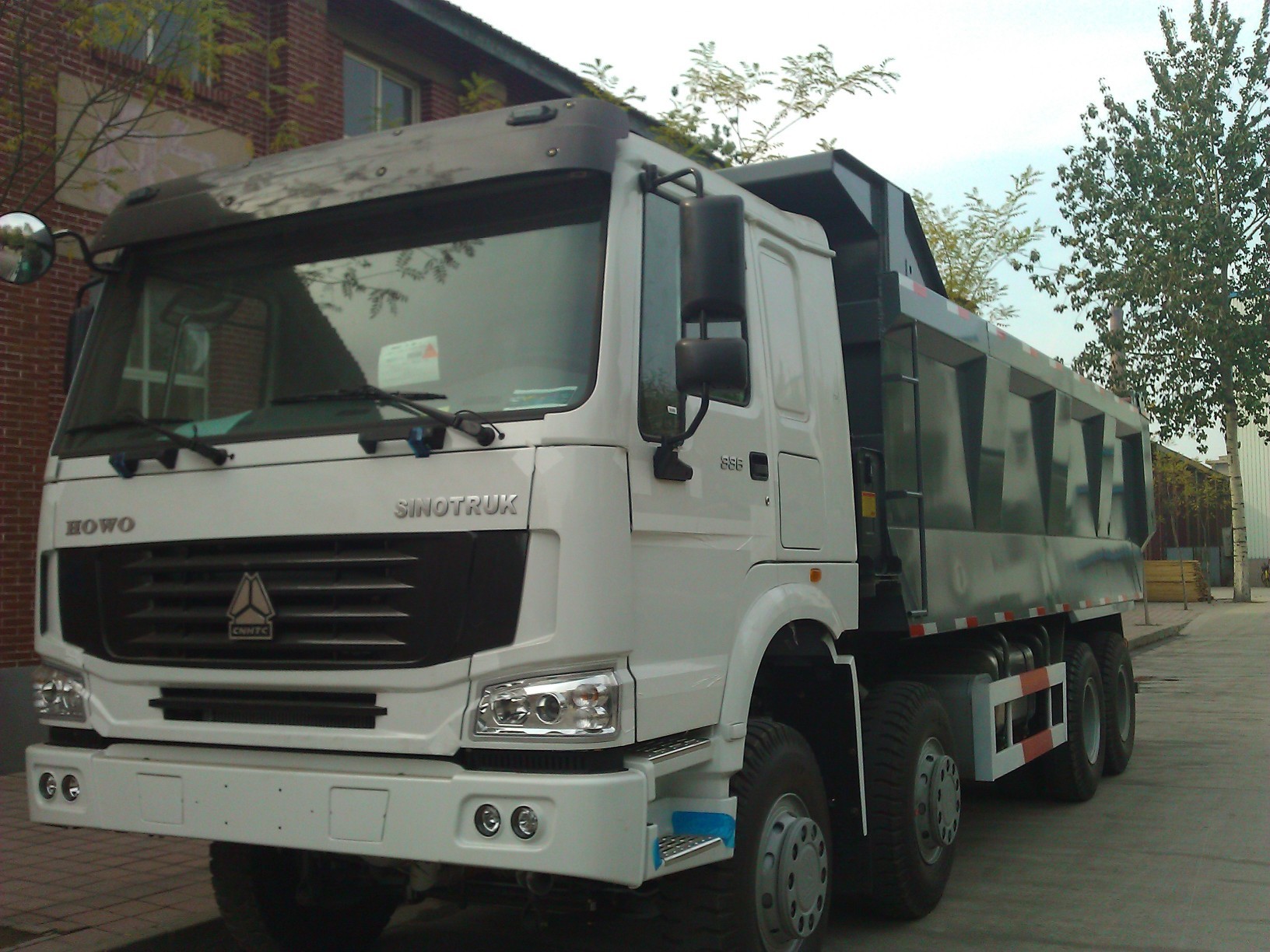

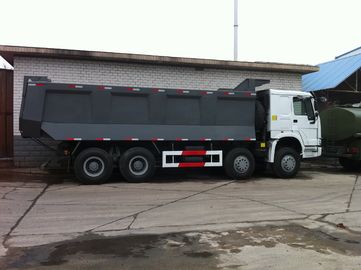

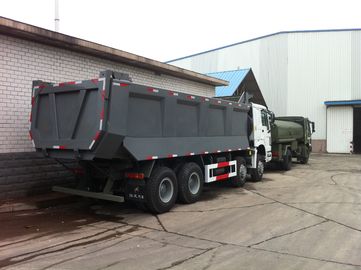

8x4 12 Wheels 336HP Heavy Duty Dump Truck With HW76 Cab And ZF8118 Steering

8x4 12 Wheels 336HP Heavy Duty Dump Truck With HW76 Cab And ZF8118 Steering

    • 8x4 12 Wheels 336HP Heavy Duty Dump Truck With HW76 Cab And ZF8118 Steering
    • 8x4 12 Wheels 336HP Heavy Duty Dump Truck With HW76 Cab And ZF8118 Steering
    • 8x4 12 Wheels 336HP Heavy Duty Dump Truck With HW76 Cab And ZF8118 Steering
    • 8x4 12 Wheels 336HP Heavy Duty Dump Truck With HW76 Cab And ZF8118 Steering
  • 8x4 12 Wheels 336HP Heavy Duty Dump Truck With HW76 Cab And ZF8118 Steering

    Product Details:

    Place of Origin: JINAN CITY OF CHINA
    Brand Name: SINOTRUK
    Certification: ISO9001
    Model Number: ZZ1317N3867A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 UNIT
    Price: Negotiable
    Packaging Details: Nude.
    Delivery Time: 30-45 Work days
    Payment Terms: L/C, T/T
    Supply Ability: 500 units/month
    Contact Now
    Detailed Product Description
    Horsepower:: 336HP Steering:: ZF8118
    Transmission:: HW19710 Front Axle:: HF9
    Rear Axle:: HC16 GVW:: 31000kg

    SINOTRUK 8x4 12 wheels 336HP Dump Truck With HW76 Cab And ZF8118 Steering



    Description:



    HOWO 8x4 336 hp mining dump TRUCK is better than normal dumptruck.The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner.Adopting full hydraulic transmission, it can bring the power of engine into full play amply.Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission.Rich experience and well after-sale service.



    Packing:



    Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.



    Competitive Advantage:



    1. Warranty: one year or 10000 km

    2. Production time: within 35 working days

    3. After-sale service team:highly trained with overseas working experience

    4. The engine adopt 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection.

    5. Adopting full hydraulic transmission, it can bring the power of engine into full play amply.



    Chassis model ZZ3317N4267A



    Body

    Carriage Internal Dimensions(mm) 7800x2300x1500
    Cubage (m3) 26.91
    Steel thickness of Carriage(mm) Floor:10mm/Side:8mm
    Steel Q235
    Hydraulic Lift of Carriage  Front Lift



    Weight in kg

    Kerb weight (Kg) 10400
    Gross vehicle weight (Kg) 31000



    Dimension(mm)





    Dimensions(mm)

    Length(mm) 9850
    Width(mm) 2496
    Height(mm) 3125
    Wheel base (mm) 1800+4200+1350
    Angle( ̊ ) Approach 14
    Departure 47



    Performance

    Maximum driving speed (km/h) 80
    Fuel consumption (1/100 km) 44.1



    Cab

    Model SINOTRUK HW76 Low-floor Lengthen cab
      HW76 cab, (single sleeping, with air-condition), all-steel forward control,70̊ hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds,laminated windscreen with casted-in radio aerial,hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat,with heating and ventilating system,outer sun visor,adjustable roof flap,with stereo radio/cassette recorder,safety belts and adjustable steering wheel,air horn,with 4-point support fully floating suspension and shock absorbers.



    Engine

    Model WD615.69(Euro 2)
    Type 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
    Horsepower 336
    Bore x Stroke 126x130mm
    Valve 2
    Displacement 9.726L
    Transmission SINOTRUK HW19710 transmission ,10 forward and 2 reverse



    Clutch

    SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance



    Steering

    ZF8118 Steering Gear Box ,hydraulic steering with power assistance.(Left hand driving)
    Front Axle SINOTRUK HF9 Front Axle
    Suspension Front overhang 1500mm
    Rear overhang 1000mm



    Rear Axles

    SINOTRUK AC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:5.45



    Brake System

    Service brake:dual circuit compressed air brake

    Parking brake (emergency brake):spring energy,compressed air operating on rear wheels

    Wheels & Tyres Rims 10 hole-steel
    Tyres 12.00R20 radial tyre with 1 Spare tire.
    Wheel tread 2022/2022,2041/2041,1830/1830mm



    Electrics

    Operating voltage:24V,negative grounded

    24V,7.5KW.Starter:24V,7.5 Kw

    28V,1500W.Alternator:3-phase,28V,1500 W

    2x12V,165Ah.Batteries:2x12 V,165 Ah

    horn,headlamps,fog lights,brake lights,indicators and reverse light

    Oil Tank 400L Aluminum alloy fuel tank



    8x4 12 Wheels 336HP Heavy Duty Dump Truck With HW76 Cab And ZF8118 Steering8x4 12 Wheels 336HP Heavy Duty Dump Truck With HW76 Cab And ZF8118 Steering
