HOWO Diesel Self Loading 10 Cubic Meters 6×4 Concrete Mixer Truck With Q345B Material

Product Details:

Place of Origin:	China
Brand Name:	HOWO
Certification:	ISO CCC
Model Number:	HOWO

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiation
Packaging Details:	Nude
Delivery Time:	30-45 work days
Payment Terms:	L/C, T/T
Supply Ability:	500 Unit/Units per Month

Contact Now

Detailed Product Description

Power(W):	273KW	Dimension(LWH):	9800x2500x3960
Concrete Mixing Tank Material:	Q345B	Concrete Filling Ratio:	62%
Output Speed (m3/min):	≥1.2	Weight:	13570
Input Speed (m3/min):	≥2.8	Speed Reducer:	PMP, Italy Brand
High Light:	truck mounted concrete pump , mobile cement mixer trucks

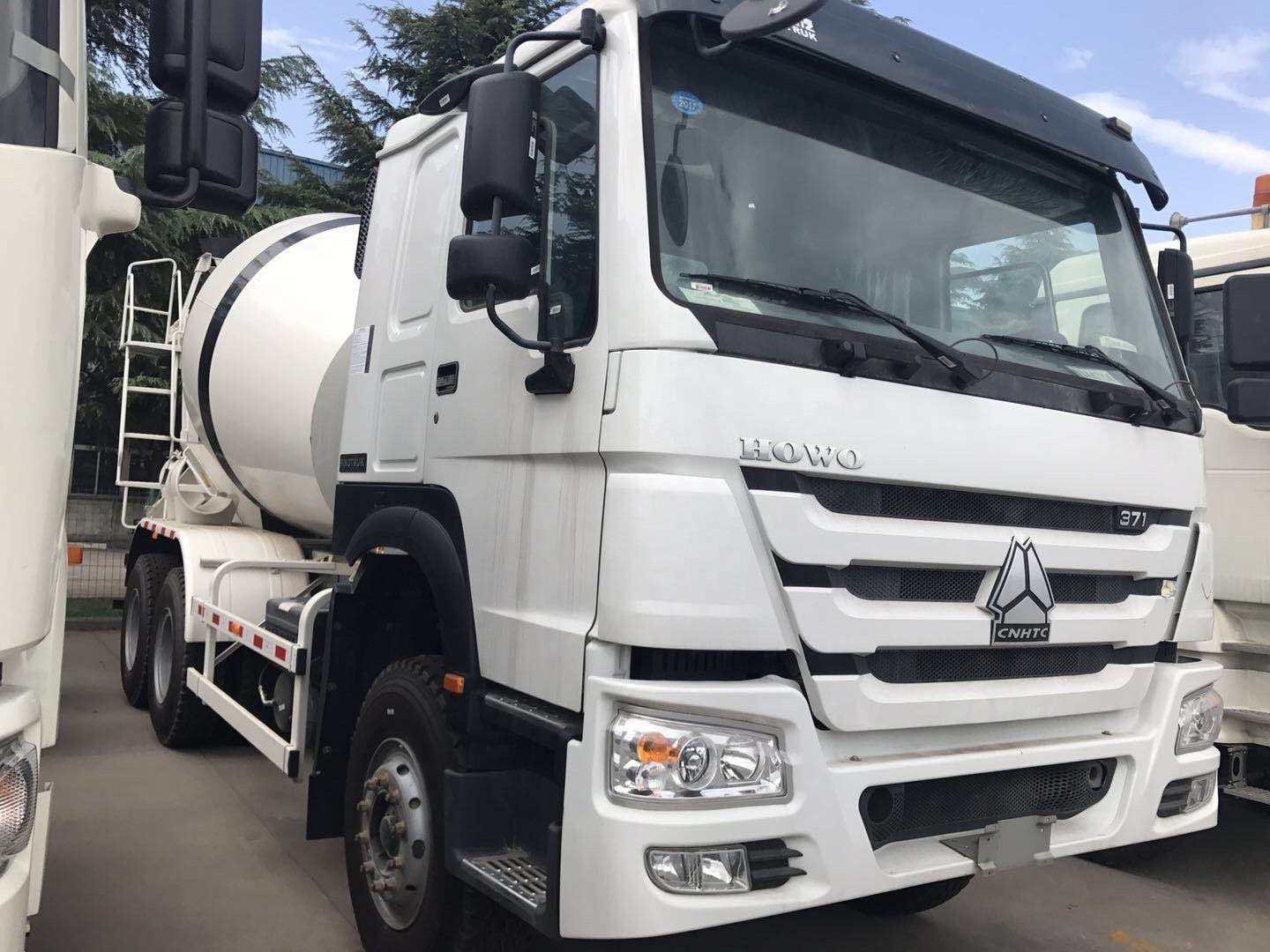

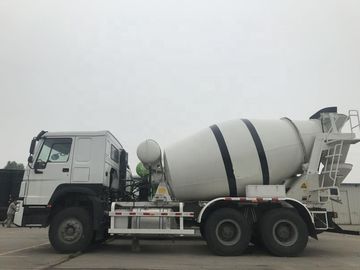

HOWO Diesel Self Loading 10 Cubic Meters 6×4 Concrete Mixer Truck With Q345B Material

Product Description

1) Material selection/Material: WISCO Q345 low alloy steel is used to make the mixer tank blades. Shanghai Baosteel B520JJ or QSTE420TM alloy steel can also be selected for customer requirements.

2) Cutting: All the company's sheet cutting, need to be programmed into the CNC plasma flame cutting machine for cutting and cutting. High efficiency and high precision in the blanking process

3) Cylinder production: There are three key process requirements for mixing car body: one is concentricity, the other is strength, the surface and helix angle of the three cylinder blades

1. Concentricity. Our Company's mixing car body adopts the special “mixing car body splicing tooling”, which effectively guarantees the concentricity of the cylinder through the clamping position of the mixing cylinder flange, head, raceway and barrel connection.

2. Strength. The strength of the tank is mainly guaranteed by the welding process. The company uses automatic welding machine to carry out the ring seam of the tank, the welding of the longitudinal seam, and the welding consumables use the welding wire of a well-known brand.

3. The barrel of the cylinder. The barrel blades are the more critical components of the mixer truck. There are two symmetrically distributed logarithmic spirals in the body of the mixing car. The blades are designed in different sections of the cylinder to have different helix angles, pitches, elevations and chamfers, and eliminate the blades and the wall. The dead angle of the joint can realize three-dimensional space agitation; the feeding and discharging speed is fast, the concrete homogeneity is good, the yield rate is high, and no material is accumulated. The three main technical performance indicators of feed rate, discharge speed, concrete homogeneity and yield rate exceeded the national regulations.

Product Parameter

Concrete mixing capacity		8cbm	10cbm	12cbm	14cbm
Cabin		Standard Cab, left or right hand drive With two bunks, 70° hydraulically tillable to the front
Vehicle Main Dimensions (L x W x H)mm		9400x2500x3920	9600x2500x3950	9850x2525x3950	10500×2496×3980
Wheel base (mm)		3625+1350	3825+1350	4025+1350	1800+3200+1350
Wheel track (front/rear) (mm)		1500/2725	1500/2365	1550/2915	1500/2380
Approach/Departure angle(°)		16/15	19/22	25/13	16/19
Tare Weight		13700	14500	15300	16500
Loading Capacity		27300	26500	25700	33500
Front axles loading capacity		HF9 1x9000			HF9 2x9000
Rear axles loading capacity		HC16 2x16000
Engine	Brand	Weichai
	Model	WD615.47
	Type	4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power (HP)	371HP
	Emission standard	Euro Ⅱ
Gearbox		HW19710 , 10 forwards & 2 reverse
Clutch		Reinforced diaphragm clutch, diameter 430mm
Steering Gear		ZF 8118,power steering, hydraulic steering with power assistance
Fuel tank (L)		300
Tire		12R22.5 tubeless tire , 10 pieces with one spare total 11 pieces.
Brakes		Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
Mixing tank material		16MnQ345
Thickness for end plate		8mm
Thickness for mixer body		6mm
Feeding Speed (m3)		≥3
Discharging Speed (≥m3)		≥2
Leftover Rate		Nearly Zero
Max Rotating Speed (r/min)		14---16
Driving System	Speed Reducer	Italy brand PMP
	Hydraulic Pump	Italy brand PMP
	Hydraulic Motor	Italy brand PMP
Water Tank Capacity (L)		400
