FAW 10 Wheels Hazardous Chemical Tanker Truck With CA1250PK2L5T3BE5A80 Chassis

Product Details:

Place of Origin:	China
Brand Name:	FAW
Certification:	CCC
Model Number:	CA5257G

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	Negotiation
Packaging Details:	Nude
Delivery Time:	30-45 work days
Payment Terms:	L/C, T/T
Supply Ability:	500 pieces per month

Contact Now

Detailed Product Description

Drive Wheel:	6×4	Tank Volume:	10001 - 15000L
Gross Vehicle Weight:	25000	Fuel Type:	Diesel
Thickness:	4-6mm	Material:	Carbon Steel
High Light:	fuel tanker trucks , oil tanker truck

FAW 10 Wheels Hazardous Chemical Tanker Truck With CA1250PK2L5T3BE5A80 Chassis

Product description

Chemical Tanker , is also called Chemical tank truck, chemical truck, mainly used in carrying and storing chemical medium and materials which is acid, alkali, salt, mellow, aldehyde. Moreover, it widely applied in chemical industry, metallurg, environment section, brewage industry, edible industry, pharmacy industry and transportation enterprises which involved above liquid r solid material.

1. Oil tanker trucks mainly include truck chassis, oil tanker, piping system, manhole, vapor recovery system, manifold system, API valve, emergency valve, etc.

2. Tank materials: Optional for carbon steel, stainless steel and aluminum alloy material. With multiple baffle plates in the tank, it has the advantages of high intensity, stability, transporting safety etc.

3.Tank shape: Optional for round square, oval, and round;

4. According to users' needs, the tank can be designed as single compartment or several compartments to contain different kinds of oil or chemicals.

5.Oil pump: Users can choose centrifugal pumps, gear pump, copper gear pump, or stainless steel pump according to actual needs. It has advantage of big flow, high suction pressure and speed.

Product notes

1. FAW 6×4 chassis, 230hp, Euro 3 or Euro 4, LHD or RHD
2 Tank volume: 15000L

3. Factory direct sale

4. Tank materials: carbon steel, carbon steel tank lined with plastic,stainless steel, PP and Aluminum, etc

Product parameter

Vehicle Main Dimensions	Cab type	FAW mid-long cab,single sleeper, and an A/C
	Overall dimension(L×W×H)(mm)	11000X2500X3400
	Axle number	3
	Drive type	6*4
	Steering type	LHD/ RHD with ZF8098 hydraulic power steering
	Max. Drive Speed (km/h)	80
	Curb weight (kg)	25000
	Loading Capacity(kg)/(L)	15000L
Chassis parameter	Chassis Model	CA1250PK2L5T3BE5A80
	Chassis manufacturer:	FAW
	Front/ rear Axle load(Kg)	6750/6750/11500
	Brakes	Service brake: dual circuit compressed air brake
	Tire	6 units of 10.00-20,10.00R20
Engine parameter	Brand	FAW
	Model	BF6M2012
	Fuel type	Diesel
	Horse Power(kw)/(hp)	165KW/230HP
	Displacement(ml)	6060ml
	Emission Standard	Euro3
Superstructure parameter	1. Tanker material:4-6mm carbon steel, stainless steel,aluminium alloy and pure aluminum cans(according to different requirements)
	2. Separate parts for different chemicals,out and in through pump,self-flow.Optional equipment:flowmeter,computer tax-controlled tankers,15m TLJP(self-return), emergency shutdown device.Multichannel wave plate in tanker.
	3. Equipped with self-priming pump,gear pump,double pump.

Packing

Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.The main machine nude, attached parts and tools put into standard export box.Within 20 days deliver the goods to main Port.Ro-Ro ship or bulk ship or according to customer requiring.We have professional forwarding partners.

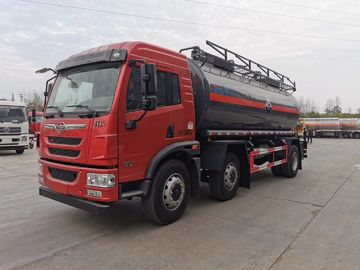

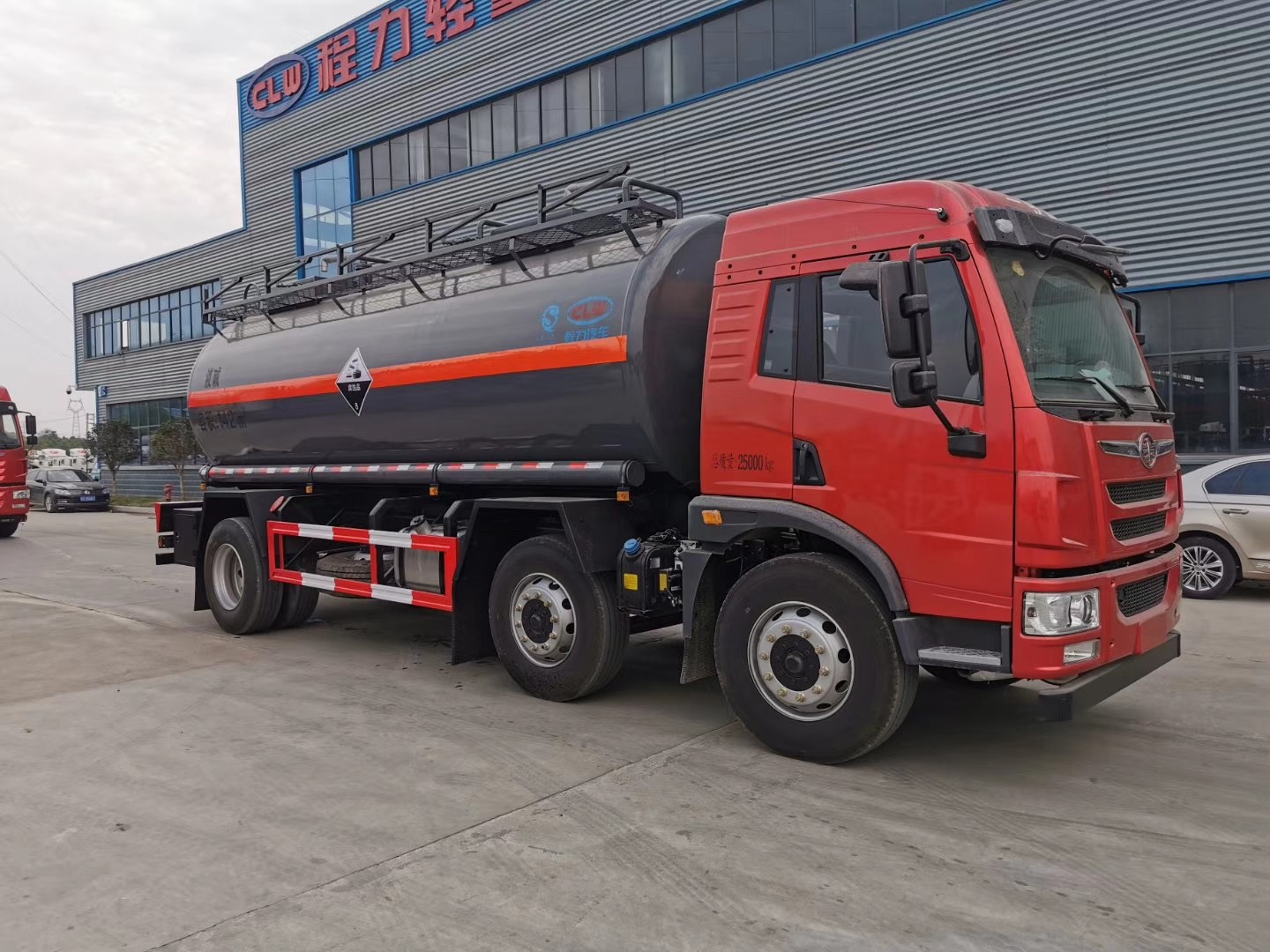

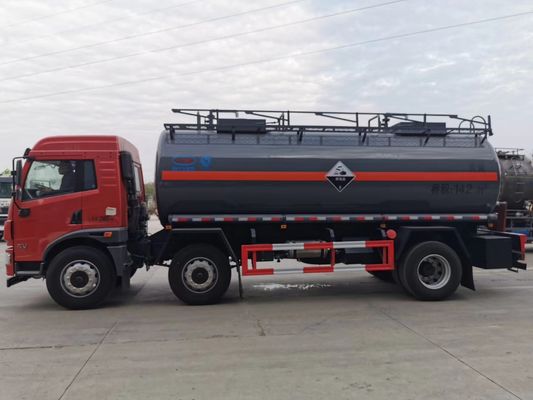

Product photos

FAW 10 Wheels Hazardous Chemical Tanker Truck With CA1250PK2L5T3BE5A80 Chassis 0
