Euro 2 Concrete Construction Equipment 6 Months Warranty CCC ISO9001

Euro 2 Concrete Construction Equipment 6 Months Warranty CCC ISO9001

  • Euro 2 Concrete Construction Equipment 6 Months Warranty CCC ISO9001
  • Euro 2 Concrete Construction Equipment 6 Months Warranty CCC ISO9001
  • Euro 2 Concrete Construction Equipment 6 Months Warranty CCC ISO9001
Euro 2 Concrete Construction Equipment 6 Months Warranty CCC ISO9001
Product Details:
Place of Origin: CHINA
Brand Name: SINOTRUK
Certification: ISO9001
Model Number: ZZ1257M3247W
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: NEGOTIABLE
Packaging Details: NUDE
Delivery Time: 15-45DAYS
Payment Terms: L/C, T/T
Supply Ability: 5000/MONTH
Contact Now
Detailed Product Description
Condition:: New Engine Capacity:: > 8L
Emission Standard: Euro 2 Place Of Origin:: China (Mainland)
Package: Standard Exporting Packing Color: Optional
Dimension(L*W*H): 8700x2500x3965
High Light:

truck mounted concrete pump

,

mobile cement mixer trucks

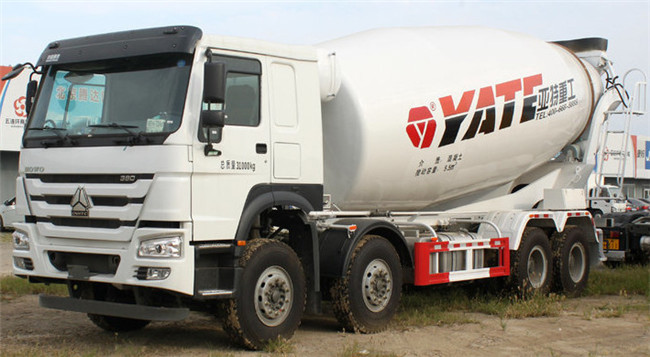

SINOTRUK HOWO 6x4 9m3 concrete mixer truck with pump self-loading condition new



Product Quick Details:



Condition: New

Place of Origin: Shandong, China (Mainland)

Brand Name: SINOTRUK

Model Number: Concrete Mixer Truck

Warranty: 6 Months

Brand Name: HOWO

Dimension(L*W*H):8700x2500x3965

Certification:CCC,ISO9001

After-sales Service Provided: Overseas service center available

Supply Ability: 3000 Unit/Units per Year

Packaging Details

Naked package,shipment by 20FT container, 40FT container,40FT high container,open-top container,flat bed container ,Ro-Ro ship or bulk ship according to the size of product.

Port: Any port of China

Lead Time :

Quantity(Units) 1 - 5 >5
Est. Time(days) 30 To be negotiated



Product Features:

1). Using hydraulic transmission device, do not rely on external force, easy to use, continuous rotation of the tank during transport, commercial concrete does not precipitate, not segregation.
2). Easy to operate, a handle to achieve centralized control of mixing tank, the configuration mature and reliable, easy maintenance.
3). Low noise, no smoke, safe and reliable.
4). The use of high-intensity wear-resistant steel plate mixing tank, durable.
5). Unique inlet setting, easy to spread material.
6). Small size, transport flexibility, easy operation and maintenance, power consumption, energy-saving effect is remarkable.
7). Blade design is reasonable, the discharge residue rate is low.



What can you get from us?

1. Get the new products, and meet your processing requirements.
2. Our quality products help you to win money and earn much time.
3. We always do our best to save cost for you and ensure the quality goods.
4. Our rich-experience technical teams are standing by all the time.
5. You can know the advance overseas technology from our products. Which bring you morecompetitive advantages.

 Product Specification:


1) Low fuel consumption
2) Comfort.safety.reliability
3) mighty and beautiful modeling



Complete vehicle
Chassis model ZZ1257M3247W
Steering type Left hand drive / Right hand drive
Brand Sinotruk HOWO
Driving type 6X4
Wheel base(mm) 3225+1350
Overall dimension(mm) 8700×2500×3965
Curb weight(kg) 12600
Total weight(kg) 25000
Cab HW76(Flat roof,one and half rows cabin,luxury configuration,A/C provided)
Engine Model WD615.62
Max.output (kw/HP) 196/266
Max.torque (N•m) 1100@1100~1600 rpm
Displacement (ml) 9726
Emission standard Euro 2
Gear box HW15710,manual,10 forward & 2 reverse gears
Driving axle HC16,Ratio:5.73,max.load capacity 16000Kg*2
Front axle HF9,max load capacity 9000Kg
Steering gear Germany ZF8118
Chassis suspension NS-07new stabilizing suspension
Air intake system Double pipe cyclone air duct+Oil air filter+Common air filter
Inner trimming
Standard configuration Air suspension seat
Seat heater
Lumbar support to the driver
Adjustable steering wheel
Sun roof
Electrical system
Standard configuration CAN bus intellectual electronic control system
New battery box
Start/stop device under the vehicle
Safety

Standard

configuration

Three points safety belt
Automatic clearance adjustment arm,Tachometer
Comfortable accessories
Cab four points full floating suspension Front and rear coil spring
Standard configuration Cab anti-rolling stabilizing device
Hand accelerator
Others
Aluminum alloy fuel tank Square-400L
Standard configuration Big tool box
Reinforced rim (with HQ mark)
Three in one lock (ignition switch, door and fuel tank)
Type specification 11.00R20
Number of tires 10+1

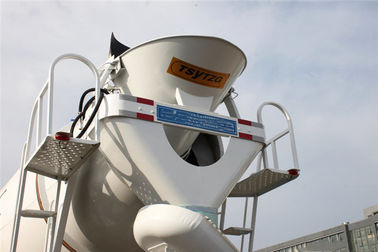

Mixer tank
Material WISCO steel 16MnQ345
Reducer Italy PMP
Hydraulic pump Italy PMP
Hydraulic motor Italy PMP
Radiator Changzhou
Tank capacity 9m3





Euro 2 Concrete Construction Equipment 6 Months Warranty CCC ISO9001 0Euro 2 Concrete Construction Equipment 6 Months Warranty CCC ISO9001 1

Q. What is your payment terms ?
A: 30% TT before produce and 70% TT before shipment . or 100% LC at sight ( irrevocable ).
Q. How long time you could delivery goods to customer ?
A : Generally 25 days of working , after we receive your deposits .
Q:How you can ensure you have deliveried goods to customers ?

A: We will give you the complete shipping information details for you confirmed .
Q. How you could supply customers after sales services ?
A: We will reply you at first time and help you resolve the problems within 24 hours . If it really need us to your local , we will send your professional person to your local to help you resolve problems without any hesitation , supply you all-around after-sales services including machine maintenance and operation and technical training services etc .
