30-100 Tons 4 Axles Heavy Duty Semi Trailers Cargo Livestock Sugar Cane Stake Fence 13m

30-100 Tons 4 Axles Heavy Duty Semi Trailers Cargo Livestock Sugar Cane Stake Fence 13m

  • 30-100 Tons 4 Axles Heavy Duty Semi Trailers Cargo Livestock Sugar Cane Stake Fence 13m
  • 30-100 Tons 4 Axles Heavy Duty Semi Trailers Cargo Livestock Sugar Cane Stake Fence 13m
  • 30-100 Tons 4 Axles Heavy Duty Semi Trailers Cargo Livestock Sugar Cane Stake Fence 13m
  • 30-100 Tons 4 Axles Heavy Duty Semi Trailers Cargo Livestock Sugar Cane Stake Fence 13m
30-100 Tons 4 Axles Heavy Duty Semi Trailers Cargo Livestock Sugar Cane Stake Fence 13m
Product Details:
Place of Origin: China
Brand Name: VEHICLE MASTER
Certification: ISO/CE/ADR/DOT
Model Number: VEHICLE MASTER Fence Truck Trailer
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Nude
Delivery Time: 25-30 work days
Payment Terms: L/C, T/T
Supply Ability: 500 Set/Sets per Month
Contact Now
Detailed Product Description
Material: Carbon Steel Size: 13000mm*2550mm*1800mm
Max Payload: 100T Fence Height: 12000mm Customized
Axle: 2/3 Axles*13/16 Ton Fuwa/BPW Landing Device: JOST 28T Two-speed
Side Wall Height: 600mm Customized King Pin: JOST 2.0 Inch (50mm)/3.5 Inch (90mm)
High Light:

diesel semi trucks

,

low bed semi trailer

30-100 Tons 4 Axles Cargo Livestock Sugar Cane Stake Fence 13m Semi Truck Trailer



Product Description



1. Finite Element analysis used in vehicle to promote product performance.

2. Whole Trailer body Electrophoresis Painting, resistance, painting effect can reach above 10 years.

3. High Stength full thickness Steel,titanium content of 0.98‰, which ensure Beam and frame’s Toughness and strength.

4. 42 tough ribs design, Ensure the safety and carrying capacity of trailer.

5. Customized titanium-containing high-strength steel, which can effectively prevent the deformation of side wall when transportingheavy objects or large cargo.



Product Parameter



Fence Semi Trailer-2 Axles

Fence Semi Trailer-3 Axles

Fence Semi Trailer-4 Axles

Brand:VEHICLE MASTER

Application:Coal/ Livestock/Vegetable/Cargo Loading

Length*Width*Height:1300mm*2550mm*1800mm

Axles:

2*13T/16Ton

Vehicle Master FUWA/BPW/Other

Axles:
3*13T/16Ton
Vehicle Master FUWA/BPW/Other

Axles:
4*13T/16Ton
Vehicle Master FUWA/BPW/Other

Loading Capacity:20-40t

Loading Capacity:30-60t

Loading Capacity:40-100t

OEM/ODM:Available

SKD/CKD Cooperation:Available

Goose Type:Available

Fence Semi Trailer-2 Axles

Fence Semi Trailer-3 Axles

Fence Semi Trailer-4 Axles

Main Beam

Main Beam

Main Beam

Main Beam Material:Q345/T700

Main Beam Material:Q345/T700

Main Beam Material:Q345/T700

Upper Plate Thickness:12mm

Upper Plate Thickness:12mm

Upper Plate Thickness:18mm

Middle Plate Thickness:6mm

Middle Plate Thickness:6mm

Middle Plate Thickness:12mm

Lower Plate Thickness:14mm

Lower Plate Thickness:14mm

Lower Plate Thickness:20mm

Height:500mm

Height:500mm

Height:500mm

Fence Height:1800mm or customized

Fence Height:1800mm or customized

Fence Height:1800mm or customized

Product Size

Product Size

Product Size

L:13000mm*W:2550mm*H:1800mm

L:13000mm*W:2550mm*H:1800mm

L:13000mm*W:2550mm*H:1800mm

Axles

Axles

Axles

2 Axles *13/16 Ton

Vehicle Master/FUWA/BPW/Other

3 Axles *13/16 Ton

Vehicle Master/FUWA/BPW/Other

4 Axles *13/16 Ton

Vehicle Master/FUWA/BPW/Other

Tire

Tire

Tire

12R22.5 (8 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/Other

12R22.5 (12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/Other

12R22.5 (16 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/Other

Rim

Rim

Rim

9.00*22.5 (8 Pieces) Steel/Aluminum

9.00*22.5 (12 Pieces) Steel/Aluminum

9.00*22.5 (16 Pieces) Steel/Aluminum

Leaf Spring

Leaf Spring

Leaf Spring

90mm*13mm*10/90mm*16mm*10

90mm*13mm*10/90mm*16mm*10

90mm*13mm*10/90mm*16mm*10

Kin Pin

Kin Pin

Kin Pin

50#(2")/90#(3.5") JOST/Other Brand

50#(2")/90#(3.5") JOST/Other Brand

50#(2")/90#(3.5") JOST/Other Brand

Landing Gear

Landing Gear

Landing Gear

28 Tons Two Speed,JOST/Other Brand

28 Tons Two Speed,JOST/Other Brand

28 Tons Two Speed,JOST/Other Brand

Vehicle Painting

Vehicle Painting

Vehicle Painting

Electrophoresis paint

Electrophoresis paint

Electrophoresis paint

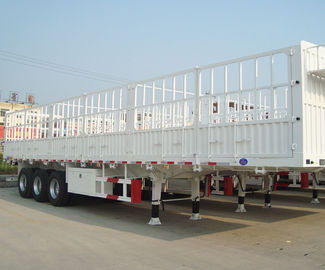

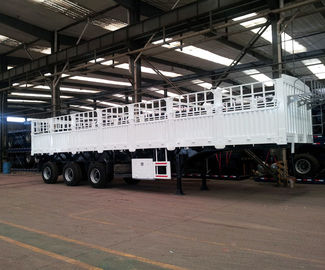

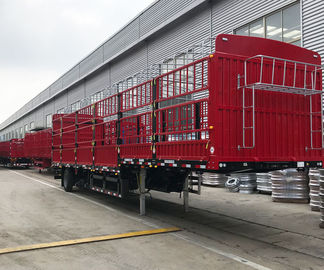

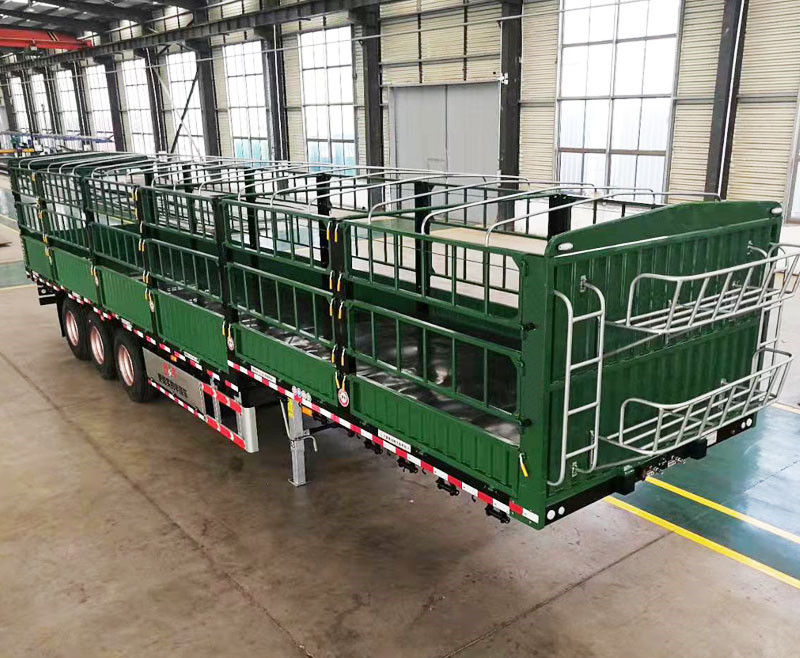

Product Picture



30-100 Tons 4 Axles Heavy Duty Semi Trailers Cargo Livestock Sugar Cane Stake Fence 13m 030-100 Tons 4 Axles Heavy Duty Semi Trailers Cargo Livestock Sugar Cane Stake Fence 13m 130-100 Tons 4 Axles Heavy Duty Semi Trailers Cargo Livestock Sugar Cane Stake Fence 13m 230-100 Tons 4 Axles Heavy Duty Semi Trailers Cargo Livestock Sugar Cane Stake Fence 13m 3
