| Place of Origin: | CHINA |
| Brand Name: | SINOTRUCK |
| Certification: | CCC/ISO9001/CE |
| Model Number: | ZZ3257N |
| Minimum Order Quantity: | 1UNIT |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Package in Nude. |
| Delivery Time: | 30-45 Work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000UNITS/MONTH |
| Model: | ZZ3257N | Cabin: | HW76 |
|---|---|---|---|
| Loading Capacity: | 20-30Tons | Transmission: | HW19710 |
| Steering: | ZF8118 | Color: | Optional |
| High Light: | heavy duty tipper trucks,construction dump truck |
||

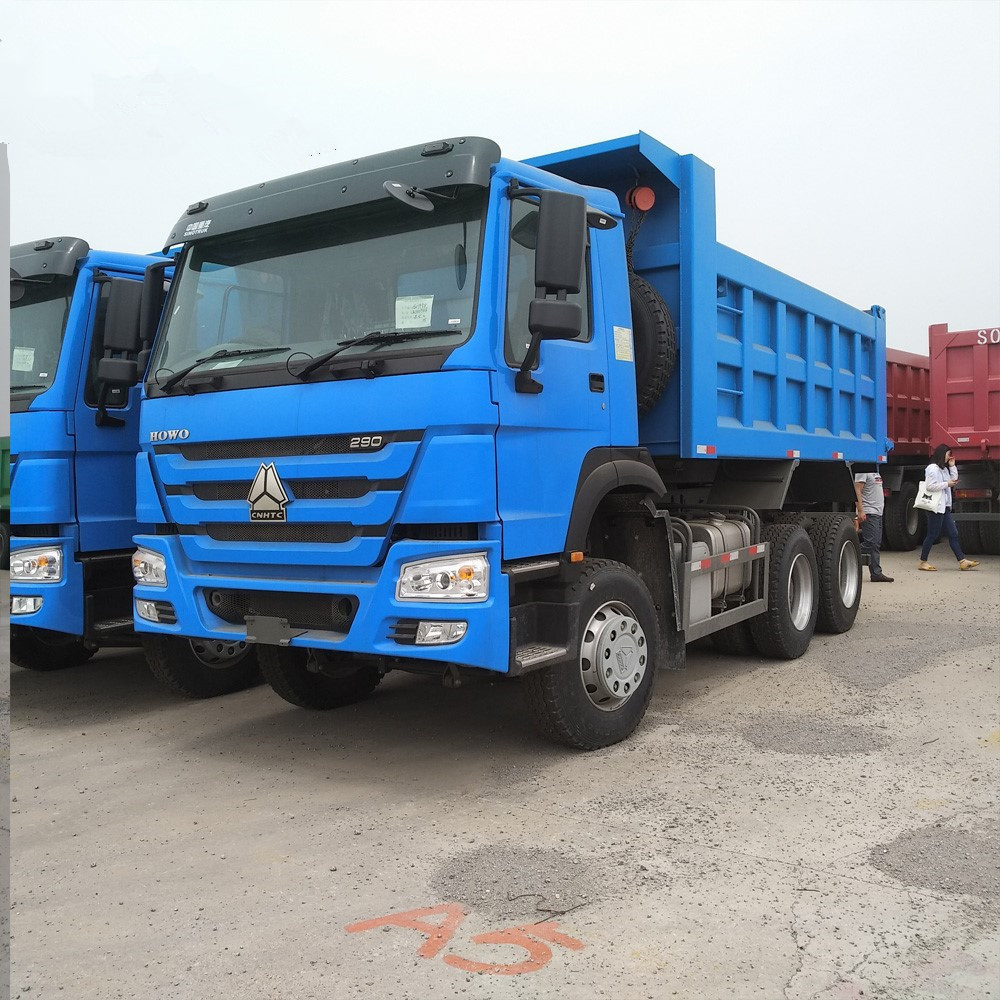

SINOTRUK 6x4 10 Wheeler Heavy Duty Dump Truck With ZF Steering And WD615 Engine
Product Description
According to clients' requirements, we can customize different loading capacity and volume.
The popular dump truck models include: sinotruck HOWO 336hp 6X4 10 wheeler 16 cubic meters dump truck, sino truck 371hp ten wheeler 20 cubic meters dump truck, SINOTRUK howo 8X4 12 wheeler 40tons end dump truck and so on.
Detailed Specification
| SINOTRUK HOWO 6x4 DUMP TRUCK MAIN SPECIFICATIONS | |||||
| Chassis | Model | ZZ3257N3247A | ZZ3257N3447A | ZZ3257N3647A | ZZ3257N3847A |
| Cab | Model | HW76 NEW face , Left Hand Drive, RHD is optional | |||
| Detailed Information | Hw76 cabin, single sleeper, all-steel forward control, 70° hydraulically tillable to the front, 2-arm windshield wiper system with three speeds,laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, exterior sun visor, adjustable roof flap, stereo ratio/cassette recorder, safety belts, adjustable steering wheel, air horn, airconditioner, with 4-point support fully floating suspension and shock absorbers. | ||||
| Engine | Model | WD615.62 | WD615.87 | WD615.69 | WD615.47 |
| Power | 266 hp | 290 hp | 336 hp | 371 hp | |
| KW/rpm | 196/2200 | 213/2200 | 247/2200 | 273/2200 | |
| Displacement | 9.726 L | ||||
| Transmission | HW13710/HW19710 ( 10 forward , 2 reverse , with direct connect PTO ) | ||||
| Front Axle | HR9 (Drum Braking) Max.loading:9000 kg | ||||
| Rear Axle | HC16 (Drum Braking) Max.loading:16000 * 2 kg Ratio : 4.8/5.73 | ||||
| Steering | ZF8118,hydraulic steering with power assistance | ||||
| Braking System | Service brake: dual circuit compressed air brake Parking brake:spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake |
||||
| Electrical System | Operating voltage:24 V, negative grounded Starter:24 V,5.4Kw Alternator:3-phtase,28 V,758 W Batteries:2×12 V,135Ah Cigar-lighter, horn, headlamps, fog lights, indicators and reverse light |
||||
| Wheel Tyre | Tyres: 12.00R20 raidial tyreOption: 315/80R22.5,295/80R22.5,12.00-20 | ||||
| Body Dimension(mm) | 4800x2300x1200 | 5200x2300x1400 | 5600x2300x1400 | 5800x2300x1400 | |
| Body Shape | rectangle shape/ U shape / volve shape / mining body | ||||
| Hydraulic Cylinder | ventral tipping / front tipping | ||||
| Thickness of Body | Floor 8 / 10 mm | Side 8 / 6 / 4 mm | |||
Export Market
Africa:
Egypt, Sudan, Libya, Tunisia, Algeria, Morocco, Azores, Madeira, Ethiopia, Eritrea, Somalia, Djibouti, Kenya, Tanzania, Uganda, Rwanda, Burundi and Seychelles, West Mauritania, Western Sahara, Senegal, Gambia, Mali, Burkina Faso, Guinea, Guinea-Bissau, Cape Verde, Sierra Leone, Liberia, Côte d’Ivoire, Ghana, Togo, Benin, Niger, Nigeria and Canary Islands, Chad, Central Africa, Cameroon, Equatorial Guinea, Gabon, Congo, Democratic Republic of the Congo, Sao Tome and Principe, Zambia, Angola, Zimbabwe, Malawi, Mozambique, Botswana, Namibia, South Africa, Swaziland, Lesotho, Madagascar, Como Luo, Mauritius, Reunion, St. Helena, etc.
South America:
Colombia, Venezuela, Guyana, French Guiana, Suriname, Ecuador, Peru, Bolivia, Brazil, Chile, Argentina, Uruguay, Paraguay, Guatemala, Belize, El Salvador, Honduras, Nicaragua, Costa Rica, Panama, Antigua and Barbuda
South Pacific:
Papua New Guinea, Northern Mariana Islands, French Polynesia, Fiji, Guam, Heard and McDonald Islands, Kiribati, Cocos Islands, Cook Islands, Republic of the Marshall Islands, American Samoa, Microrony West Asia, Nauru, Niue, Norfolk Island, Palau, Pitcairn Islands, Samoa, Christmas Island, Solomon Islands, Tonga, Tuvalu, Tokelau, Wallis and Futuna, Vanuatu, New Caledonia.
Asia countries:
North Korea, Mongolia, including Vietnam, Laos, Cambodia, Myanmar, Thailand, Malaysia, Singapore, Indonesia, Philippines, Brunei, Sri Lanka, Maldives, Pakistan, India, Bangladesh, Nepal, Bhutan, Afghanistan, Iran, Azerbaijan, Armenia, Georgia, Turkey, Cyprus, Syria, Lebanon, Palestine, Jordan, Iraq, Kuwait, Saudi Arabia, Yemen, Oman, United Arab Emirates, Qatar, Bahrain, Turkmenistan, Uzbekistan, Kyrgyzstan, Tajikistan, Kazakhstan.
Products Photos
