| Place of Origin: | CHINA |
| Brand Name: | SHACMAN |
| Certification: | CE |
| Model Number: | F3000 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | NUDE |
| Delivery Time: | 15-30 DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 Unit/Units per Month |
| Drive Wheel: | 8x4 | Horsepower: | 351 - 450hp |
|---|---|---|---|
| Gross Vehicle Weight: | 31000 | Capacity (Load): | 31-40 |
| Emission Standard: | Euro 2 | Engine Capacity: | > 8L |
| Dimensions (L X W X H) (mm): | 10329x2500x3450mm | ||
| High Light: | heavy duty tipper trucks,construction dump truck |
||

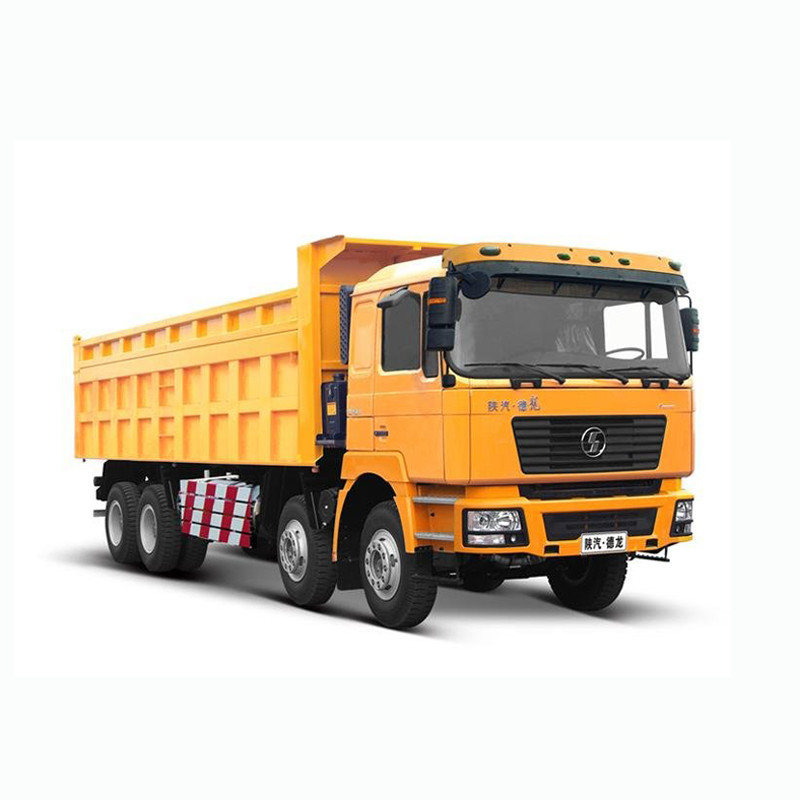

SHACMAN F2000 Tipper 8X4 Dump Truck F3000 31-40 Tons Euro 2
Quick Details
Drive Wheel:8x4
Capacity (Load):31 - 40t
Horsepower:351 - 450hp
Condition:
New
Transmission Type:
Automatic
Emission Standard:
Euro 2
Fuel Type:
Diesel
Engine Capacity:
> 8L
Gross Vehicle Weight:
31000
Place of Origin:
Shandong, China
Brand Name:
SHACMAN
Dimensions (L x W x H) (mm):
10329x2500x3450mm
Cab:
F3000 Cab,Single bed,Air conditioner
Kerb mass(kg):
14600kg
Rated mass(kg):
15930kg
Payload(kg):
40000kg
Approach / departure angel:
28/21
Max.gradeability(%):
28
Enginebrand:
Weichai Engine
Engine model:
WP10.340E32,340hp
Rated output power:
250kw
Wheel base(mm):
1800+3575+1400mm
Product Description
The f2000 Series products are the latest success of SHACMAN. Introduced in 2009 it quickly became one of our top selling products. The f2000 has an improved driver's cab utilizing advanced technologies from the German truck giant, MAN. The power of the f2000 series comes from Wei Chai Euro III, IV engines or the Euro III, IV and V electric control engines Made by Cummins. f2000 series utilize technologies introduced by MAN in its front/rear axles and its suspensions, cooling system of the chassis, the intake/exhaust systems and the chassis structure/layout. Powerful, safe, reliable and comfortable, the f2000 is a refined product line positioned in the high-end market of the truck manufacturing industry. The f2000 series has many optional equipments to customize from; it is a new generation of products that meets the toughest demands and requirements for all purposes under any working condition.
| SHACMAN F3000 8×4 DUMP TRUCK | |
| Cab | F3000 Cab,Single bed,Air conditioner |
| Dimension(Lx W xH)(mm) | 10329×2500×3450mm |
| Total mass(kg) | 31000kg |
| Kerb mass(kg) | 14600kg |
| Rated mass(kg) | 15930kg |
| Payload(kg) | 40000kg |
| Approach / departure angel | 28/21 |
| Front/rear suspension(mm) | 14525/2029 |
| Max. gradeability (%) | 28 |
| Engine brand | Weichai Engine |
| Engine model | WP10.340E32,340hp |
| Rated output power | 250kw |
| Torque(N.m r. p. m) | 1250N.m/1200-1600rpm |
| Rated speed(rpm) | 2200rpm |
| Emission Standard | E-II |
| Fuel type | Diesel |
| Displacement(L) | 9.726L |
| Driving type | 8×4 |
| Axle number | 4 |
| Wheel base(mm) | 1800+3575+1400mm |
| Clutch | φ430 diaphragm spring |
| Gearbox | FAST 10JSD140,10 Forward&2 Reverse,Manual |
| PTO | QH50 |
| Front axle | 7.5T MAN 2×7500kg |
| Rear axle | 16T MAN 2×16000kg |
| Ratio | 5.262 |
| Steering | technology left-hand drive(LHD) |
| Type | 12.00R20,12+1pc |
| Tank capacity(L) | 380L |
| Max. speed (km/h) | 82km/h |
| Color | Optional |
| Cargo box size(mm) | 7400×2300×1500mm bottom10mm,side8mm |
| Lifting style | Front lifting(made in china) |

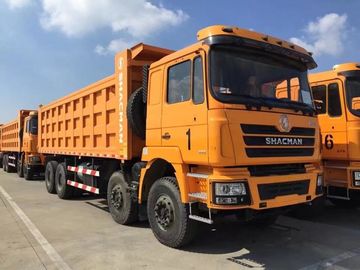

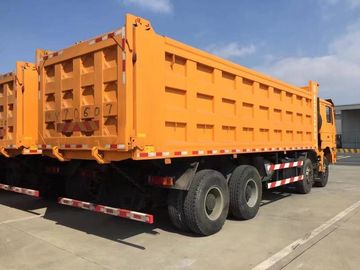

Product pictures
