Low Fuel Consumption Heavy Mining Trucks Euro Two 266hp 4x2 6 Wheels Mini Dumper

Low Fuel Consumption Heavy Mining Trucks Euro Two 266hp 4x2 6 Wheels Mini Dumper

  • Low Fuel Consumption Heavy Mining Trucks Euro Two 266hp 4x2 6 Wheels Mini Dumper
  • Low Fuel Consumption Heavy Mining Trucks Euro Two 266hp 4x2 6 Wheels Mini Dumper
  • Low Fuel Consumption Heavy Mining Trucks Euro Two 266hp 4x2 6 Wheels Mini Dumper
  • Low Fuel Consumption Heavy Mining Trucks Euro Two 266hp 4x2 6 Wheels Mini Dumper
Low Fuel Consumption Heavy Mining Trucks Euro Two 266hp 4x2 6 Wheels Mini Dumper
Product Details:
Place of Origin: China
Brand Name: HOWO
Certification: CCC/ISO
Model Number: ZZ3167M3811
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T
Supply Ability: 300 Unit/Units per Month
Contact Now
Detailed Product Description
Drive Wheel: 4x2 Horsepower: 251 - 350hp
Gross Vehicle Weight: 7980 Transmission: HW19710, 10F & 2R
Front Axle: HF9 Tyre: 12.00R20, Radial Tyres With One Spare Tyre
Capacity (Load): 1 - 10t Emission Standard: Euro 2
High Light:

diesel dump truck

,

sinotruk howo dump truck

SINOTRUK HOWO Dump Truck Euro 2 266hp 4x2 6 Wheels Mini Dumper

Product Description



This type truck is the famouce brand of CNHTC group in abroad marketing. it also have a large exporting quantity in recently years, and make a big effort for local infrastructure construction.This type truck need more wide road for the lenght of the whole truck is longer than 6X4 and 4X2 type truck. full expression of heavy duty truck concept. Delicate design, excellent technology, which have the advantages of Comfort, safety, reliability, electronic level geared to international level. Low fuel consumption.
It is super art in domestic and abroad auto field, full expression of heavy duty truck concept. Delicate design, excellent technology, which will dazzle you as groundbreaking works
Be comprehensive with Euro2 and Euro3 engine equipped.
Driving type: 4×2, 4×4 6×2, 6×6 ,6×4, 8×4 and 10×4 etc.
Power range: 266PS - 420PS.howo Leader In Heavy Duty Truck Industry Driving King On The Road
New HOWO dump truck, High Quality , More Lighter,
High Level Comfortable:Cabin 4 point full -floating air suspension ,adjustable steering wheel with various height sand angles.air suspension seat, Cruise Constant Speed System,MINI Player .electrical control glass and mirror,ATM Gearbox bunk with AC.



Product Parameter



Product Name

SINOTRUK HOWO 4x2 Mini Dumper Truck

Chassis Model

ZZ3167M3811

Driving Type

LHD (RHD is optional)

Cabin

HW70, no sleeper and two seats, double arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with four piont support floating suspension+shock absorber.

Engine

Make: SINOTRUK
Diesel 4-stroke direct injection diesel engine
Engine model: WD615.62, Euro 2, 266 HP
6-cylinder in-line with water cooling, turbo-charging and intercooling
Displacement: 9.726 L

Transmission

HW19710, 10F & 2R, with PTO
Ratio:14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)

Steering

ZF power steering, modol ZF8118, hydraulic steering with power assitance

Front Axle

HF9,1x9000 KGS

Steering with doubleT-cross section beam

Rear Axle

HC16, 16000 KGS

Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles.

Ratio:5.73

Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange

Chassis

Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members
Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer

Brake

Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake

Electrics

Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tyres

12.00R20, radial tyres with one spare tyre

Fuel Tank

300L

Cargo Body

4200*2300*1500 mm, 14.5 CBM, Floor 8mm Side 6mm

Overall Dimension

6980*2500*3190mm



Product Advantages



1.Competitive price, cost-effective
2.With all kinds of truck model, which can fulfil your requirements
3.All kinds of cargo body structure can be designed and produced according to your request,make it have light curb weight , high rigidity , high loading capacity
4.Using the high strength steel, make it has a long service life
5.The optimized hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
6.Excellent apperance of cabin, safety, reliable
7.Quick and efficient spare parts supply bring you more convenient
8.You can choose cargo body with Front lifting type or Middle lifting type which you prefer
9.The hydraulic system using HYVA brand or Domestic famous brand
10.Low fuel consumption
11.Strong enough engine
12.Fast delivery time, we can arange production according to your needs exactly and quickly
13.Professional import and export dealing precedure, make customs clearance more high efficiency

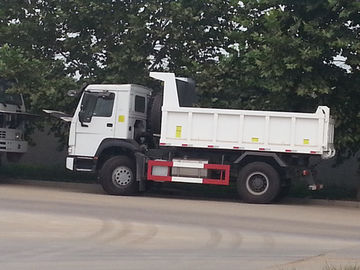

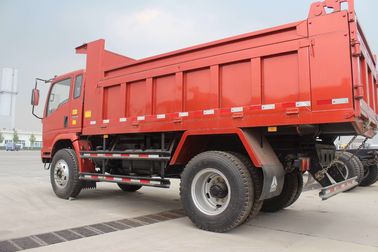

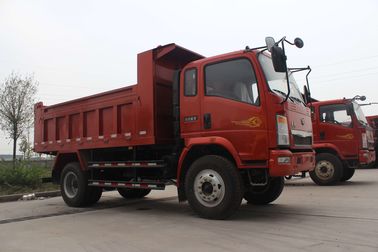

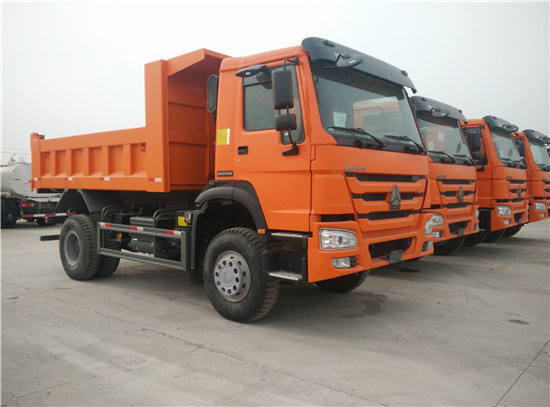

Product Picture



Low Fuel Consumption Heavy Mining Trucks Euro Two 266hp 4x2 6 Wheels Mini Dumper 0Low Fuel Consumption Heavy Mining Trucks Euro Two 266hp 4x2 6 Wheels Mini Dumper 1Low Fuel Consumption Heavy Mining Trucks Euro Two 266hp 4x2 6 Wheels Mini Dumper 2Low Fuel Consumption Heavy Mining Trucks Euro Two 266hp 4x2 6 Wheels Mini Dumper 3
