Euro 4 380HP Heavy Duty Dump Truck ZZ3317N3867D1 With 12.00R20 Type

Euro 4 380HP Heavy Duty Dump Truck ZZ3317N3867D1 With 12.00R20 Type

    • Euro 4 380HP Heavy Duty Dump Truck ZZ3317N3867D1 With 12.00R20 Type
    • Euro 4 380HP Heavy Duty Dump Truck ZZ3317N3867D1 With 12.00R20 Type
    • Euro 4 380HP Heavy Duty Dump Truck ZZ3317N3867D1 With 12.00R20 Type
    • Euro 4 380HP Heavy Duty Dump Truck ZZ3317N3867D1 With 12.00R20 Type
  • Euro 4 380HP Heavy Duty Dump Truck ZZ3317N3867D1 With 12.00R20 Type

    Product Details:

    Place of Origin: China
    Brand Name: HOWO
    Certification: ISO/CCC
    Model Number: ZZ3317N3867D1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negotiation
    Packaging Details: Nude
    Delivery Time: 30-35 work days
    Payment Terms: L/C, T/T
    Supply Ability: 300 Unit/Units per Month
    Contact Now
    Detailed Product Description
    Drive Wheel: 8x4 Horsepower: 351 - 450hp
    Transmission Type: Manual Fuel Type: Diesel
    Gross Vehicle Weight: 12460 Transmission: HW19710, 10F & 2R
    Front Axle: HF9 Tyre: 12.00R20, Radial Tyres With One Spare Tyre
    High Light:

    heavy duty tipper trucks

    ,

    construction dump truck

    SINOTRUK Euro 4 380HP 8x4 HOWO Dump Truck ZZ3317N3867D1 With12.00R20 Type

    Description



    SINOTRUCK SINOTRUK Euro 4 380HP 8x4 SINOTRUK HOWO Dump Truck Philippines
    Which is the most famous brand of heavy duty truck in China. It's also the biggest exported quantity of China brand trucks in all over the world. Abundant truck products can meets customers demands very well.
    This type truck is the famous brand of CNHTC group in abroad marketing. it also have a large exporting quantity in recently years, and make a big effort for local infrastructure construction.This type truck need more wide road for the lenght of the whole truck is longer than 6X4 and 4X2 type truck. full expression of heavy duty truck concept. Delicate design, excellent technology, which have the advantages of Comfort, safety, reliability, electronic level geared to international level. Low fuel consumption.
    It is super art in domestic and abroad auto field, full expression of heavy duty truck concept. Delicate design, excellent technology, which will dazzle you as groundbreaking works
    Be comprehensive with Euro2 and Euro3 engine equipped.
    Driving type: 4×2, 4×4 6×2, 6×6 ,6×4, 8×4 etc.
    Power range: 266PS - 420PS.howo Leader In Heavy Duty Truck Industry Driving King On The Road
    High Level Comfortable:Cabin 4 point full -floating air suspension ,adjustable steering wheel with various heightsand angles.air suspension seat, Cruise Constant Speed System,MINI Player .electrical control glass and mirror,ATM Gearbox bunk with AC.
    Top configuration: Diesel brakes +EVB,ABS+ASR+EBL+TPM,More Powerful electronic management system.

    Product Name

    SINOTRUK HOWO 8X4 Dumper Truck



    Chassis Model

    ZZ3317N3867D1

    Driving Type

    LHD (RHD is optional)

    Cabin

    HW76, with one sleeper and two seats, double arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with four piont support floating suspension+shock absorber.

    Engine

    Make: SINOTRUK
    Diesel 4-stroke direct injection diesel engine
    Engine model: D10.38-40, Euro 4, 380 HP
    6-cylinder in-line with water cooling, turbo-charging and intercooling
    Displacement: 9.726 L

    Transmission

    HW19710, 10F & 2R, with PTO
    Ratio:14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)

    Steering

    ZF power steering, modol ZF8118, hydraulic steering with power assitance

    Front Axle

    HF9,1x9000 KGS

    Steering with doubleT-cross section beam

    Rear Axle

    HC16, 2x16000 KGS

    Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles.

    Ratio:5.73

    Propeller Shaft

    Double universal joint propeller shaft with gear-shaped coupling flange

    Chassis

    Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members
    Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
    Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer

    Brake

    Service brake: dual circuit compressed air brake
    Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
    Auxiliary brake: engine exhaust brake

    Electrics

    Operating voltage: 24 V, negative grounded
    Starter: 24 V, 5.4 Kw
    Alternator: 3-phase, 28 V, 1500 W
    Batteries: 2 x 12 V, 165 Ah
    Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

    Tyres

    12.00R20, radial tyres with one spare tyre

    Fuel Tank

    300L

    Cargo Body

    7800*2300*1500 mm, 27 CBM, Floor 8mm Side 6mm

    Overall Dimension

    11400*2550*3450mm



    Competitive Advantage



    1.Based on strong technical support and top level technology make the trucks with high quality and more reliable
    2.Strong enough engine
    3.With all kinds of truck model, which can full fill your requirements
    4.The key parts adopt the world's top technology products
    5.Usually choose the standard cargo body structure
    6.Using the good quality steel plate, make it has a long service life
    7.The optimized hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
    8.Excellent appearance of cabin, safety, reliable
    9.Competitive price, cost-effective
    10.Quick and efficient spare parts supply bring you more convenient
    11.Fast delivery time, we can arrange production according to your needs exactly and quickly
    12.Professional import and export dealing procedure, make customs clearance more high efficiency
    13.Low fuel consumption

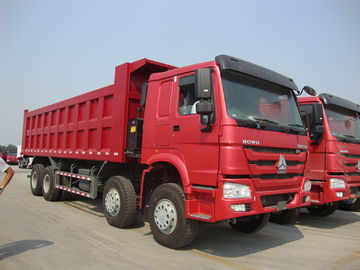

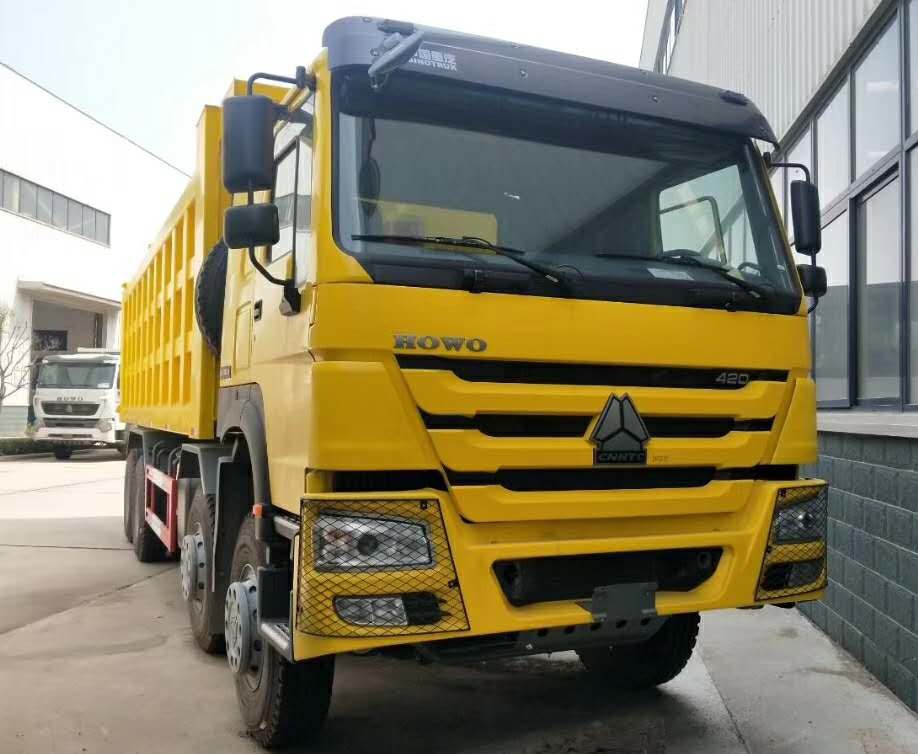

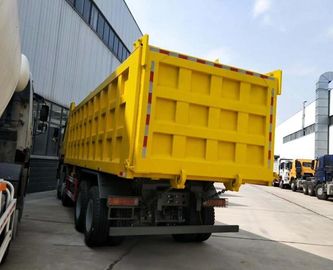

    Products Show
