| Place of Origin: | China |
| Brand Name: | HOWO |
| Certification: | ISO/CCC |
| Model Number: | ZZ3257N3447A1 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 25-30 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 900 Set/Sets per Month |
| Drive Wheel: | 6x4 | Horsepower: | 251 - 350hp |
|---|---|---|---|
| Transmission Type: | Manual | Fuel Type: | Diesel |
| Gross Vehicle Weight: | 12090 | Front Wheel Track: | 2022/2041mm |
| Front Overhang: | 1500mm | Approach Angle: | 19° |
| High Light: | heavy duty tipper trucks,construction dump truck,371HP Euro 2 mining dump truck |
||
Sinotruk 6x4 30 Tons Dump Truck With The Overturning Body Platform 371HP Euro 2
Product Overviews
|
Model |
ZZ3257N3447A1 GCW40000kgs Driving Type 6×4 |
|
|
Engine |
Engine model |
WD615.69, Euro II emission standard, 4 stroke injection diesel engine, |
|
Maximum output |
336PS (247kW) at 2200 rpm |
|
|
Maximum torque |
1350Nm at 1100-1600rpm |
|
|
Bore |
126mm Stroke: 130mm |
|
|
Displacement |
9.726L |
|
|
Compression ratio |
17.5:1 |
|
|
Specific fuel consumption |
≤198g/kWh |
|
|
Engine oil filling quantity |
23L |
|
|
Air compressors |
WABCO Twin cylinders air compressors; |
|
|
Cooling system filling quantity |
40L |
|
|
Clutch |
SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance |
|
|
Transmission |
Transmission, model HW19710, 10 forward and 2 reverse |
|
|
Propeller Shaft |
Double universal joint propeller shaft with gear-shaped coupling flange |
|
|
Front Axle |
New HF9 series, with drum brake system |
|
|
Rear Axle |
HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system. |
|
|
Chassis |
Frame: |
High-strength U-profile frame, all cold riveted cross members and reinforced subframe |
|
Front suspension: |
semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer |
|
|
Rear suspension: |
semi-elliptic leaf springs and bogie springs |
|
|
Spare wheel carrier: |
with one spare wheel |
|
|
|
ZF8098, hydraulic steering with power assistance |
|
|
Braking System |
Front and rear drum brake, four-circuit protection valve |
|
|
Service brake |
dual circuit compressed air brake |
|
|
Parking Brake |
spring energy, compressed air operating on rear wheels |
|
|
Auxiliary brake |
engine exhaust brake |
|
|
Wheel & Types |
Rims |
8.5-20,10 hole-steel |
|
Types |
12.00R20, 12.00R22.5, 315/80R22.5, 12.00-20 |
|
Advantage
1)competitive price, cost-effective
2)with all kinds of truck model, which can fulfil your requirements
3)all kinds of cargo body structure can be designed and produced according to your request,make it have light curb weight , high rigidity , high loading capacity
4)using the high strength steel, make it has a long service life
5)The optimized hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
6)excellent apperance of cabin, safety, reliable
7)quick and efficient spare parts supply bring you more convenient
8) you can choose cargo body with Front lifting type or Middle lifting type which you prefer
9) The hydraulic system using HYVA brand or Domestic famous brand
10)low fuel consumption
11) strong enough engine
12)fast delivery time, we can arange production according to your needs exactly and quickly
13) professional import and export dealing precedure, make customs clearance more high efficiency
Application
HOWO 6X4 10 wheels dump truck middle tipping is mainly used for transporting the stuff in bulk which can be scattered (such as sand, soil, minerals, etc.), mainly in mining, construction sites and so on. The 10 wheels 6X4 dump truck with 25-30 tons capacity can meet your needs. All kinds of cargo body structure can be designed and produced according to your request, make it have light curb weight , high rigidity , high loading capacity.

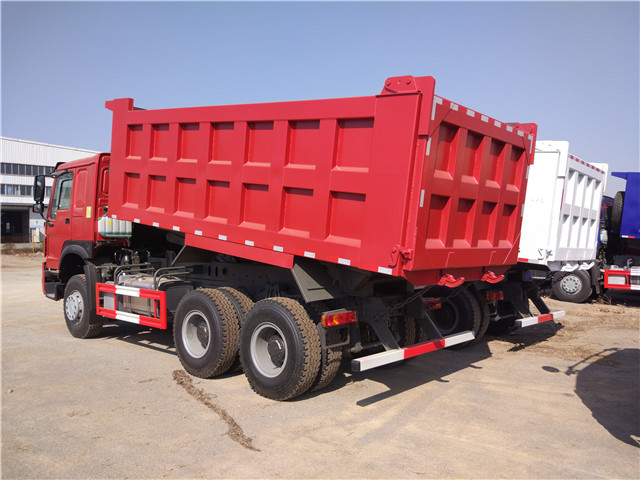

Product Picture
