| Place of Origin: | SHANDONG |
| Brand Name: | FAW |
| Certification: | CCC |
| Model Number: | CA3310 |
| Minimum Order Quantity: | 1 UNIT |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 UNITS/MONTH |
| Drive Wheel: | 8x4 | Body Dimensions(mm): | 7600×2300×1500 |
|---|---|---|---|
| Steel Thickness: | Side 6 ,Bottom 8 | Condition: | New |
| Color: | Optional | Model: | JH6 |
| High Light: | 9T Heavy Duty Dump Truck,380HP Heavy Duty Dump Truck |
||

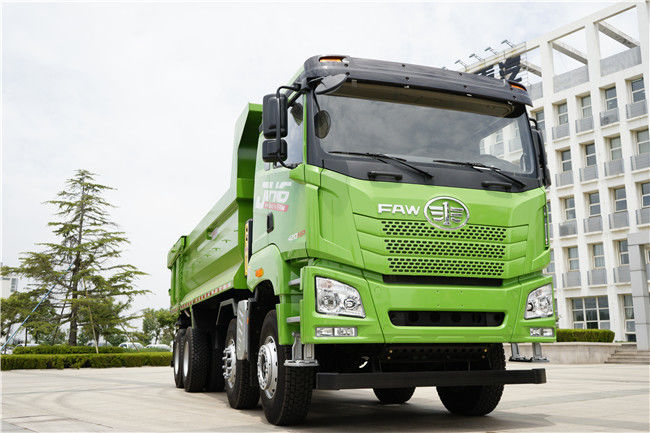

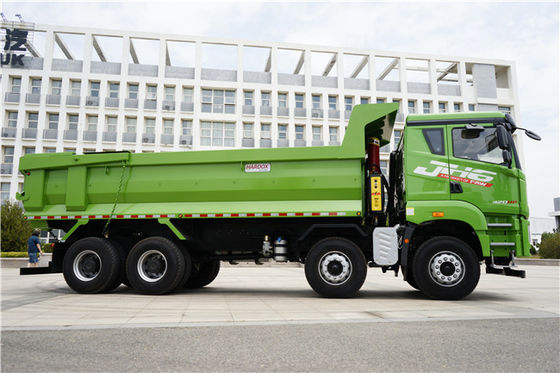

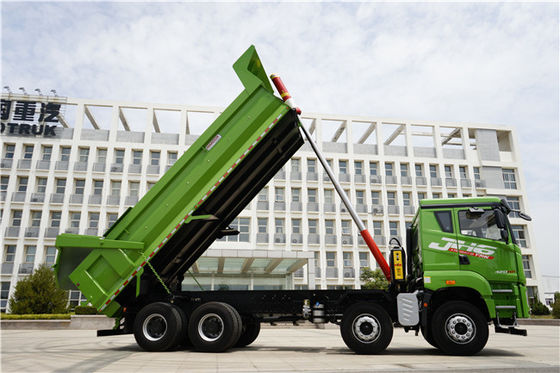

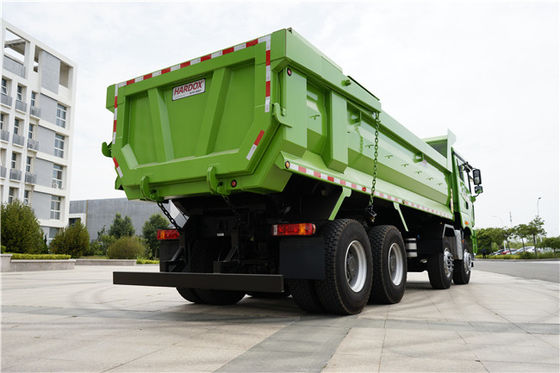

FAW 8x4 JH6 12 Wheels Heavy Duty Dump Truck With 380HP Engine And 9 Tons Front Axle
Description:
Cabin: artistic, modest, streamlined design;
Interior: ergonomics, clean, convenient
Flat floor design: big cabin space and easy moving
High strength frame: high payload capacity Reliable engine, gearbox and axle
1.The main machine nude, attached parts and tools put into standard export box
2.Within 20 days deliver the goods to main Port
3. Ro-Ro ship or bulk ship or according to customer requiring
4.We have professional forwarding partners
Competitive Advantage:
1. Fast production period, and quick arrangement of delivery.
2. Professional Sales Team of trucks. Our target is not selling trucks; we help customers choose the best suitable trucks as per customer’s situation.
3. Professional team for spare parts and aftersales services.
4. Technique support and training.
5. Customization service, as per your request, we will customize our production for you
Technological Parameters:
| GVW31000kg Driving Type 8x4 | ||
| Model | CA3310 | |
| Cab | JH6 | |
| Engine(Hp) | 380 | |
| Power(Kw) | 279 | |
| Wheelbase | 1900+3800+1350 | |
| Front/Rear Suspension | 1964/1847 | |
| Steering | Power steering | |
| Approach/departure angle | 21/42 | |
| Wheels & tire | 12.00R20 | |
| Tire number | 12+1 | |
| Body Dimensions(mm) | 7600×2300×1500 | |
| Cubage (m3) | 26/30 | |
| Steel thickness | Side 6 ,Bottom 8 | |
| RHD or LHD | optional | |
| Overall Dimensions(mm) | 10460×2500×3250 | |
| Curb weight (Kg) | 15450 | |
| Engine | Model | WP10.380 |
| Horsepower | 380 | |
| Maximum output Kw | 279 | |
| Maximum torque N.m | ||
| Type | 6cylinders, in-line,4-stroke, turbo inter-cooling, diesel engine | |
| Displacement | 9.726L | |
| Weichai brand | ||
| Driving passenger | 2,3 | |
| Transmission | 10 forwards,2 reverse | |
| Front Axle | 9T | |
| Rear Axle | 16Tx2 | |
| Brake System |
air brake exhaust brake |
|
| Color and LOGO | customized | |
| Electric system | 24V | |
| Standard configuration | The dump is unloaded from behind, hydraulic cover is optional. The side protection using cold-formed steel /Q235-A, bolt connection. The back protection using cold-formed steel /Q235-A, welding connection. Side 6mm, bottom 8mm. | |
| Delivery date | Within 20 days after receipt advance | |
| Packing | Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity. | |
