| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | XCMG |
| Certification: | ISO CE |
| Model Number: | XS142J |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | SDLG standard package |
| Delivery Time: | 30DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 Unit/Units per Year SDLG RS8140 Road Machinery new road roller machine price |
| Grade Ability: | 30% | Dimension(L*W*H): | 6010x2340x3160 Mm |
|---|---|---|---|
| Transmission: | Mechanical Shift, Dry Type Axle | Drive System: | Rear Wheel Mechanical Drive |
| Displacemen: | 6750ml | Weight: | 14000kg |
| Hydraulic System: | Open Loop Vibration | Road Roller Vibration Frequency: | 28Hz |
| High Light: | road work equipment,road construction vehicles |
||

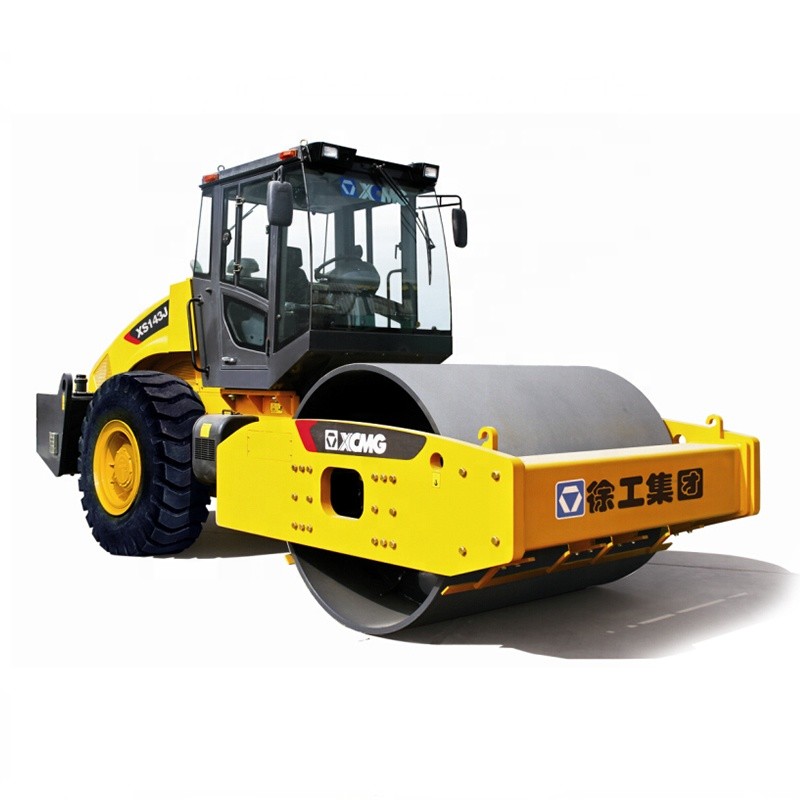

Roller Compactor 14tons Road Roller for sale XS142J XS143J Single drum road roller 14t vibratory
Warranty:1 Year
Condition:New
Type:Single Drum Roller
Grade Ability:30%
Place of Origin:Jiangsu, China (Mainland)
Brand Name:CANMAX
Dimension(L*W*H):6010*2300*3200 mm
Weight:14000kg
Certification:ISO CE
Product name:Single Drum Roller
Drive Type:Mechanical Drive
Exciting force:274/137 kN
Wheel Base:3040mm
Drum width:2130mm
Min.turning radius:6800mm
Vibratory diameter:1523mm
FEARTURES
The spacious and bright cab features wide view and comfort.
•The humanity instrument panel has a reasonable layout, all the control buttons are clear at a glance.
•Adopt the gearbox with synchronizer, which is easy to operate.
•The special compactor drive axle has the function of preventing slipping, featuring strong traction.
•Shanghai Diesel Engine 114 series water-cooled engine has low noise, meeting the emission standard of European I. The maintenance-free battery can be started easily and work smoothly in low temperature.
•Unique drum structure features good rigidity and intensity. The bearing adopts short cylindrical bearing, featuring high rotary speed limit and strong bearing capacity. The left vibration chamber and right vibration chamber are symmetrical, avoiding the polarization of the drum.
•The vibratory bearing can be lubricated when the compactor travels, which is simple and convenient, ensuring a quite low lubricating system failure rate.
•Adopt the numerical control blanking, numerical control plate rolling, numerical control bender, and numerical control horizontal machining center to ensure the precision of the whole machining.
•The integral convex block drum, split convex block drum, and the cab with air conditioning.
Convenient maintenance
•The engine cover is easy to open, and the opening angle is large, which make the maintenance part accessible.
•The high positioned air intake prolongs the maintenance interval of the air filter.
PARAMETER
| Model | Unit | XS142J |
|---|---|---|
| Operating weight | kg | 14000 |
| Weight on front drum | kg | 7000 |
| Static linear pressure | N/cm | 322 |
| Speed range | km/h | |
| Speed I | 2.7 | |
| Speed II | 4.8 | |
| Speed III | 10.5 | |
| Theoretical gradeability | % | 30 |
| Min. external turning radius | mm | 6800 |
| Steering angle | ° | ±30 |
| Oscillating angle | ° | ±11 |
| Vibration frequency | Hz | 28 |
| Nominal amplitude (high/low) | mm | 1.9/0.95 |
| Excitation force (high/low amplitude) | kN | 274/137 |
| Engine model | SC5D125G2B1 | |
| Type | Water cooled, pressurized | Water cooled, pressurized |
| Max. power | kW | 92@2200r/min |
| Engine oil consumption | g/kW.h | 230 |
| Hydraulic oil tank capacity | L | 170 |
| Fuel tank capacity | L | 180 |
