| Place of Origin: | China |
| Brand Name: | SINOTRUK |
| Certification: | ISO/CCC |
| Model Number: | WZ30-25 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 pieces per month |
| Excavator Bucket Volume:: | 0.3 M3 | Excavator Max. Digging H/D/R:: | 5280 /3000 / 4800 Mm |
|---|---|---|---|
| Loader Bucket Rated Load:: | 2500 Kg | Condition: | New |
| Loader Dumping Height:: | 3500mm | Engine Type:: | YUNNEI 4102 |
| High Light: | road work equipment,road construction vehicles |
||

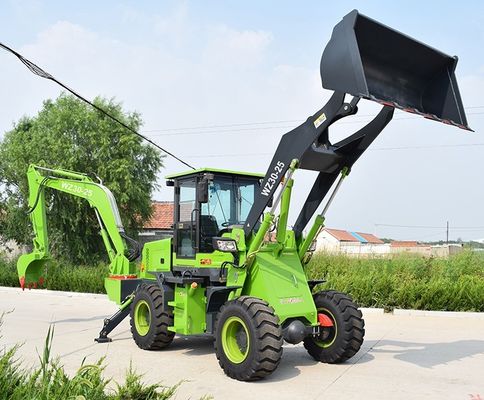

2.5 TON WZ30-25 BACKHOE LOADER Road Construction Machinery With YUNNEI 4102 Engine
Product Introduction
Model WZ30-25 wheel loader is a kind of unique vehicle which combines the function of wheel loader and excavator together. The rated loading capacity of loader bucket is 2.5 tons. The wheel-side reducer driving axle and full hydraulic transmission case make the vehicle move in any kinds of complex off road ways, it adopts articulated chassis and the min. turning radius is 5.5 meters only.
Features:
Powerful breakout force and digging force, bucket automatically laid flat at high dumping position, working time is shortened greatly, and the working efficiency is improved greatly.
Air-over-oil assist caliper braking system.
Split type torque converter, not easy to overheat, easy maintenance.
Leaning-forward front frame, long dumping distance, high raising weight.
Optional engine: CUMMINS engine or other engine is available.
Electronic flameout, automatic power off, no knife-switch.
Main Features
China TOP Brand YUCHAI Diesel Engine
WZ30-25 is driven by YUNNEI 4102, 76 kW (103 HP), Turbo-charged & Water-cooled Diesel Engine, which features High Reliablity and Low Fuel Comsumption. The CUMMINS Engine is availabe upon request.
2.5-Ton Loader bucket and 0.3M3 Excavator bucket
2000 mm wide loader bucket, the rated load of bucket is 2500 Kg. The dumping height is 3500 mm and dumping reach is 1000 mm. The excavator bucket is 0.3M3, max. digging height is 5280 mm, max. digging depth is 3000 mm, and max. digging radius is 4800 mm.
ROPS & FOPS Cabin
ROPS & FOPS cabin is available on this vehicle which helps to increase the safety of driver greatly.
Integrated Front Fame
Leaning-forward front frame which features long dumping distance and high raising weight.
Safety Lock Outrigger.
Safety lock outrigger is applied on this vehicle to guarantee the safe operation.
Thickened Steel Plate Engine Casing
The engine casing adopts thickened punch forming steel plate, which increases the stability of whole vehicle greatly.
Split Type Torque Converter
Split type torque converter is applied on this vehicle which is not easy to overheat, and it is easy for maintenance.
|
Bucket |
|||
|
Rated Load |
2500 Kg |
||
|
Bucket Capacity |
1.2 M3 |
||
|
Bucket Width |
2000 mm |
||
|
Dumping Height |
3500 mm |
||
|
Dumping Reach |
1000 mm |
||
|
Excavator Bucket |
|||
|
Bucket volume |
0.3 M3 |
||
|
Bucket Width |
550 mm |
||
|
Max. Digging height |
5280 mm |
||
|
Max. Digging depth |
3000 mm |
||
|
Max. Digging Radius |
4800 mm |
||
|
Boom Slewing Angle |
270° |
||
|
Engine |
|||
|
Model |
YUNNEI, 4102 Turbo Charged and Water Cooled |
||
|
Rated power |
76 KW (103 HP) |
||
|
Emission standard |
Euro II |
||
|
Chassis |
|||
|
Structure |
Articulated chassis |
||
|
Articulation angle |
35 degrees |
||
|
Transmission gear |
Automatic, 2F+ 2R shift |
||
|
Driving & steering |
4-Wheel drive (4x4), hydraulic articulated steering |
||
|
Wheelbase |
2550 mm |
||
|
Tread |
1600 mm |
||
|
Axles |
Medium wheel-side reducer driving axle |
||
|
Torque Converter |
YJ280 (Split type) |
||
|
Brake |
Air brake |
||
|
Tyre size |
Off road steel cord type, 16/70-20 |
||
|
Cabin |
|||
|
Type |
ROPS & FOPS type |
||
|
Air conditioning system |
Optional |
||
|
Vehicle |
|||
|
Min. turning radius |
5.5 m |
||
|
Min. ground clearance |
400 mm |
||
|
Operating weight |
6500 Kg |
||
|
Overall size (L×W×H) |
7800 x 2100 x 3100 mm |
||
|
Optional accessories: |
|||
|
YUCHAI Engine (4102, 78 KW), CUMMINS Engine (4BT-C100, 75 KW) |
|||
|
Air Conditioner in side cabin |
