10 Ton Double Drum Vibratory Road Roller JUNMA JM810H JMD10H JMSeries

10 Ton Double Drum Vibratory Road Roller JUNMA JM810H JMD10H JMSeries

  • 10 Ton Double Drum Vibratory Road Roller JUNMA JM810H JMD10H JMSeries
  • 10 Ton Double Drum Vibratory Road Roller JUNMA JM810H JMD10H JMSeries
  • 10 Ton Double Drum Vibratory Road Roller JUNMA JM810H JMD10H JMSeries
10 Ton Double Drum Vibratory Road Roller JUNMA JM810H JMD10H JMSeries
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: JUNMA
Certification: ISO, CE
Model Number: YZC3.5H
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: NEGOTIABLE
Packaging Details: SDLG standard package
Delivery Time: 30DAYS
Payment Terms: T/T, L/C
Supply Ability: 1000 Unit/Units per Year SDLG RS8140 Road Machinery new road roller machine price
Contact Now
Detailed Product Description
Dimension(L*W*H): 4420*1900*3050mm Drive System: Rear Wheel Mechanical Drive
Weight: 10000kg Hydraulic System: Open Loop Vibration
Power(W): 81 Kw Travel Speed:: 23.5 8km/h
Rolling Width: 1700mm Centrifugal Force: 110/65kN
High Light:

road work equipment

,

road construction vehicles

JUNMA JM810H/JMD10H JMSeries 10 ton Double Drum Vibratory Road Roller Tandem Roller Small Road Roller





Products Specifications


Power(W):81kw

Travel Speed:2 3.5 8 km/h

After-sales Service Provided:Video technical support, Online support, Overseas service center available

Warranty:1 Year

Condition:New

Type:Double Drum Roller

Place of Origin:Shandong, China (Mainland)

Brand Name:China Coal

Dimension(L*W*H):4420*1900*3050 mm

Weight:10000kg

Certification:ISO CE

Rolling width:1700mm

Vibrating frequency:40/46Hz

Vibrating amplitude:0.75/0.35 mm

Centrifugal force:110/65kN

Engine power:81 kw

Overall dimension:4420*1900*3050 mm

Supply Ability:5000 Set/Sets per Month Road Roller Compactor

Packaging Details:Standard package or as your requirement for Vibratory Mini Road Roller Compactor

Port:Qingdao,Shenzhen,Shanghai





FEARTURES



1. Drive and vibration system adopts the international reputed brand imported hydraulic components.

2. Hydraulic double drum drive, two range infinitely various speed.

Vibratory roller: Hydraulic double drum vibration, electronic controlled delayed starting of vibration, great exciting force with high compacting efficiency;

Vibratory oscillatory roller: Hydraulic double drum vibration, double drum oscillation is for your choice, electronic controlled delayed starting of vibration, great exciting force with good compaction performance;

3. Hydraulic steering, articulated frame with flexible operation.

4. Hydraulic service brake, Electronic self-locking parking brake, brake release device which can be applied for dragging the machine for short distance.

5. Crab pattern & fork streamline design, attractive appearance with small blind view area, excellent road edge compaction performance.

6. Operation station and operation seat can rotate around 90°, conveniently for operators observing curb compaction

7. The covers on both sides can be turned up in a big angle, which are more convenient for maintenance.

8. Connective design for two anti-corrosive sprinkler tanks with large capacity, electronic control pressurized sprinkler system, intermittent spraying.

9. Standard equipped with cabin, cabin with air conditioner or ROPS canopy is optional.

10. Other brand engine is optional.



PARAMETER



Item JM810H JMD810H unit
Operating weight 10000 10000 kg
Rolling width 1700 1700 mm
Vibrating frequency 40/46 40/46 Hz
Vibrating amplitude 0.75/0.35 0.75/0.35 mm
Centrifugal force 110/65 110/65 kN
Oscillation frequency   32/38 Hz
Oscillation amplitude   1.4 mm
Centrifugal torque   32/42 kN•m
Engine model QSB3.9-C110
Engine power 81 kw
Overall dimension 4420*1900*3050 mm



Pictures:

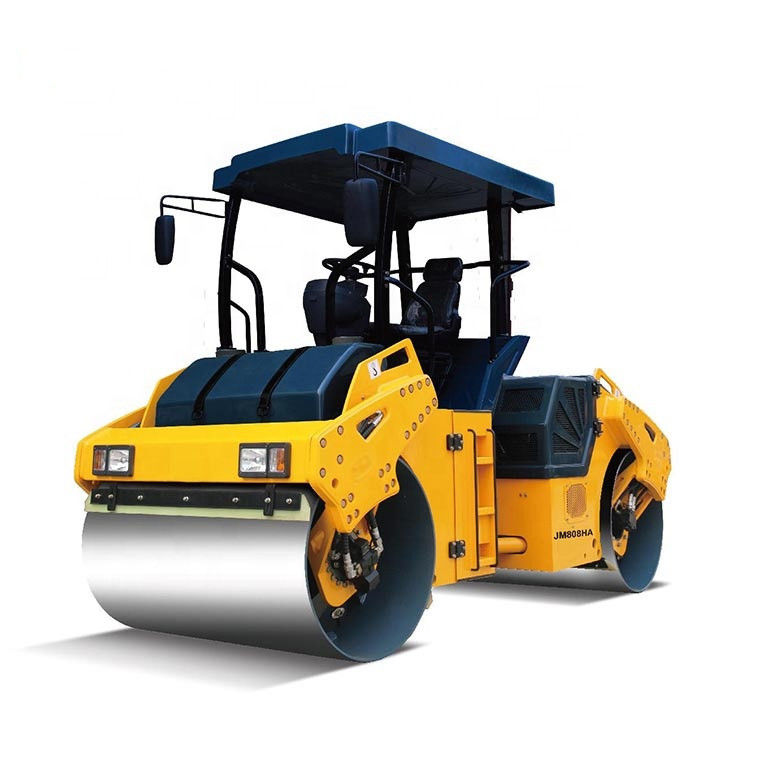

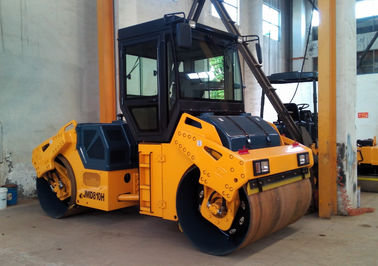

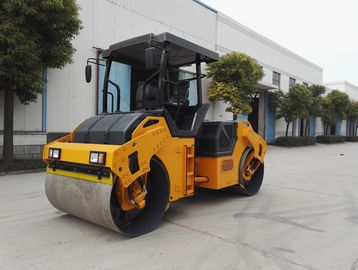

10 Ton Double Drum Vibratory Road Roller JUNMA JM810H JMD10H JMSeries 010 Ton Double Drum Vibratory Road Roller JUNMA JM810H JMD10H JMSeries 1
