15100mm Lifting Height Port Handling Equipments With Automatic Transmission And KESSLER Axle

15100mm Lifting Height Port Handling Equipments With Automatic Transmission And KESSLER Axle

    • 15100mm Lifting Height Port Handling Equipments With Automatic Transmission And KESSLER Axle
    • 15100mm Lifting Height Port Handling Equipments With Automatic Transmission And KESSLER Axle
    • 15100mm Lifting Height Port Handling Equipments With Automatic Transmission And KESSLER Axle
  • 15100mm Lifting Height Port Handling Equipments With Automatic Transmission And KESSLER Axle

    Product Details:

    Place of Origin: CHINA
    Brand Name: Maxima
    Certification: CE
    Model Number: CRS4532

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotiable
    Packaging Details: Nude
    Delivery Time: 35 work days
    Payment Terms: L/C, T/T
    Supply Ability: 100 units/ month
    Contact Now
    Detailed Product Description
    Max. Lifting Height:: 15100mm Model:: CRS4532
    Heavy Duty Drive Axle:: KESSLER Gear Box:: DANA Automatic Transmission
    Color:: Red,Green Condition:: New
    High Light:

    shipping container handling equipment

    ,

    shipping container lifting equipment

    Container Handling Machining 45 Ton Reach Stackers With Automatic Transmission And KESSLER Axle



    Descriptions:


    1. Adopt advanced Pa rker electric controlling system, man-machine intelligence display, easily maintenance and low breakdown rate.

    2. The intelligent Can-Bus system is reliable and stable, with immediate response, and large data information. Also this CAN-Bus system delivers full diagnosis capabilities, simplifying the servicing of the truck with anti-interference.

    3. Par ker hydraulic brand from America for hydraulic system parts, which is impact resistant and low noise.

    4. Par ker valve, with impact resistant, stable and reliable performance.

    5. Equipped with tilting cab and hood, to ensure easy access to major components for inspection and service. Also this makes the wide and clear view, with little noisy inside.

    6. Rear camera surveillance system make it much safe and high efficiency.

    7. Equipped with high-capacity fire extinguisher.




    Packing:

    Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.

    Competitive Advantage:



    1. High energy-saving:
    World's initiative energy reclaiming system, comprehensively save energy up to 25%.
    2. High efficiency:
    Adopt multi-motion linkage design,spreader motion ratio control technology and micro-move control technology; the equipment can be easily controlled.
    3. High security:
    Dynamic anti-rollover protection system,automatic fire extinguishing system, solid tyre and hydro-pneumatic suspension system, patent technology of mobile counterweight, all meeting European safety standards
    4. High reliability:
    Water identification technology of the connections, CAN bus communication technology, digital platform design technology;German design, precise and reliable
    5. Highly comfortable:
    Concentrated joystick,360 degree view, full-range headlamp, steering dynamic response, new-style pedal design, all providing a comfortable experience.
    6. H-type Spreader:
    Single main beam patented technology; selfweight of spreader is less than 7t; the components passed through millions of times equivalent fatigue test; performance steady and reliable
    7. High maintainability:
    Spacious maintenance room, preventative maintainance system, over 200 malfunction diagnosis programs.Industrial design offers elegant appearance and excellent operation comfort;


    Detailed Specification:



    Model   CRS4532
    Lifting 1 Stacked Levels Row 1-2-3 Type of Container Unit Lifting Capacity
    2 4x First row 9'6'' ton-m 45-2.0
    3 5x ton-m 43-2.0
    4 6x 8'6'' ton-m -
    5 3x Second row 9'6'' ton-m 32-3.85
    6 4x ton-m 32-3.85
    7 2x Third row 9'6'' ton-m 15-6.32
    8 3x ton-m 15-6.32
    9 Max. Lifting Height m 15.2
    performance 10 Speed Lifting Speed ( Unladen/Laden) mm/sec 420/250
    11 Lowering Speed ( Unladen/Laden) mm/sec 360/360
    12 Forward travel speed ( Unladen/Laden) km/h 25/21
    13 Backward travel speed ( Unladen/Laden) km/h 25/21
    14 Traction(Laden) kN 300-2km/h
    15 Outside turning radius mm 8000
    Weight 16 Self wight (Unladen) kg 72
    17 Weight Distribution Laden Front axle kg 103
    18 Rear axle kg 14
    19 Unladen Front axle kg 37
    20 Rear axle kg 35
    Stability 21 Front Stability Forward stability.40T First row 1.875
    22 Forward stability.25T Second row 1.806
      23 Tyre Front wheel in 18.00*25/PR40
    24 Real wheel in 18.00*25/PR40
    25 Wheelbase mm 6000
    26 Length mm 11250
    27 Front wheel track mm 3030
    28 Rear wheel track mm 2760
    29 Hydraulic system Load sense system   New second generation system
    30 Variable displacement piston pump (new)   New second generation system
    31 Cooling/filter system   With/with
    32 High flow main valve (new)   M402
    33 Cylinder volume Hydraulic oil L 700
    34 diesel L 600
    35 Electric system Type/voltage V CanBus/24V
    36 Overload system stand Electronic control
    37 Color/graphics display   6.5"color display
    38 Electronic proportion(tonnage/percentage)   With/with
    39 System integrity   Comprehensive
    40 Cab Type(new)   Best in China
    41 Cooling/heating (new)   Electronic control
    42 Size   big
    43 Step/handrail   With/two sides
    44 Front step/handrail   With/fender
    45 Cab forward shift   Yes
    46 Travel with door open   Yes
    47 Boom angle Min./Max. deg 0/60
    48 Basic design   4 sides box type
    49 Chassis Basic design   4 sides box type
    50 View Front, Top, Side, Back   Good
    51 Noise level Cab interior (Leq) Dba 70

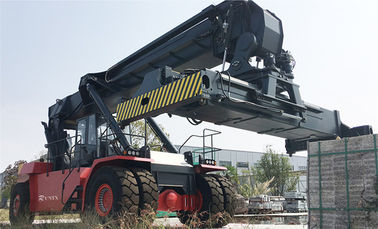

    Reference pictures:



    15100mm Lifting Height Port Handling Equipments With Automatic Transmission And KESSLER Axle 015100mm Lifting Height Port Handling Equipments With Automatic Transmission And KESSLER Axle 115100mm Lifting Height Port Handling Equipments With Automatic Transmission And KESSLER Axle 2
