Electric Vertical Electric Mobile Scissor Lift / Scaffolding Aerial Lift Work Platform

Electric Vertical Electric Mobile Scissor Lift / Scaffolding Aerial Lift Work Platform

  • Electric Vertical Electric Mobile Scissor Lift / Scaffolding Aerial Lift Work Platform
  • Electric Vertical Electric Mobile Scissor Lift / Scaffolding Aerial Lift Work Platform
  • Electric Vertical Electric Mobile Scissor Lift / Scaffolding Aerial Lift Work Platform
Electric Vertical Electric Mobile Scissor Lift / Scaffolding Aerial Lift Work Platform
Product Details:
Place of Origin: China
Brand Name: sun lift
Certification: ISO9001 CE Certificate
Model Number: SJG0.5-2.7
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: nude
Delivery Time: 10-15days
Payment Terms: T/T
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
Table Size: 2000x1300mm Weight: 500kg
Overall Dimensions: 2000x1300x320mm Lifting Speed: 4-6m/min
Control Mode: Electric Control
High Light:

shipping container handling equipment

,

shipping container lifting equipment

Factory Selling Vertical Electric Mobile Scissor Lift Scaffolding Aerial Lift Platform Hydraulic Lift Work Platform




Quick Details

Condition:New

Applicable Industries:Hotels, Manufacturing Plant, Home Use, Construction works , Advertising Company

Place of Origin:Shandong, China

Brand Name:SUN-LIFT

Lift Mechanism:Scissor Lift

Lift Drive / Actuation:Hydraulic

Power:1.5KW or 2.2KW, AC/DC battery/diesel

Min. Lifting Height:1530mm

Table Size:2100x1230mm

Overall Dimensions:2250x1350x1530mm

Weight:1360kg

Certification:ISO9001 CE Certificate

Warranty:12 months

After-sales Service Provided:Free Spare Parts

Product name:Mobile Scissor Lift Scaffolding

Working pressure:≤12Mpa

Supporting les:manual type

Control mode:electric up-down

Upper platform:anti-skid insulating

Paint:electrostatic spraying

Guardrail:folding and removable

Guardrail height:1000mm

Movement of man lift:towable



Product Description



Small Mobile Hydraulic Lift is the extensive use of special equipment for high-altitude operation. Its scissor mechanical structure makes the lifting platform lifting up more stability, wide work platform and high bearing capacity which makes work scope larger and load many people to work at the same time. It makes aerial work more efficient, safe and more security. It is mainly used for the station, wharf, bridge, hall, building indoor and outdoor machinery installation, equipment maintenance, building maintenance. It has solid structure, low failure rate, reliable, safe and efficient operation, simple maintenance, which is good helpler for finishing aerial work conveniently.



Main Features

A. Made of high intensity manganese steel tubes, never deformed.
B. Antiskid upper platform plate and 1000mm height guardrail to guarantee opertor's safety.
C. Anti explosion valve to prevent upper platform from dropping suddenly when any emergency .You can open the emergency decline valve to lower the platform to the home position.
D. Spillover valve: It can prevent high pressure when the machine moves up to adjust work pressure.
E. Special made casting steel hinge ear, well wearable , with a long serve life.



Specifications



Specifications (Customizable)Of Stationary Scissor Lift Electric Goods Lift
Model
Table size
Travel height
Min. Height
Rated capacity
Overall size
(LxWxH)
SJG2-3.5
2000x1500mm
3500mm
560mm
2000kg
2000X1500x560mm
SJG5-5
2800x2000mm
5000mm
1020mm
5000kg
2800x2000x1020mm
SJG2.5-4
3000x2400mm
4000mm
770mm
2500kg
3000x2400x770mm
SJG1-2.9
1400x750mm
2900mm
510mm
1000kg
1400x750x510mm
SJG1-6
1900x1100mm
6000mm
1100mm
1000kg
1900x1100x1100mm
SJG1.5-3.8
2200x2000mm
3800mm
700mm
1500kg
2200x2000x700mm
SJG0.8-3.5
1800x1200mm
3500mm
800mm
800kg
1800x1200x800mm
SJG3.0-7
3000x2500mm
7000mm
1080mm
3000kg
3000x2500x1080mm
SJG2.0-
2400x2000mm
1100mm
400mm
2000kg
2400x2000x780mm

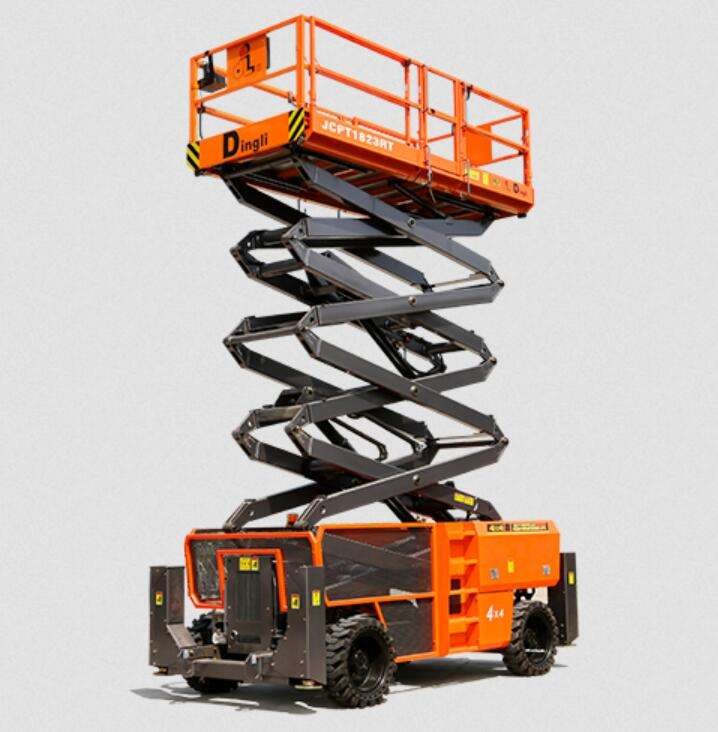

Product pictures

Electric Vertical Electric Mobile Scissor Lift / Scaffolding Aerial Lift Work Platform 0Electric Vertical Electric Mobile Scissor Lift / Scaffolding Aerial Lift Work Platform 1Electric Vertical Electric Mobile Scissor Lift / Scaffolding Aerial Lift Work Platform 2Electric Vertical Electric Mobile Scissor Lift / Scaffolding Aerial Lift Work Platform 3Electric Vertical Electric Mobile Scissor Lift / Scaffolding Aerial Lift Work Platform 4Electric Vertical Electric Mobile Scissor Lift / Scaffolding Aerial Lift Work Platform 5Electric Vertical Electric Mobile Scissor Lift / Scaffolding Aerial Lift Work Platform 6
