CE Port Handling Equipments 3000kg Rated Loading Capacity Max. Lifting Height 6000mm

CE Port Handling Equipments 3000kg Rated Loading Capacity Max. Lifting Height 6000mm

  • CE Port Handling Equipments 3000kg Rated Loading Capacity Max. Lifting Height 6000mm
  • CE Port Handling Equipments 3000kg Rated Loading Capacity Max. Lifting Height 6000mm
  • CE Port Handling Equipments 3000kg Rated Loading Capacity Max. Lifting Height 6000mm
CE Port Handling Equipments 3000kg Rated Loading Capacity Max. Lifting Height 6000mm
Product Details:
Place of Origin: Jining, China
Brand Name: VOTE
Certification: CE/ISO
Model Number: VTF-2500
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: negotiable
Packaging Details: nude
Delivery Time: 15-30days
Payment Terms: T/T, L/C
Supply Ability: 5000sets/month
Contact Now
Detailed Product Description
Power Souce: Diesel Engine Max. Lifting Height: 6000mm
Overall Dimensions: 4200*1800*2700mm Rated Loading Capacity: 3000kg
Gantry Width: 160mm Drive Type: 4-wheel Drive
High Light:

shipping container handling equipment

,

shipping container lifting equipment

New Design 4wd 3 To 5 Ton Forklift Off-Road 5 Ton Hydraulic Forklift Truck Diesel Machines


Quick Details


Applicable Industries: Manufacturing Plant, Farms, Construction works , Energy & Mining

Condition: New

Place of Origin: Shandong, China

Brand Name: VOTE

Type:Powered Pallet Truck

Power Souce: Diesel Engine

Certification: CE, ISO

Warranty: 1 Year

After-sales Service Provided: Online suppor


Product features

The cross-country forklift is also called the field forklift, which has good maneuverability and off-road reliability. It is a kind of construction vehicle balance forklift that can load, unload, stack and carry goods in safe and high ground on slopes and uneven ground. It can be equipped with forks or a variety of attachments to improve work efficiency. Off-road forklifts are suitable for road construction, urban construction, environmental sanitation, stone yards, small and medium-sized civil engineering, stations, terminals, freight yards, warehouses, etc., mainly used to transport stone materials, equipment, goods, urban garbage bins and container materials.


Parameters

Model VT-3000 VT-3500S VT-3500A VT-4000 VT-5000
Dimensions 4200*1800*2700mm 4200*1800*2700mm 4200*1800*2700mm 4400*1850*2800mm 4400*1900*2900mm
Engine model HUADONG 4DBY4(490) YUNNEI YN27(490) YUNNEI YN27GBZ(490 Turbocharged) HUADONG 4DHZY4(4102 Turbocharged) YUNNEI YN38GBZ(4102 Turbocharged)
Fork length 1220mm 1220mm 1220mm 1520mm 1520mm
Rated lift weight 3000kg 3500kg 3500kg 4000kg 5000kg
Turning radius 3500mm 3500mm 3500mm 4500mm 4500mm
Platform ground clearance 300mm 300mm 300mm 350mm 350mm
Axle Small wheel side weight cast steel bridge Small wheel side weight cast steel bridge Small wheel side weight cast steel bridge Middle wheel steel bridge Large wheel steel bridge
Tire 20.5/70-16 20.5/70-16 20.5/70-16 20.5/70-16 16/70-20
Gantry width 160mm 160mm 160mm 180mm 180mm
Overall weight 4000kg 4200kg 4200kg 5000kg 5500kg
Engine power 40kw 42KW 58kw 76KW 76KW
Gradeability ≤38° ≤38° ≤38° ≤38° ≤38°
Rated lifting height 3000-6000mm 3000-6000mm 3000-6000mm 3000-6000mm 3000-6000mm
Front ground clearance 250-350mm 250-350mm 250-350mm 300-380mm 300-380mm
Drive type 4-wheel drive 4-wheel drive 4-wheel drive 4-wheel drive 4-wheel drive
Gearbox 265 Double high and low speed large pump torque converter 265 Double high and low speed large pump torque converter 265 Double high and low speed large pump torque converter 280 Double high and low speed torque converter 280 Double high and low speed torque converter
Frame Hinged thick 3mm Hinged thick 3mm Hinged thick 3mm Hinged thick 3.5mm Hinged

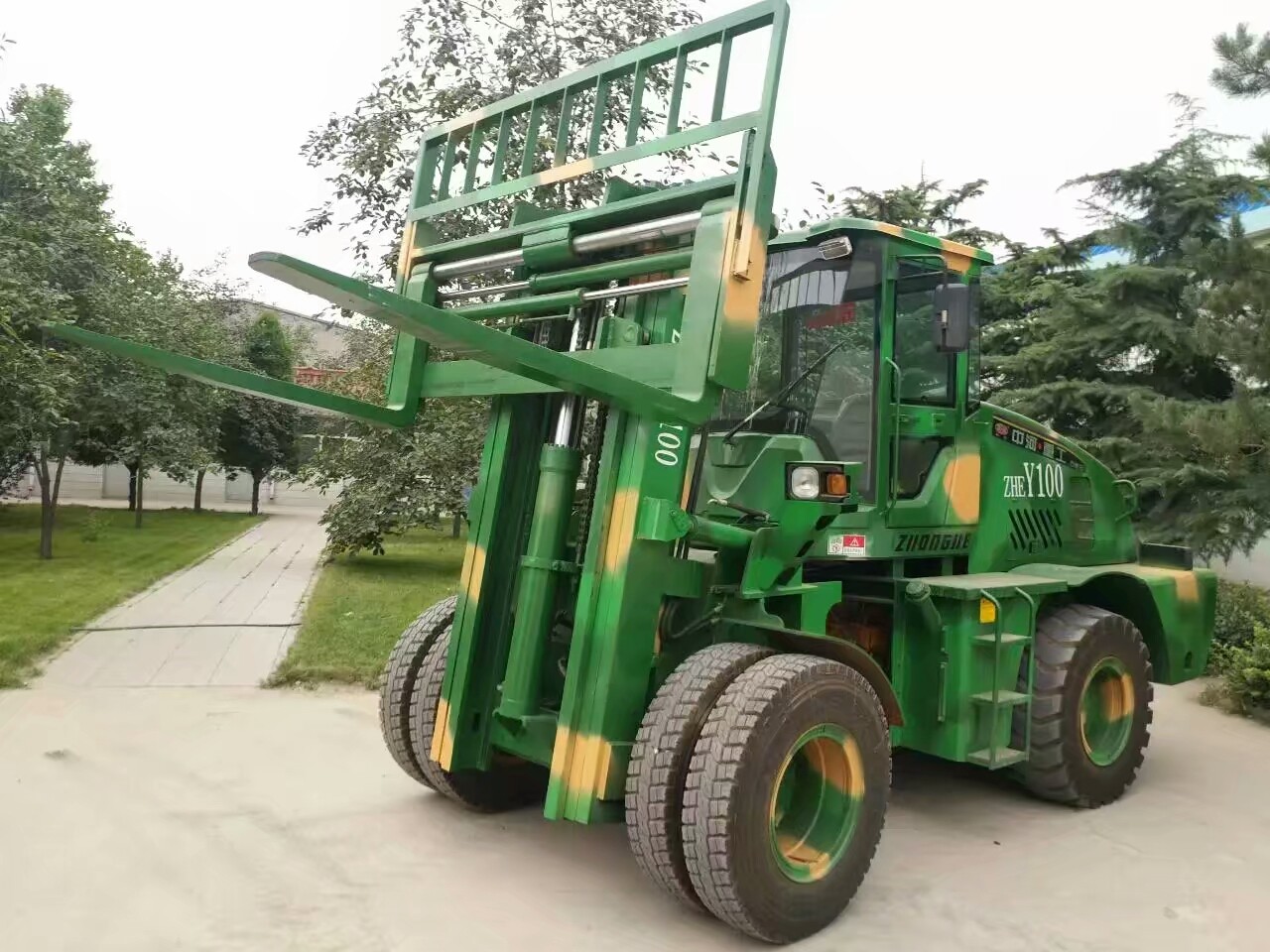

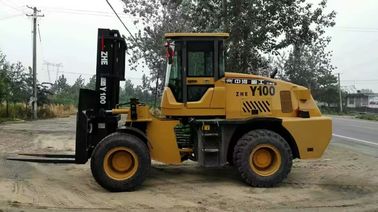

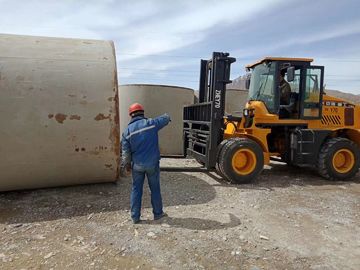

Product pictures
 CE Port Handling Equipments 3000kg Rated Loading Capacity Max. Lifting Height 6000mm 0CE Port Handling Equipments 3000kg Rated Loading Capacity Max. Lifting Height 6000mm 1CE Port Handling Equipments 3000kg Rated Loading Capacity Max. Lifting Height 6000mm 2CE Port Handling Equipments 3000kg Rated Loading Capacity Max. Lifting Height 6000mm 3CE Port Handling Equipments 3000kg Rated Loading Capacity Max. Lifting Height 6000mm 4CE Port Handling Equipments 3000kg Rated Loading Capacity Max. Lifting Height 6000mm 5
1.Q:What are your advantages compared with others?
A:1.competitive technology-we are as the leading dealers of various China machinery manufactures.
2.competitive service-Our company has good maintenance team,we can provide best service everytime and everywhere.
3.fast delivery-It will take about 15 days for factories to produce the ordered products.
4.competitive service- we often have an negotation from numerous comparison and feedbacks from clients,our price is more competitive than others.
2.Q:How can i believe you and your factory?
A:Since it is not the little thing to purchase machine,you can come to China to visit us for an inspect,and we will welcome you enthusiasm.so we can establish good cooperation with each other.
3.Q:How long of the warranty period ?
A:1year
4.Q:How about delivery?
A:delivery:7-10 working days after payment
packing:
A:container or RORO ship
B:Nude package or according customers requirements
better shipping is chosen for you accordingly.
reply you in 24 hours, if you are urgent, we can reply you soonest.
