| Place of Origin: | Shandong，China |
| Brand Name: | SHANTUI |
| Certification: | ISO9001 |
| Model Number: | SG16-3 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packed in nude |
| Delivery Time: | 30-45days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500sets per month |
| Condition: | New | Engine Brand: | Cumins |
|---|---|---|---|
| Engine Model: | Cumins 6BTAA5.9-C160 | Forward Speed: | 39.6 Km/h |
| Reserve Speed: | 29.8 Km/h | Operating Weight: | 15400 Kg |
| High Light: | road work equipment,road construction vehicles |
||
SHANTUI SG16-3 Motor Grader with 160hp Engine Road Construction Machinery
Product Description
SG16 motor grader adopts the external ring gear type working device to achieve higher transmitted torque, larger blade cutting angle, and better material control capability and features the maximum traction force among the domestic like machines. This machine is applicable for large-area leveling, ditching, slope scraping, bulldozing, ripping, land clearing, and snow removing and is an ideally essential machine for large building constructions, water conservancy projects, and farm.
Product Features
| ITEM | SG16-3 | |
| Engine | 6BTAA5.9-C160 | |
| Rated power (kW/rpm) | 118/2200 | |
| Travel speed (km/h) | Forward 1 | 0–5.4 |
| Forward 2 | 0–8.4 | |
| Forward 3 | 0–13.4 | |
| Forward 4 | 0–20.3 | |
| Forward 5 | 0–29.8 | |
| Forward 6 | 0–39.6 | |
| Reverse 1 | 0–5.4 | |
| Reverse 2 | 0-13.4 | |
| Reverse 3 | 0–29.8 | |
| Dimensions (L×W×H) (mm) | 8726×2600×3400 | |
| Minimum turning radius (mm) | 7800 | |
| Wheel base (mm) | 2155 | |
| Gradeability (°) | 20 | |
| Ma×imum traction (KN) | 81 | |
| Ma×imum cutting depth (mm) | 500 | |
| Operating weight (kg) | 15400 | |
| Blade width (mm) | 3660 | |
| Blade height (mm) | 635 | |
| Blade rotational angle (°) | 360 | |
| Ma×imum lifting height (mm) | 410 | |
| Blade cutting angle adjustment Range (°) | 44–91 | |
| Min. ground clearance (mm) | 430 | |
| Working hydraulic system pressure (MPa) | 16 | |
| Brake System Pressure (MPa) | 10 | |
Advantages
Cum-mins engine features reliable performances and high efficiency and energy-saving.
The 6-speed electronically controlled shift hydraulic transmission with Z-F technology features reasonable speed ratio distribution to ensure that the whole machine has three working gears at choice to ensure operating reliability and flexibility.
The box-type structure welded from integral plates features high strength.
The extern ring gear adopted features high transmitted torque, larger blade cutting angle, and better material handling capability and is especially useful while handling dry materials and clays.
Featuring simple operations and high impact resistance against external forces, it’s applicable for the working conditions with high operating volume and severe operating environment.
The international advanced hydraulic brake control technologies and international renowned hydraulic units are adopted to ensure braking safety and reliability.
The full-hydraulic front wheel steering equipped features small turning radius and high mobility and flexibility.
The high-grade full-sealed luxury cab with total visual field and the high-efficiency shock-absorbing seat maximize the operation comfort.
The cab and the main frame are connected by shock absorber to ensure the operating safety and reliability.
The standard high capacity heating and air conditioning system and the double-layer sealed side doors achieve <84dB noise and effectively reduce the labor strength of the operator.
The maintenance-free high performance battery is equipped.
The steel engine hood with four doors eases the maintenance and heat dissipation of the engine.
The hydraulic oil tank adopts the overhead dismountable filter element, featuring convenient repairs and maintenances.
The automatic leveling system can be additionally installed.
The special drive tires and the conventional tires are at your choice for the motor grader.

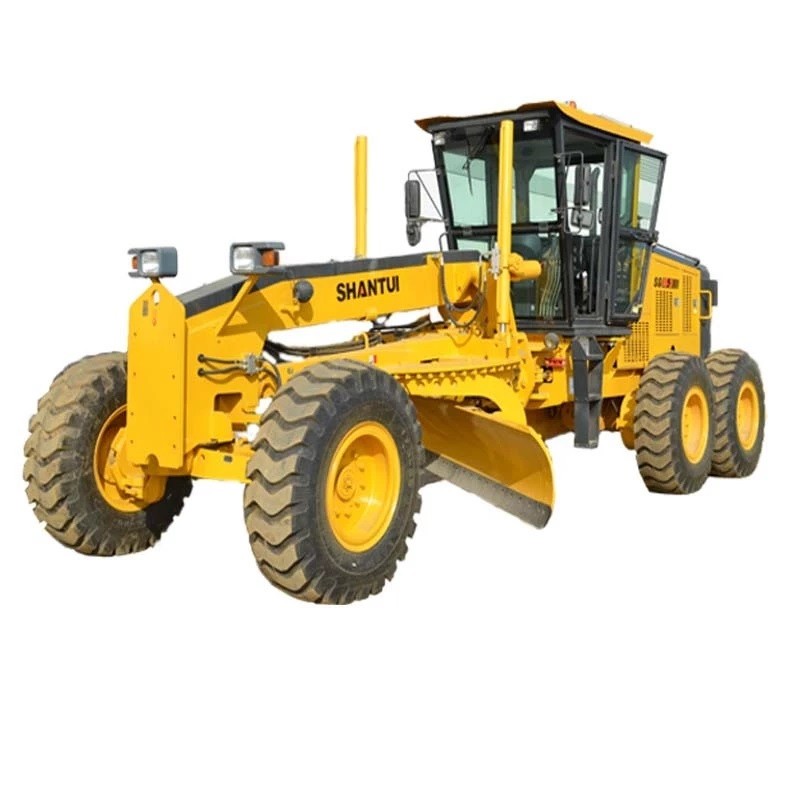

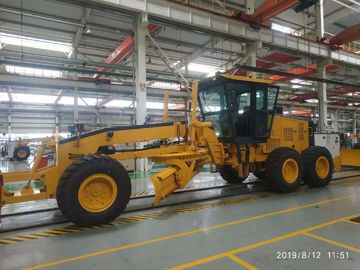

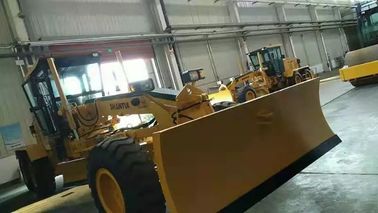

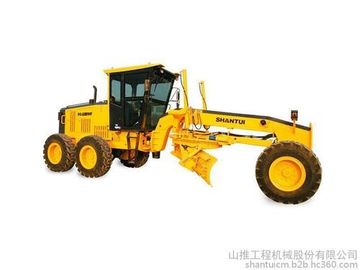

Product Picture
