| Place of Origin: | China |
| Brand Name: | XCMG |
| Certification: | ISO CCC |
| Model Number: | XE210E |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 pieces per month |
| Bucket Capacity:: | 1.2cbm | Operating Weight:: | 21000kg |
|---|---|---|---|
| Maximum Digging Depth:: | 6780mm | Condition:: | New |
| Power:: | 129kw | Ground Pressure:: | 45kpa |
| High Light: | road work equipment,road construction vehicles |
||

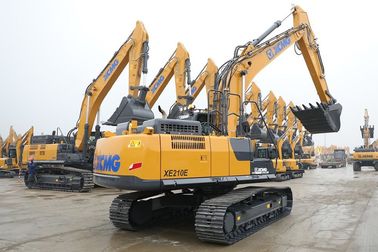

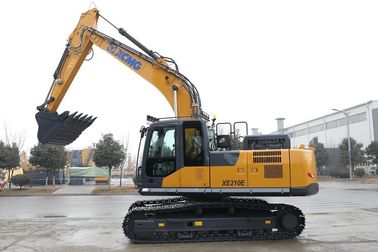

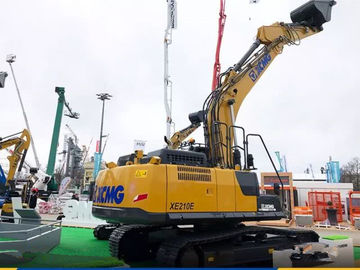

XCMG XE210E 21ton Crawler Hydraulic Excavator With Cummins QSB6.7 Engine
Advantages
1.New generation hydraulic system featured with energy conservation and high efficiency.
2. New cab featured with comfortable operation and safety.
3. By adopting high pressure common rail engine with low speed and large torque and new power matching mode, the operation efficiency is higher and oil consumption is lower.
4. Maintenance is fast and convenient. Maintenance period of engine filter element has been extended.
5. Working equipment is featured with high reliability and our own patent technology.
|
Item |
Unit |
Parameters |
|
|
Model |
Operating weight |
Kg |
21000-23000 |
|
Bucket capacity |
m³ |
1.2 |
|
|
Engine |
Model |
- |
Cummins QSB6.7 |
|
No. of cylinders |
- |
6 |
|
|
Rated power |
kw/rpm |
129/2100 |
|
|
Maximum torque/speed |
N.m |
800/1500 |
|
|
Displacement |
L |
6.7 |
|
|
Main performance |
Travel speed (H/L) |
km/h |
5.6/3.5 |
|
Swing speed |
r/min |
11.8 |
|
|
Gradeability |
° |
≤35 |
|
|
Ground pressure |
kPa |
45 |
|
|
Bucket digging force |
kN |
149 |
|
|
Arm digging force |
kN |
111 |
|
|
Maximum tractive force |
kN |
184 |
|
|
Hydraulic system |
Rated flow of main pump |
L/min |
2x225 |
|
Main safety valve pressure |
Mpa |
34.3/37 |
|
|
Travel system pressure |
Mpa |
34.3 |
|
|
Swing system pressure |
Mpa |
27.5 |
|
|
Pilot system pressure |
Mpa |
3.9 |
|
|
Oil capacity |
Fuel tank capacity |
L |
420 |
|
Hydraulic tank capacity |
L |
300 |
|
|
Engine oil capacity |
L |
24 |
|
|
Appearance size |
A Overall length |
mm |
10220 |
|
B Overall width |
mm |
2990 |
|
|
C Overall height |
mm |
3300 |
|
|
D Width of platform |
mm |
2830 |
|
|
E Track length |
mm |
4455 |
|
|
F Overall width of chassis |
mm |
2990 |
|
|
G Track shoe width |
mm |
600 |
|
|
H Wheel base of crawler |
mm |
3647 |
|
|
I Track gauge |
mm |
2390 |
|
|
J Counterweight clearance |
mm |
1053 |
|
|
K Minimum ground clearance |
mm |
485 |
|
|
L Minimum tail swing radius |
mm |
2985 |
|
|
M Track height |
mm |
810 |
|
|
Working range |
A Maximum digging height |
mm |
9620 |
|
B Maximum dumping height |
mm |
6780 |
|
|
C Maximum digging depth |
mm |
6680 |
|
|
D Maximum depth cut for 2240mm(8 ft) level bottom |
mm |
6500 |
|
|
E Maximum vertical wall digging depth |
mm |
5715 |
|
|
F Maximum digging radius |
mm |
9940 |
|
|
G Minimum swing radius |
mm |
3530 |
|
|
Standard |
Length of boom |
mm |
5680 |
|
Length of arm |
mm |
2910 |
|
|
Optional |
Length of arm |
mm |
2400 |
|
Bucket capacity |
m³ |
1.0(Rock bucket) |
|
|
1.14 (Strengthened bucket) |
|||
Presale Serivce:
Professional sales team supply personalized service according to customer's requirement.
Order operation:
We will start production of your order within 3 days with strict quality control.
Shipping:
According to different shipping requirements,our company logistics department will ship the machinery to you with our professional service. The necessary custom clearance documents such as contract, commercial invoice, packing list, certificate of origin will be sent to you.
After-sales Service:
Regularly callback to know the machinery working status and offer reasonable tech proposals.
Timely spare parts supply to guarantee machinery working continuously.
Our oversea engineers are ready all the time to serve.
1. Question: What's your payment term?
Answer: We accept T/T(30% down payment and balance before shipping) and L/C mostly. But if you prefer other payment terms please contact us for further information.
2. Question: How about the delivery time?
Answer: Fot the motor grader we will ship it in 30 days after down payment. And in one week if there are machinery in stock.
3. Whats's the warranty time?
Answer: We provide one year warranty for the machinery.
4. How do you offer the after sale service?
Answer: We offer after sale service life long. Engineers are available to go abroad for training and spare parts will be sent at the soonest.
Packing:
Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.Rich experience and well after-sale service.
