CE Approved 4 Ton Electric Lift Platform 4000kg Hydraulic Car Scissor Lift Table

CE Approved 4 Ton Electric Lift Platform 4000kg Hydraulic Car Scissor Lift Table

    • CE Approved 4 Ton Electric Lift Platform 4000kg Hydraulic Car Scissor Lift Table
    • CE Approved 4 Ton Electric Lift Platform 4000kg Hydraulic Car Scissor Lift Table
    • CE Approved 4 Ton Electric Lift Platform 4000kg Hydraulic Car Scissor Lift Table
  • CE Approved 4 Ton Electric Lift Platform 4000kg Hydraulic Car Scissor Lift Table

    Product Details:

    Place of Origin: China
    Brand Name: sun lift
    Certification: ISO9001 CE Certificate
    Model Number: SJG0.5-2.7

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: nude
    Delivery Time: 10-15days
    Payment Terms: T/T
    Supply Ability: 500 sets/month
    Contact Now
    Detailed Product Description
    Table Size: 2000x1300mm Weight: 500kg
    Overall Dimensions: 2000x1300x320mm Lifting Speed: 4-6m/min
    Control Mode: Electric Control
    High Light:

    shipping container handling equipment

    ,

    shipping container lifting equipment

    CE Approved China 4 Ton Electric Lift Platform Hydraulic Car Lift 4000kg Scissor Lift Table Hydraulic Scissor Lift




    Quick Details

    Condition:New

    Applicable Industries:Hotels, Building Material Shops, Manufacturing Plant, Retail, Construction works , Advertising Company

    Place of Origin:Shandong, China

    Brand Name:SUN-LIFT

    Lift Mechanism:Scissor Lift

    Lift Drive / Actuation:Hydraulic

    Power:2.2kw

    Min. Lifting Height:320mm

    Table Size:2000x1300mm

    Overall Dimensions:2000x1300x320mm

    Weight:500kg

    Certification:ISO9001 CE Certificate

    Warranty:12 months

    After-sales Service Provided:Free Spare Parts

    Product name:500Kg Scissor Lift Table Hydraulic Scissor Lift Manufacturer

    Upper platform:anti-skid checkered plate

    Application:load cargo in workshop warehouse

    Color:black, orange, red or as per demand

    Material:high Strength Manganese Steel

    Lifting speed:4-6m/min

    Control mode:electric control

    Control device:switch boxes and push button switch

    Paint:epoxy Paint

    Voltage:220v, 380v, 240v, 440v or as per demand



    Product Description



    Stationary scissor lift tabl can be installed on ground to load cargo and then lifts till a certain height for unloading the cargo. It can be also installed in a lift pit. Then platform table is at the same level with the ground which is convenient to load the cargo onto it. In this way it also can be called freight elevator. It adopst electric rise and down, which is much convenient.





    Main Features

    1) Platform table: anti-slip checkered steel plate
    2) Scissor structure: Manganese steel rectangular tube
    3) Control equipment : Delixi, Siemens or Schneider brand.
    4) Pump station: Italy Hydrappp or Sino-italian brand.
    5) Hydro cylinder:high precision wear-resisting hydraulic cylinder with locking device for fall protection.
    6) Obturating ring: Brand German Seal (made in German) or Japan VLQU Seal

    7) Electrical up-down control device, or manual control when the electricity Is not available.

    8) The remote control and multi-control points at the different floors could be realized at each control point.



    Specifications



    Specifications (Customizable)Of Stationary Scissor Lift Electric Goods Lift
    Model
    Table size
    Travel height
    Min. Height
    Rated capacity
    Overall size
    (LxWxH)
    SJG2-3.5
    2000x1500mm
    3500mm
    560mm
    2000kg
    2000X1500x560mm
    SJG5-5
    2800x2000mm
    5000mm
    1020mm
    5000kg
    2800x2000x1020mm
    SJG2.5-4
    3000x2400mm
    4000mm
    770mm
    2500kg
    3000x2400x770mm
    SJG1-2.9
    1400x750mm
    2900mm
    510mm
    1000kg
    1400x750x510mm
    SJG1-6
    1900x1100mm
    6000mm
    1100mm
    1000kg
    1900x1100x1100mm
    SJG1.5-3.8
    2200x2000mm
    3800mm
    700mm
    1500kg
    2200x2000x700mm
    SJG0.8-3.5
    1800x1200mm
    3500mm
    800mm
    800kg
    1800x1200x800mm
    SJG3.0-7
    3000x2500mm
    7000mm
    1080mm
    3000kg
    3000x2500x1080mm
    SJG2.0-
    2400x2000mm
    1100mm
    400mm
    2000kg
    2400x2000x780mm



    Product pictures

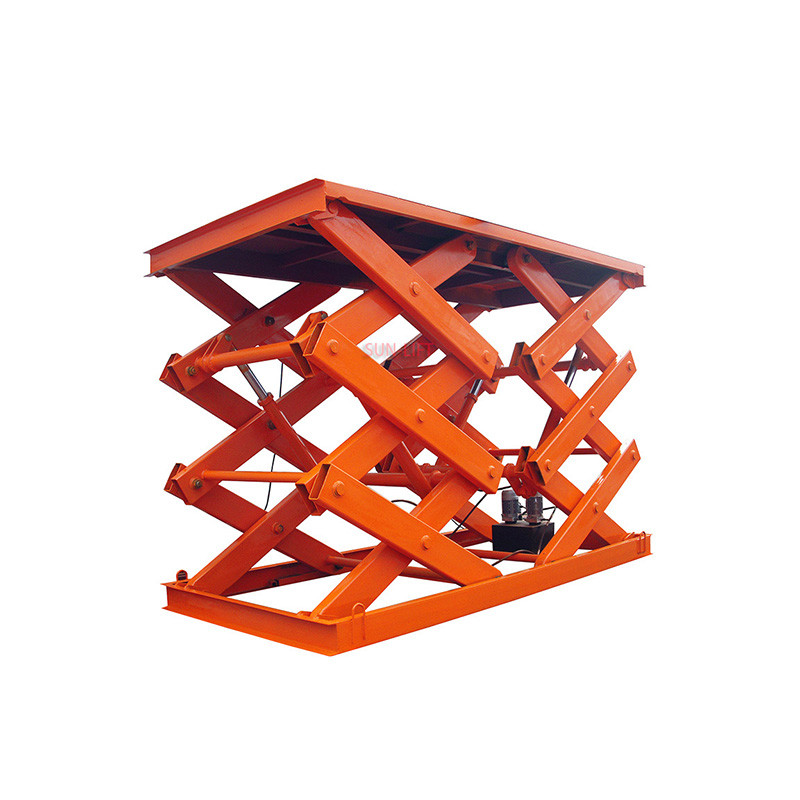

    CE Approved 4 Ton Electric Lift Platform 4000kg Hydraulic Car Scissor Lift Table 0CE Approved 4 Ton Electric Lift Platform 4000kg Hydraulic Car Scissor Lift Table 1CE Approved 4 Ton Electric Lift Platform 4000kg Hydraulic Car Scissor Lift Table 2CE Approved 4 Ton Electric Lift Platform 4000kg Hydraulic Car Scissor Lift Table 3CE Approved 4 Ton Electric Lift Platform 4000kg Hydraulic Car Scissor Lift Table 4CE Approved 4 Ton Electric Lift Platform 4000kg Hydraulic Car Scissor Lift Table 5CE Approved 4 Ton Electric Lift Platform 4000kg Hydraulic Car Scissor Lift Table 6
