35 Ton 42m³ Stainless Steel Jet Crude Oil Tanker / Fuel Tank Trailer

35 Ton 42m³ Stainless Steel Jet Crude Oil Tanker / Fuel Tank Trailer

  • 35 Ton 42m³ Stainless Steel Jet Crude Oil Tanker / Fuel Tank Trailer
  • 35 Ton 42m³ Stainless Steel Jet Crude Oil Tanker / Fuel Tank Trailer
  • 35 Ton 42m³ Stainless Steel Jet Crude Oil Tanker / Fuel Tank Trailer
  • 35 Ton 42m³ Stainless Steel Jet Crude Oil Tanker / Fuel Tank Trailer
35 Ton 42m³ Stainless Steel Jet Crude Oil Tanker / Fuel Tank Trailer
Product Details:
Place of Origin: China
Brand Name: CHUSHENG
Certification: CCC, ISO9001
Model Number: CSC20190809
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T
Supply Ability: 1000 Unit/Units per Month
Contact Now
Detailed Product Description
Max Payload: 35TONS Axle: 3 Axle, FUWA, BPW, HJ, L1 BRAND
Size: 11800*2500*3800 Axle Number: 2 3 4 Axles, Tri-axles
Braking System: WEBCO Optional Tank Volume: 30000L, 35000L, 40000L, 50000L Etc
Material: Aluminum / Alloy Transport: Oil, Diesel, Gasoline
High Light:

diesel semi trucks

,

low bed semi trailer

3 Axle 42m³ Stainless Steel Jet Crude Oil Tanker Fuel Tank Trailer

Product Description



1.Introduction of fuel tanker semi trailer

Fuel tank trailers Mainly used for oil derivatives’s (gasoline, diesel, crude oil, lubricating oil and coal tar oil) transport and storage.
Xiagong Chusheng (Hubei) Special Purpose Vehicle Manufacturing Co., Ltd. ,which is a famous manufacturer producing all kinds of special trucks.it can offer many kinds of oil tank trailers from 20000 liters to 70000 liters. Such as oil tank trailer, fuel tanker trailer, heavy oil tank trailer, fuel oil tank trailer, liquid tanker trailer, gallon fuel tank trailer, diesel oil tank trailer, oil transportation tank trailer, fuel tank cap trailer, etc. And also support Customized.



2.Countries which we exporting fuel tanker semi trailer

Africa and Asia are the two major exporting regions of our's. We mostly export our product to the following countries:



Tajikistan, Nigeria, Angola, Mongolia, Garner, Philippines, Kenya, Papua, New Guinea, Zimbabwe, Saudi Arabia, Congo, Laos, Kyrgyzstan, Owe Ning, Burma, Sultan, Indonesia, Zambia, Vietnam, Kazakhstan, Kampuchea, North Korea, Liberia, Algeria, Azerbaijan, Mexico, Uzbekistan, Maldives, Fiji, Namibia, The Democratic Republic of the Congo, Afghanistan, Chile, Equatorial Guinea, Mozambique, Djibouti, Peru Bolivia, Mauritanian, The Ivory Coast, Eritrea, Russia, Benin, Iraq, Brazil, Libya, Qatar, Vanuatu, Australia, Suriname, Iran, Cuba, Cameroon, New Zealand, The Marshall Islands, South Africa, Ethiopia, St. Kitts and Nevis, Sri Lanka, Niger, Malaysia, Trinidad and Tobago, Botswana.

3.Advantages of our fuel tanker semi trailer

  • Our company Xiagong Chusheng (Hubei) Special Purpose Vehicle Manufacturing Co., Ltd. has been manufactured fuel tanker semi trailer for decades and our products contain all kinds of special trucks.
  • Our company possesses some advanced technologies and mature craftworks.
  • fuel tanker semi trailers made by us have high quality and low price.
  • We can supply you with more than 20 types of fuel tanker semi trailers from 20000 liters to 70000 liters. Such as oil tank trailer, fuel tanker trailer, heavy oil tank trailer, fuel oil tank trailer, liquid tanker trailer, gallon fuel tank trailer, diesel oil tank trailer, oil transportation tank trailer, fuel tank cap trailer, etc. And also support Customized.

Product Parameter



Main Dimensions
Overall Length 11000mm
Overall Width 2500mm
Overall Height 3680mm
Tare Weight 7500KGS
Loading Capacity 35m3
Photo only for reference, final product can be made according to exact requirements
Tank Body
Shape Mono block Cylinder
Total Volume(m3) 35 CBM
Tanker Body Material 5mm stainless steel
End plate 6mm stainless steel
Lifting Ladder Including Top walkway and backside steel material
Manhole cover 2 manhole covers, DN500mm 2 sets with 2 breather valves
Bottom Valve 1 sets of API Pneumatic Bottom Valve
Top Safety Rail 1 Set
Discharging valve 2 set DN100mm discharging valves
No. of Compartment 2
Discharging Pipe 4”rubber hose, 2 pc, 6m long
Chassis
Main Beams Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation;
Axle 3 axles
FUWA 13 Ton
Landing Gear JOST brand Two-speed, manual operating, heavy duty landing gear
King Pin JOST brand 2” bolt-in king pin
Suspension German design heavy duty mechanical suspension
Pneumatic Braking System WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.
Wheel rim 9.00-22.5 wheel rim, 13 pieces including one spare
Tire 12R22.5 tubeless tire with one spare tire, 13 pieces
Painting Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint
Accessories One standard tool box

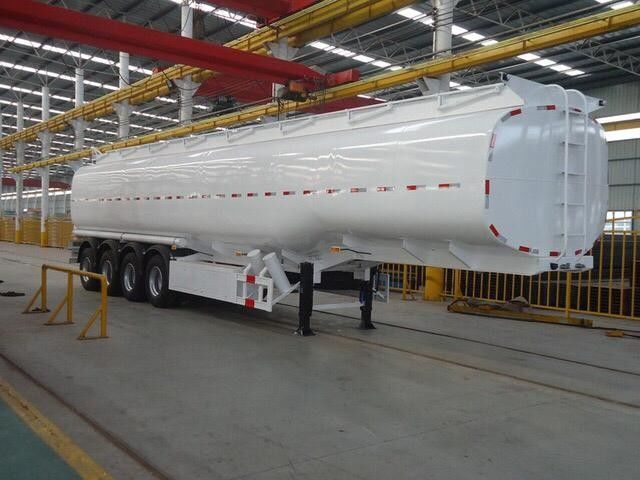

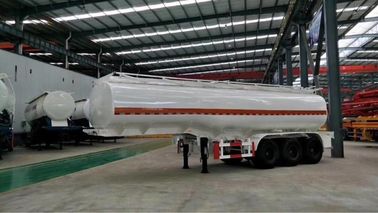

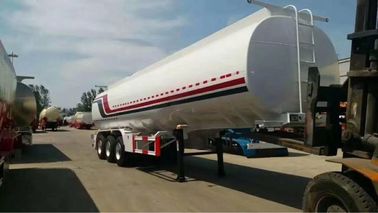

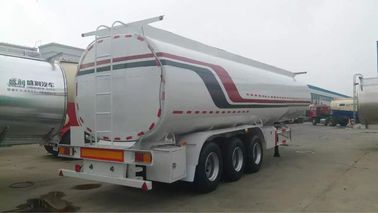

Product Picture



35 Ton 42m³ Stainless Steel Jet Crude Oil Tanker / Fuel Tank Trailer 035 Ton 42m³ Stainless Steel Jet Crude Oil Tanker / Fuel Tank Trailer 135 Ton 42m³ Stainless Steel Jet Crude Oil Tanker / Fuel Tank Trailer 235 Ton 42m³ Stainless Steel Jet Crude Oil Tanker / Fuel Tank Trailer 3
