| Place of Origin: | China |
| Brand Name: | SINOTRUK |
| Certification: | ISO/CCC |
| Model Number: | ZJ |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 units per month |
| Material: | Steel | Size: | 13000*3000*1650mm |
|---|---|---|---|
| Color: | Optional | Axle: | 13 Ton Fuwa Brand |
| Max Payload: | 60T | ||
| High Light: | diesel semi trucks,low bed semi trailer |
||
3 Axle 60Ton Extendable Low Bed Heavy Duty Semi Trailers With 13 Ton Fuwa Brand
Product description
Lowbed semi trailer is mainly used for transport of goods not spin, such as: tractors, loaders, excavators, bulldozers, etc., applied to many industries, for large cargo transportation is very convenient.With loading 30-200tons low bed semi trailer,can be provided based on client requirements.
More charactors
1.High quality steel makes trailer itself lighter but strong enough for heavy cargos, so that transport company can load more tons.
2.The welding machines and most skilled workers make welding of low bed trailer more frequent and strong.
3.Two pieces spare tire carriers, water tank, fuel tank etc, are optional accessories which build modern transportation.
4.We have standard low bed semi trailer which is with 3 axles and 60 tons loading capacity. Meanwhile, we can have your trailer customised with options.
Parameter
| are Weight | About 8.5-13T |
| Dimension | 13000-16000mm*3000mm-3500mm*1650mm |
| Loading Capacity (T) | 40T-60T |
| Axle | 13 T/16T, FUWA /BPW /Huajing Brand |
| Rim | 6.5-20/7.5-20/8.00-20/8.5-20 |
| Tire | 8.25R20/10.00R20/11.00R20/12.00R20 |
| Suspension |
Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) |
| Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
| King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
| Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
| Main beam |
Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm, down plate is 16mm-25mm ; Material is Q345B Steel . |
| Side beam | 16mm -25mm channel steel ( Material is Q235steel ). |
| Ladder | Manual or Hydraulic type |
| Gooseneck | For choose |
| Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand);Two pieces of 45L air tanks |
| ABS | Optional |
| Twist Locks | Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) |
| Valve | WABCO valve |
| Light | LED light |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |
Product Advantages
1. Heavy duty ladder, and extra support to prevent ladder from being broken when loading equipment.
2. Optional hydraulic ladder for more than 60 tons capacity,avoiding occupational injury when release ladder by manual operation.
3. Anti-slip strip on tail and rear of platform to ensure loading safely.
4. Optional landing gear under tail to ensure trailer to be stable when loading.
5. H-beam for side beam instead of channel steel.

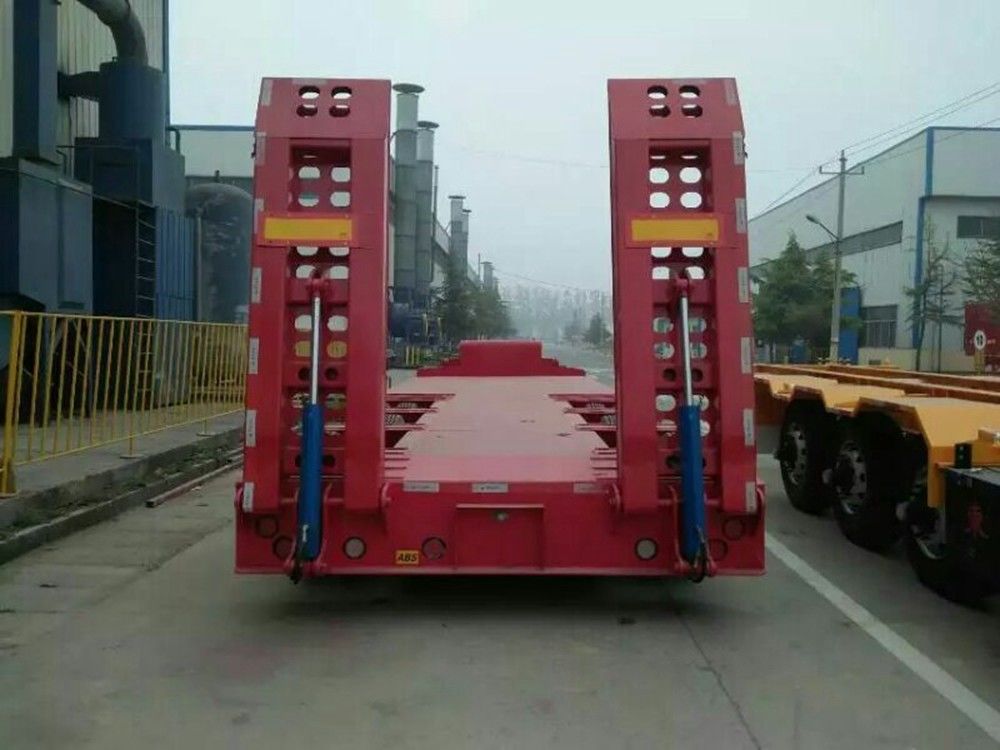

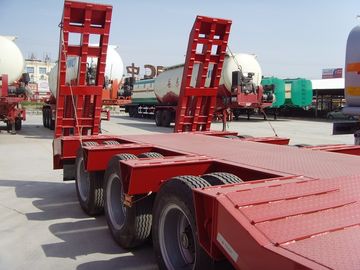

Product picture
