24 T 380Volt BZT600 Water Well Drilling Equipment / Rotary Drilling Rig

24 T 380Volt BZT600 Water Well Drilling Equipment / Rotary Drilling Rig

  • 24 T 380Volt BZT600 Water Well Drilling Equipment / Rotary Drilling Rig
  • 24 T 380Volt BZT600 Water Well Drilling Equipment / Rotary Drilling Rig
  • 24 T 380Volt BZT600 Water Well Drilling Equipment / Rotary Drilling Rig
24 T 380Volt BZT600 Water Well Drilling Equipment / Rotary Drilling Rig
Product Details:
Place of Origin: China
Brand Name: BZ
Certification: CCC/ISO
Model Number: BZT600
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Drilling Depth(m): 600 Meters Fuel Type: Diesel
Transportation Size: 12.5*2.5*4.2 M Voltage: 380V
Drilling Diameter: 500 Mm Weight: 24 T
High Light:

pile driving equipment

,

borehole drilling machine

BZT600 trailer mounted water well drilling machine rotary drilling rig a generator



Quick Details


Condition: New

Type: Rotary Drilling Rig

Power Type: Diesel

Place of Origin: Shandong, China (Mainland)

Brand Name: BINZUAN

Usage: Water Well

Voltage:380V or others

Dimension(L*W*H):12.5*2.5*4.2 m

Weight:24 T

Certification:ISO9001

Warranty:1 YEAR

After-sales Service Provided:Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas

Drill depth:600 meters

drill DI:500 mm

Product features


1. BZT600 water well drilling machine is installed on a trailer together with diesel generator, large displacement piston pump, double-hoist, turntable, drilling tower, auxiliary unloading cylinder and other components. It can be traction through tractor or truck. It is installed 4 hydraulic legs and 2 mechanical legs, every hydraulic leg rod with locknut. After leveling the rig, it can lock the cylinder use locknut. So, even if the cylinder leaks, the chassis is not instability.



2. This drilling rig BZT600 equipped with an auxiliary unloading cylinder, it can be used to promote the turntable ratchet, to achieve auxiliary unloading the drill pipe. The appearance of rig is pretty, it has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular with domestic and foreign clients.



1. BZT1500- trailer mounted drilling rig is designed by our engineers; it is adopt trailer mounted and is a rotary drilling rig.

2. This rig is a rotary drilling rig with directional circulation, which is equipped with BW1200/7 mud pump. It adopts the slurry as the washing fluid, it can drill on clay, sand and rock if it is equipped with a good drilling bit.

3. The power of drilling rig comes from the Diesel engine, the power is 269kw, the brand is Cummins; the rig sets up distribute implement and hydraulic system. The rig has three motors, and the force were sent to the transmission system, mud pump and hydraulic system.

4. BZT1500 trailer mounted drilling rig used K-type two paragraph telescopic drilling tower, the tower is lifted up by hydraulic cylinder. It is installed the lights on top, middle and bottom of the tower, in order to works at night. The tower exxective height is 16.5m, the bearing capacity not less than 60t.

5. It is installed 4 hydraulic legs and 2 mechanical legs, every hydraulic leg rod with locknut. After leveling the rig, it can lock the cylinder use locknut. So, even if the cylinder leaks, the chassis is not instability.

6. It is installed a generator (50kw) , so that it is convenient to illuminate or work at night.



Our customer all over the world



African countries:

Congo, Tanzania, Djibouti, Angola, Chad, Algeria, Sudan, Libya, Eritrea, Uganda, Rwanda, Burundi and the Seychelles. Mauritania, Western Sahara, Senegal, Gambia, Mali, Burkina Faso, Guinea, Guinea-Bissau, Cape Verde, Sierra Leone, Liberia, Côte d'Ivoire, Ghana, Togo, Benin, Niger, Nigeria , Namibia, Cameroon, Equatorial Guinea, Ethiopia, Kenya , Gabon and Zambia, Angola, Zimbabwe, Malawi, Mozambique, Botswana, and so on.



South America:
Colombia, Venezuela, Guyana, French Guiana, Suriname, Ecuador, Peru, Bolivia, Brazil, Chile, Argentina, Uruguay, Paraguay, Guatemala, Belize, El Salvador, Honduras, Nicaragua, Costa Rica, Panama, Antigua and Barbuda

South Pacific:
Papua New Guinea, Northern Mariana Islands, French Polynesia, Fiji, Guam, Heard and McDonald Islands, Kiribati, Cocos Islands, Cook Islands, Republic of the Marshall Islands, American Samoa, Microrony West Asia, Nauru, Niue, Norfolk Island, Palau, Pitcairn Islands, Samoa, Christmas Island, Solomon Islands, Tonga, Tuvalu, Tokelau, Wallis and Futuna, Vanuatu, New Caledonia.

Asia countries:
North Korea, Mongolia, including Vietnam, Laos, Cambodia, Myanmar, Thailand, Malaysia, Singapore, Indonesia, Philippines, Brunei, Sri Lanka, Maldives, Pakistan, India, Bangladesh, Nepal, Bhutan, Afghanistan, Iran, Azerbaijan, Armenia, Georgia, Turkey, Cyprus, Syria, Lebanon, Palestine, Jordan, Iraq, Kuwait, Saudi Arabia, Yemen, Oman, United Arab Emirates, Qatar, Bahrain, Turkmenistan, Uzbekistan, Kyrgyzstan, Tajikistan, Kazakhstan.



Technical parameter

Technical parameters
Drilling depth(M) 600
Drilling diameter(mm) 500
The capacity of main hoist(KN) 240
The capacity of assistant hoist(KN) 120
The height of tower(mm) 12000/15000
Bearing(KN) 300
Drill pipe(mm) 89×10
Diesel generator Model SGCG-200
Rated power(KW) 200
Frequency(Hz) 50



3NB piston pump

Rated flow(L/s) 8.4-16.6
Work pressure(MPa) 5-10
Working size(L*W*H)(mm) 15100×2480×14170(17170)
Transport size(L*W*H)(mm) 15100(16630)×2480×4100



Product picture

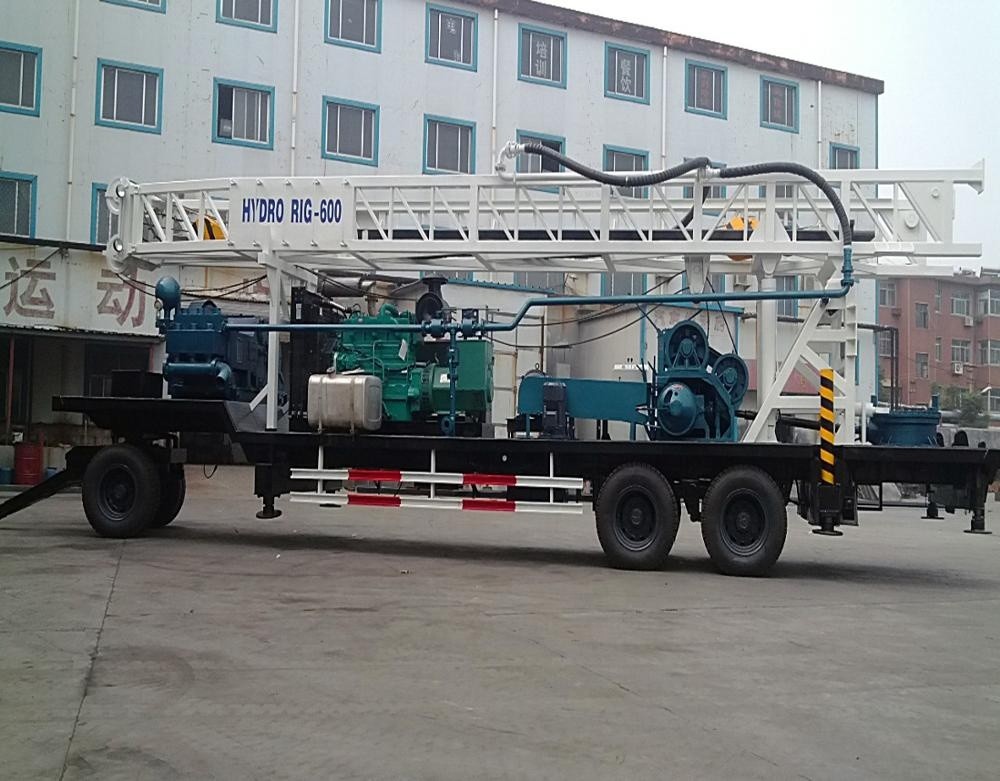

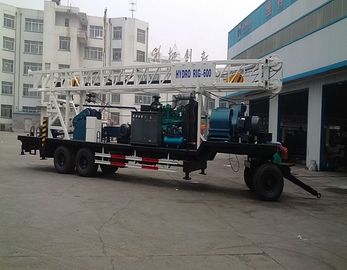

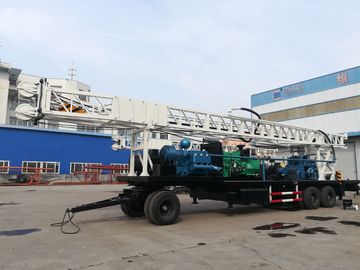

24 T 380Volt BZT600 Water Well Drilling Equipment / Rotary Drilling Rig 024 T 380Volt BZT600 Water Well Drilling Equipment / Rotary Drilling Rig 124 T 380Volt BZT600 Water Well Drilling Equipment / Rotary Drilling Rig 2
