|Place of Origin:||Shandong, China (Mainland)|
|Minimum Order Quantity:||1 set|
|Payment Terms:||T/T, L/C|
|Supply Ability:||2 Set/Sets per Quarter|
pile driving equipment,
borehole drilling machine

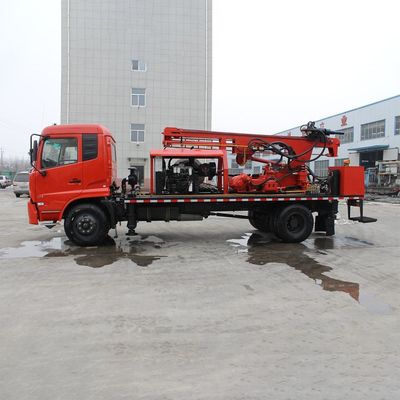

SLY-300 300m Depth truck mounted Pile Drilling Machine With 1 Year Warranty
Type: Rotary Drilling Rig
Power Type: Diesel
Place of Origin: Shandong, China (Mainland)
Brand Name: longye
Usage: Water Well
Warranty: main part one year
After-sales Service Provided: Engineers available to service machinery overseas
1. SLY300 truck mounted borehole water well drilling machine is designed by our engineers; it adopts truck mounted and is a rotary and DTH drilling rig.
The truck chassis adopts the special crane chassis of brand DONGFENG , the main transmit, transmission power, gearbox, .
2. The truck chassis is adopt th6×4 special chassis of brand SINOTRUK HOWO, the main transmit, transmission power, gearbox, sets of windlass, mud pump,mast are setup on the chassis.
3. This rig is a rotary drilling rig with directional circulation, which is equipped with BW850/20 mud pump. It adopts the slurry as the washing fluid, it can drill on clay, sand and rock if it is equipped with a good drilling bit.
4. The power of drilling rig comes from the extra CUMMINS diesel engine 6BTA-C150 112KW; the rig sets up distribute implement and hydraulic system
5. We set up a generator ( 30kw) , so that it is convenient to illuminate or work at night.
6. The adding pressure implement is hydraulic, so it has a high efficiency when the rig drill on mud rock and weathering formation through using the adding pressure implement.
7. The master driving of rig is mechanical, the four jacks and mast are hydraulic operated. Distribute box, sewage pump, master driving clutch system are air operated.
8. The appearance of rig is pretty. It has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working. It is popular with domestic and foreign clients.
|Drill rod length(m)||4.5|
|Drill rod diameter(mm)||89|
|Gear box||6 speed|
