BZT1500 Borehole Drilling Machine / Diesel Fuel Type Pile Drilling Equipment

BZT1500 Borehole Drilling Machine / Diesel Fuel Type Pile Drilling Equipment

  • BZT1500 Borehole Drilling Machine / Diesel Fuel Type Pile Drilling Equipment
  • BZT1500 Borehole Drilling Machine / Diesel Fuel Type Pile Drilling Equipment
  • BZT1500 Borehole Drilling Machine / Diesel Fuel Type Pile Drilling Equipment
BZT1500 Borehole Drilling Machine / Diesel Fuel Type Pile Drilling Equipment
Product Details:
Place of Origin: China
Brand Name: BZ
Certification: CCC/ISO
Model Number: BZT1500
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Drilling Depth(m): 800-1200-1500m Fuel Type: Diesel
Transportation Size: 15230*2790*4345 Mm Voltage: 380V
Drilling Diameter: 660 Mm Drill Rod: 3-1/2"; 4-1/2";5-1/2"
High Light:

pile driving equipment

,

borehole drilling machine

BZT1500 trailer mounted water well drilling rig borehole drilling machine rotary drilling rig



Quick Details


Condition: New

Type: Rotary Drilling Rig

Power Type: Diesel

Place of Origin: Shandong, China (Mainland)

Brand Name: BINZUAN

Usage: Water Well

Voltage :380V

Dimension(L*W*H):15230*2790*4345 mm

Weight:45000 kg

Certification:ISO9001:2008

Warranty:1 Year

After-sales Service Provided:Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas

Drilling depth:800-1200-1500m

Drilling diameter:660 mm

Product name:trailer mounted water well drilling rig BZT1000

drill rod:3-1/2"; 4-1/2";5-1/2"

Product features



1. BZT1500- trailer mounted drilling rig is designed by our engineers; it is adopt trailer mounted and is a rotary drilling rig.

2. This rig is a rotary drilling rig with directional circulation, which is equipped with BW1200/7 mud pump. It adopts the slurry as the washing fluid, it can drill on clay, sand and rock if it is equipped with a good drilling bit.

3. The power of drilling rig comes from the Diesel engine, the power is 269kw, the brand is Cummins; the rig sets up distribute implement and hydraulic system. The rig has three motors, and the force were sent to the transmission system, mud pump and hydraulic system.

4. BZT1500 trailer mounted drilling rig used K-type two paragraph telescopic drilling tower, the tower is lifted up by hydraulic cylinder. It is installed the lights on top, middle and bottom of the tower, in order to works at night. The tower exxective height is 16.5m, the bearing capacity not less than 60t.

5. It is installed 4 hydraulic legs and 2 mechanical legs, every hydraulic leg rod with locknut. After leveling the rig, it can lock the cylinder use locknut. So, even if the cylinder leaks, the chassis is not instability.

6. It is installed a generator (50kw) , so that it is convenient to illuminate or work at night.



Our customer all over the world



African countries:

Congo, Tanzania, Djibouti, Angola, Chad, Algeria, Sudan, Libya, Eritrea, Uganda, Rwanda, Burundi and the Seychelles. Mauritania, Western Sahara, Senegal, Gambia, Mali, Burkina Faso, Guinea, Guinea-Bissau, Cape Verde, Sierra Leone, Liberia, Côte d'Ivoire, Ghana, Togo, Benin, Niger, Nigeria , Namibia, Cameroon, Equatorial Guinea, Ethiopia, Kenya , Gabon and Zambia, Angola, Zimbabwe, Malawi, Mozambique, Botswana, and so on.



South America:
Colombia, Venezuela, Guyana, French Guiana, Suriname, Ecuador, Peru, Bolivia, Brazil, Chile, Argentina, Uruguay, Paraguay, Guatemala, Belize, El Salvador, Honduras, Nicaragua, Costa Rica, Panama, Antigua and Barbuda

South Pacific:
Papua New Guinea, Northern Mariana Islands, French Polynesia, Fiji, Guam, Heard and McDonald Islands, Kiribati, Cocos Islands, Cook Islands, Republic of the Marshall Islands, American Samoa, Microrony West Asia, Nauru, Niue, Norfolk Island, Palau, Pitcairn Islands, Samoa, Christmas Island, Solomon Islands, Tonga, Tuvalu, Tokelau, Wallis and Futuna, Vanuatu, New Caledonia.

Asia countries:
North Korea, Mongolia, including Vietnam, Laos, Cambodia, Myanmar, Thailand, Malaysia, Singapore, Indonesia, Philippines, Brunei, Sri Lanka, Maldives, Pakistan, India, Bangladesh, Nepal, Bhutan, Afghanistan, Iran, Azerbaijan, Armenia, Georgia, Turkey, Cyprus, Syria, Lebanon, Palestine, Jordan, Iraq, Kuwait, Saudi Arabia, Yemen, Oman, United Arab Emirates, Qatar, Bahrain, Turkmenistan, Uzbekistan, Kyrgyzstan, Tajikistan, Kazakhstan.



Technical parameter

Rotary table Inner diameter: 660mm
Drilling depth(m) 1500m 1200m 1000m
Pipe model(mm) φ89 φ114 φ127
The speed of turntable(rpm) 153,89,55,39
The max. torque of turntable(kn·m) 22
Hoist Main hoist Single rope lifting capacity of main hoist:90kN
Single rope speed of main hoist: 0.84, 1.90, 3.3m/s
Wire rope diameter: D-6×19 φ28mm
Assistant hoist Single rope lifting capacity of main hoist: : 50kN
Wire rope diameter: D-6×19 φ20mm
Diesel engine Model NTA855-C360
Rated speed(r/min) 2100
Power(kw) 269
Drilling tower Effective height(m) 16.5
Bearing capacity(t) 60
Kelly pipe(mm) 108×108×12500
Hook Bearing capacity(t) 60
Mud pump Model BW1200/7
Pressure(Mpa) 7.0
Theory of flow (L/min) 1200
Piston stroke(mm) 270
Piston diameter(mm) 160
Transport size(mm) 15230×2790×4345
Working size(mm) 15222×3800×20265
Speed 20 Km/h

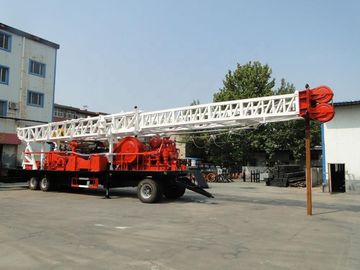

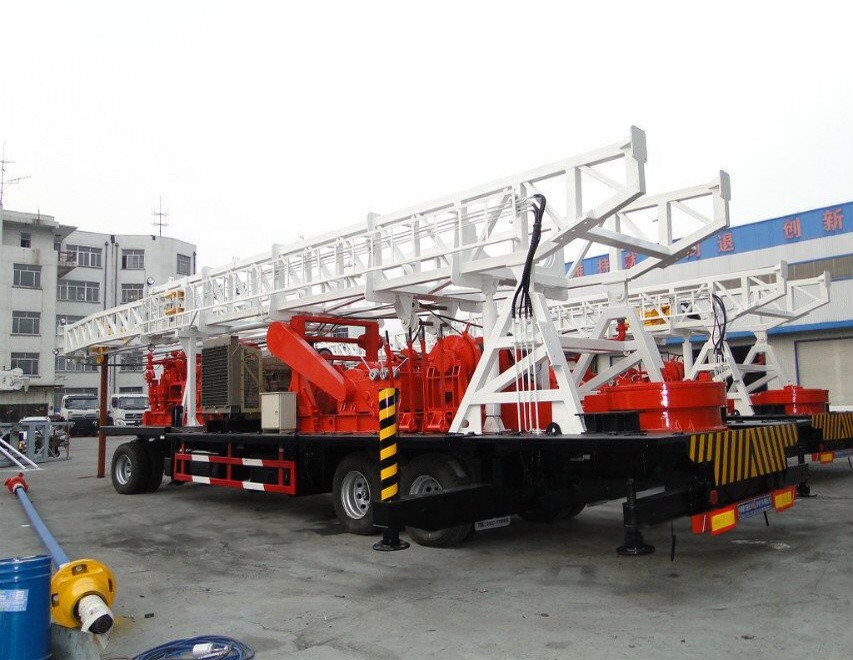

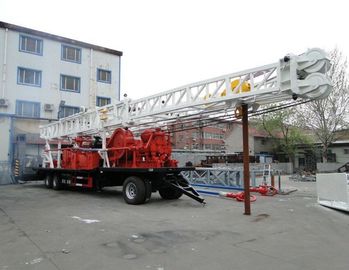

Product picture



BZT1500 Borehole Drilling Machine / Diesel Fuel Type Pile Drilling Equipment 0BZT1500 Borehole Drilling Machine / Diesel Fuel Type Pile Drilling Equipment 1BZT1500 Borehole Drilling Machine / Diesel Fuel Type Pile Drilling Equipment 2BZT1500 Borehole Drilling Machine / Diesel Fuel Type Pile Drilling Equipment 3
